Product Details
| Description The EMIF06-MSD02N16 is a highly integrated device designed to suppress EMI/RFI noise for interface line filtering. It is packaged in micro QFN. This filter includes ESD protection circuitry, which prevents damage to the protected device when subjected to ESD surges. Features ■ High design flexibility ■ Lead free package ■ Very low PCB space consumption: 3.5 mm x 1.2 mm ■ Very thin package: 0.5 mm ■ High efficiency in ESD suppression ■ IEC 61000-4-2 level 4 ■ High reliability offered by monolithic integration ■ High reduction of parasitic elements through integration and µQFN packaging Applications ■ Mobile telephones, ■ Navigation systems ■ Digital still cameras ■ Portable devices. |
Product Description
| Type | Description |
| ANSC PART# | ANSC -EMIF06-MSD02N16 |
| Category | Filters |
| EMI/RFI Filters (LC, RC Networks) | |
| Manufacturer | / |
| Series | IPAD™ |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| / | |
| Part Status | Active |
| Type | Low Pass |
| Filter Order | 2nd |
| Technology | RC (Pi) |
| Number of Channels | 6 |
| Center / Cutoff Frequency | - |
| Attenuation Value | - |
| Resistance - Channel (Ohms) | 45 |
| Values | R = 45Ohms, C = 20pF (Total) |
| ESD Protection | Yes |
| Operating Temperature | -30°C ~ 85°C |
| Applications | Data Lines for Mobile Devices |
| Voltage - Rated | - |
| Mounting Type | Surface Mount |
| Package / Case | 16-UFDFN Exposed Pad |
| Size / Dimension | 0.138" L x 0.047" W (3.50mm x 1.20mm) |
| Height | 0.022" (0.55mm) |
| Base Product Number | EMIF06 |

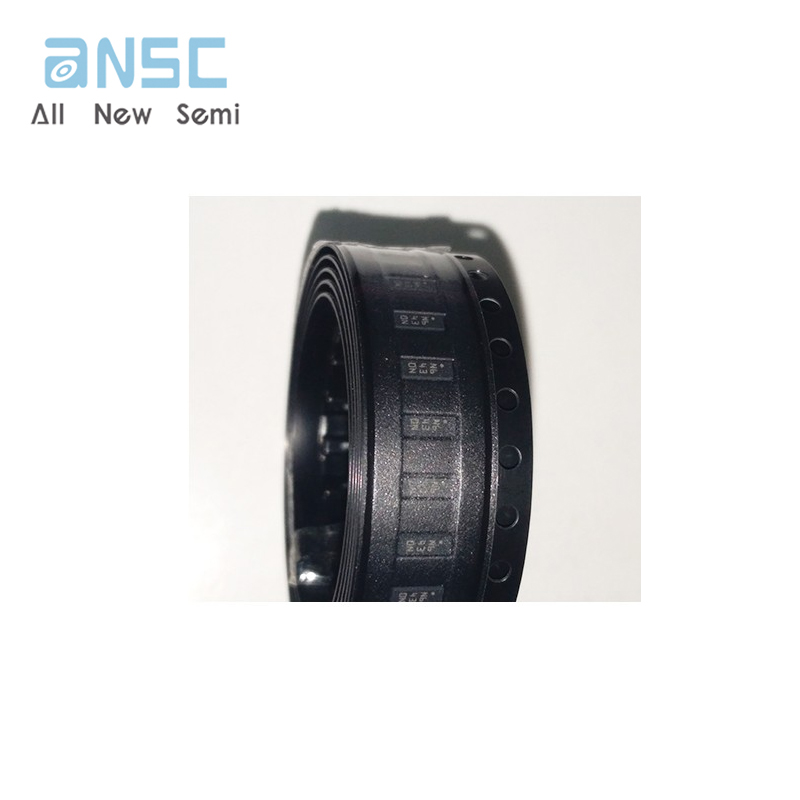

Actual image of the product

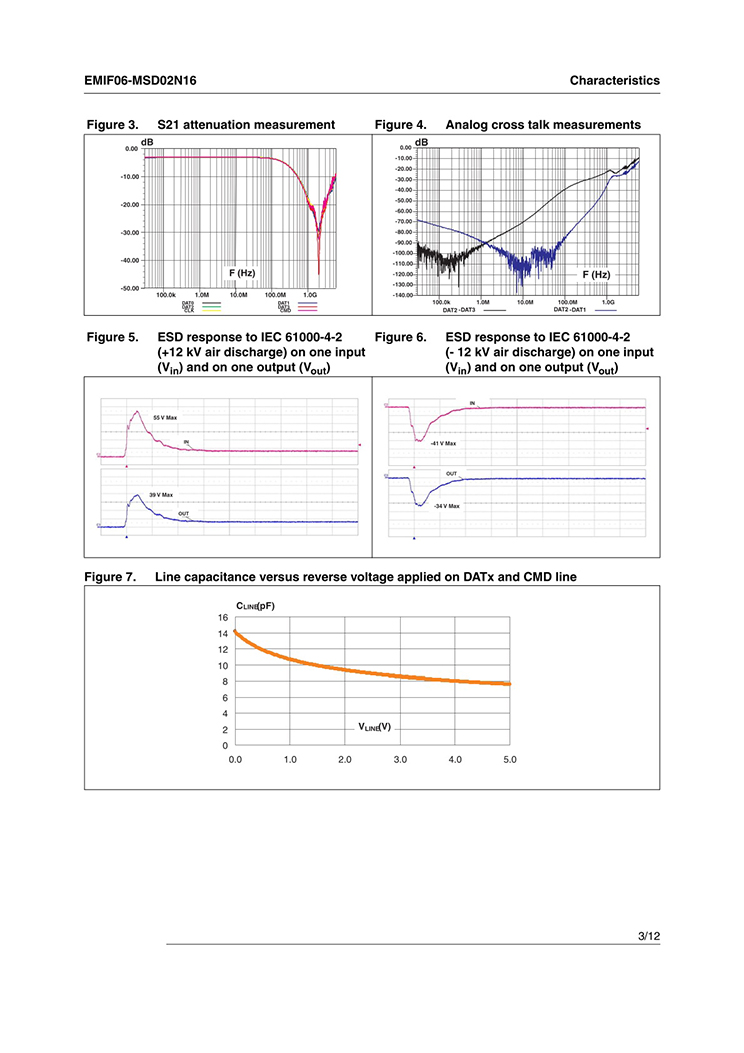

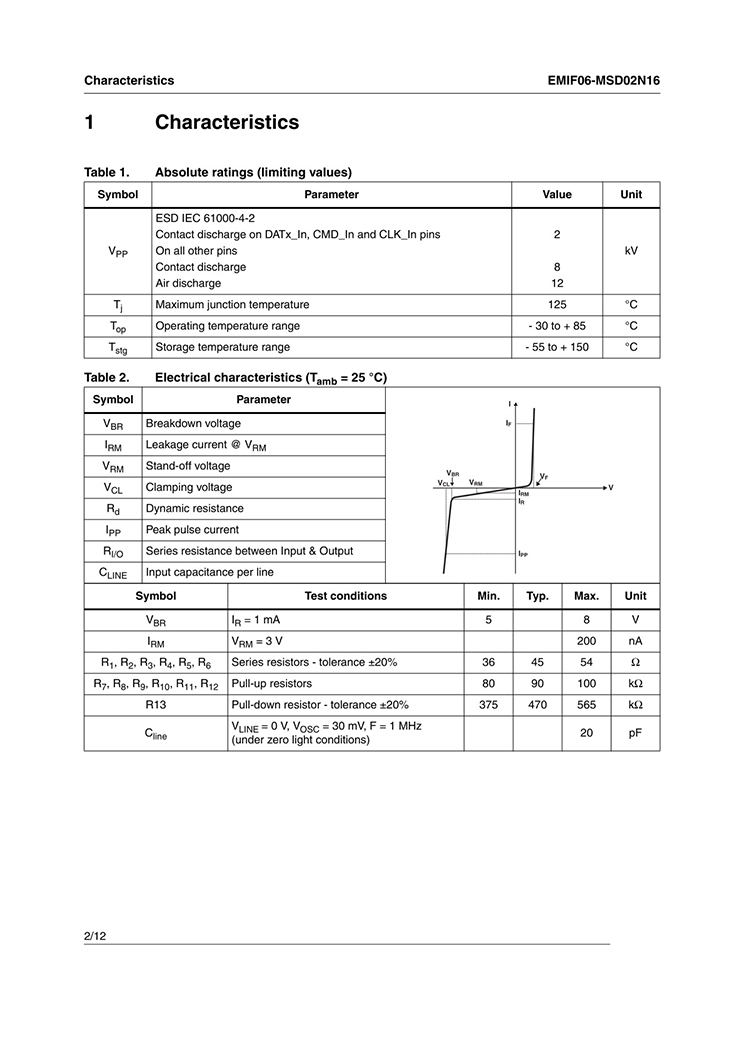

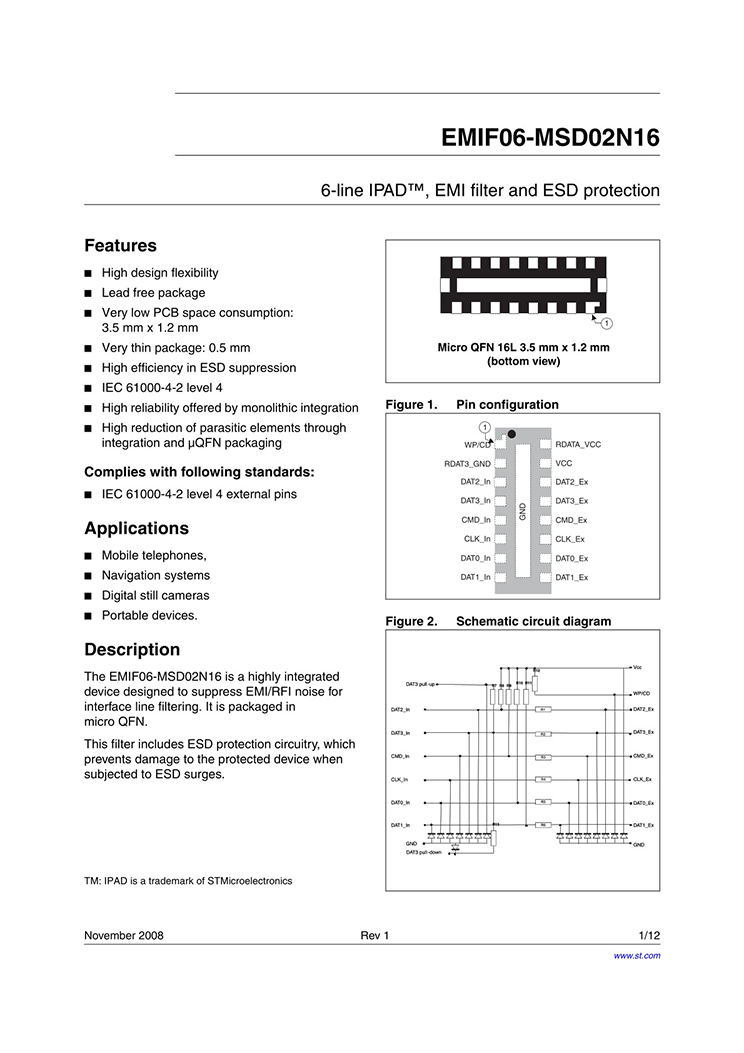

Product datasheet
