Product Details
| N - CHANNEL ENHANCEMENT MODE POWER MOS TRANSISTOR ■ TYPICAL RDS(on)= 0.045Ω ■ AVALANCHE RUGGED TECHNOLOGY ■ 100 AVALANCHE TESTED ■ REPETITIVE AVALANCHE DATA AT 100oC ■ LOW GATE CHARGE ■ HIGH CURRENT CAPABILITY ■ LOGIC LEVEL COMPATIBLE INPUT ■ 175oC OPERATING TEMPERATURE ■ APPLICATION ORIENTED CHARACTERIZATION APPLICATIONS ■ HIGH CURRENT, HIGH SPEED SWITCHING ■ SOLENOID AND RELAY DRIVERS ■ REGULATORS ■ DC-DC & DC-AC CONVERTERS ■ MOTOR CONTROL, AUDIO AMPLIFIERS ■ AUTOMOTIVE ENVIRONMENT (INJECTION, ABS, AIR-BAG, LAMPDRIVERS, Etc.) |
Product Description
| Type | Description |
| ANSC PART# | ANSC-STP33N10FI |
| Ihs Manufacturer | Original |
| Part Package Code | TO-220AB |
| Package Description | ISOWATT220, 3 PIN |
| Pin Count | 3 |
| Avalanche Energy Rating (Eas) | 240 mJ |
| Case Connection | ISOLATED |
| Configuration | SINGLE WITH BUILT-IN DIODE |
| DS Breakdown Voltage-Min | 100 V |
| Drain Current-Max (ID) | 18 A |
| Drain-source On Resistance-Max | 0.06 Ω |
| FET Technology | METAL-OXIDE SEMICONDUCTOR |
| Feedback Cap-Max (Crss) | 100 pF |
| Number of Elements | 1 |
| Number of Terminals | 3 |
| Operating Mode | ENHANCEMENT MODE |
| Operating Temperature-Max | 175 °C |
| Package Body Material | PLASTIC/EPOXY |
| Package Shape | RECTANGULAR |
| Package Style | FLANGE MOUNT |
| Polarity/Channel Type | N-CHANNEL |
| Power Dissipation Ambient-Max | 40 W |
| Power Dissipation-Max (Abs) | 45 W |
| Pulsed Drain Current-Max (IDM) | 132 A |
| Qualification Status | Not Qualified |
| Surface Mount | NO |
| Terminal Finish | TIN LEAD |
| Terminal Form | THROUGH-HOLE |
| Terminal Position | SINGLE |
| Transistor Application | SWITCHING |
| Transistor Element Material | SILICON |
| Turn-on Time-Max (ton) | 105 ns |

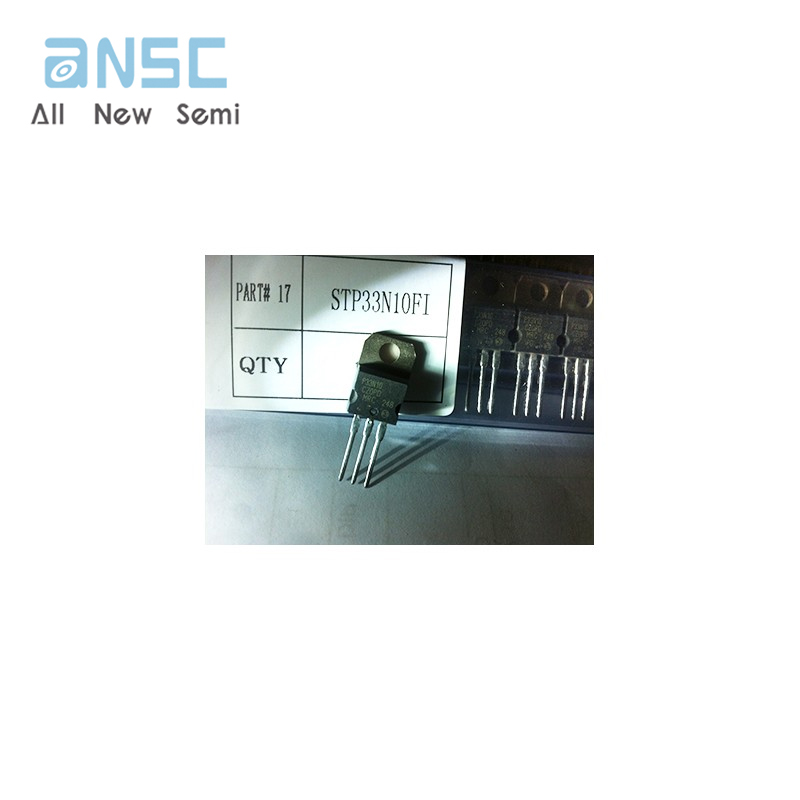

Actual image of the product

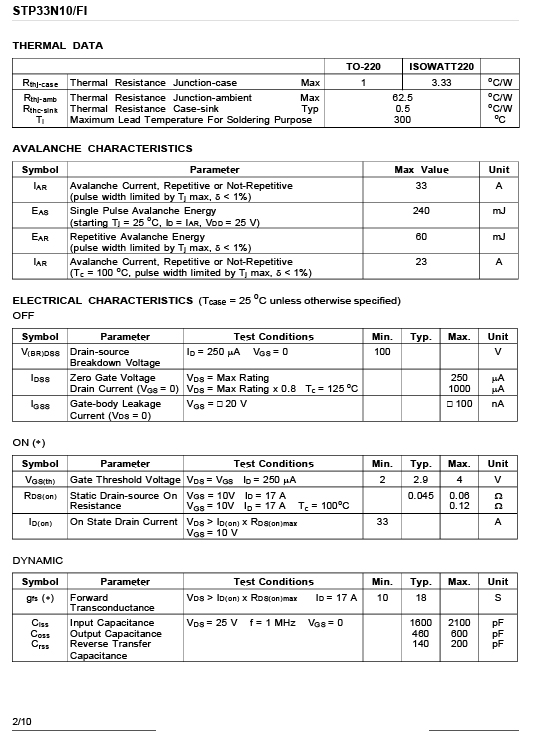

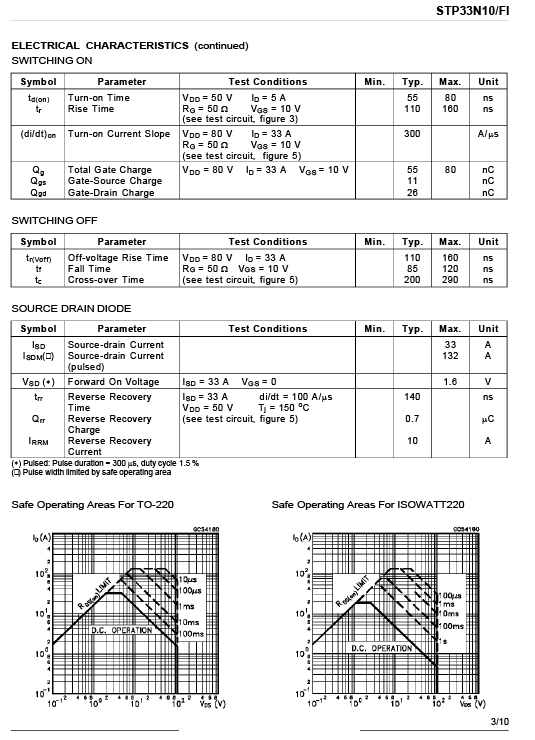

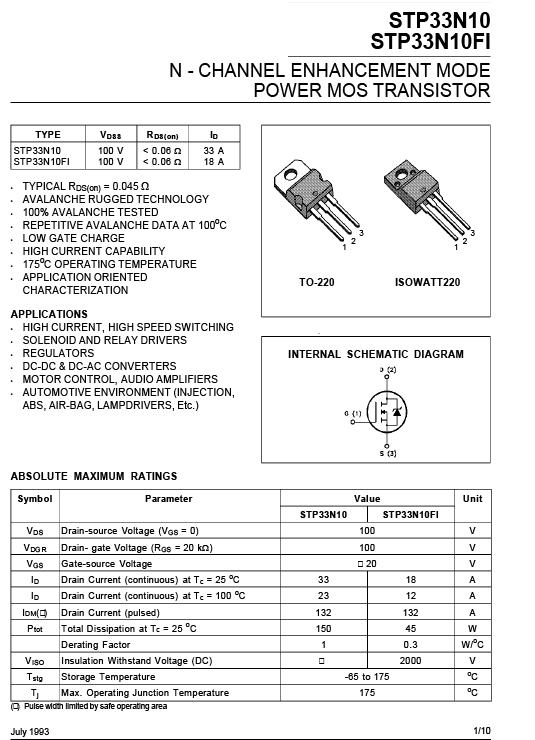

Product datasheet
For more information, please download
