Product Details
| General Description The AOZ8212 is a two-line bi-directional transient voltage suppressor diode designed to protect voltage sensitive electronics from high transient conditions and ESD. This device incorporates two TVS diodes in a small SOT-23 package. It may be used to meet the ESD immunity requirements of IEC 61000-4-2, Level 4 (± 15 kV air, ± 8 kV contact discharge). The AOZ8212 comes in a SOT-23 package and is rated over a -40 °C to +85 °C ambient temperature range. Features ● ESD protection for high-speed data lines: AOZ8212CI-05L – Exceeds: IEC 61000-4-2 (ESD) ± 30 kV (air), ± 30 kV (contact) – Human Body Model (HBM) ± 30 kV – IEC 61000-4-5 (Lightning) 9 A (8/20 µs) AOZ8212CI-12 – Exceeds: IEC 61000-4-2 (ESD) ± 30 kV (air), ± 30 kV (contact) – Human Body Model (HBM) ± 30 kV – IEC 61000-4-5 (Lightning) 5 A (8/20 µs) AOZ8212CI-24 – Exceeds: IEC 61000-4-2 (ESD) ± 18 kV (air), ± 15 kV (contact) – Human Body Model (HBM) ± 15 kV – IEC 61000-4-5 (Lightning) 2.5A (8/20 µs) ● Small package saves board space ● IEC 61000-4-4 (EFT) ± 40A ● Low insertion loss ● Low clamping voltage ● Low operating voltages: 5 V, 12 V, 24 V Applications ● Portable handheld devices ● Keypads, data lines, buttons ● Notebook computers ● Digital Cameras ● Portable GPS ● MP3 players |
Product Description
| Type | Description |
| ANSC PART# | ANSC- AOZ8212CI-05L |
| Category | Circuit Protection |
| Transient Voltage Suppressors (TVS) | |
| TVS Diodes | |
| Mfr | Original |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Part Status | Obsolete |
| Type | Zener |
| Bidirectional Channels | 2 |
| Voltage - Reverse Standoff (Typ) | 5V (Max) |
| Voltage - Breakdown (Min) | 7V |
| Voltage - Clamping (Max) @ Ipp | 15V |
| Current - Peak Pulse (10/1000µs) | 5A (8/20µs) |
| Power - Peak Pulse | 125W |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | 3.5pF @ 1MHz |
| Operating Temperature | -40°C ~ 85°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | SOT-23A-3 |
| Base Product Number | AOZ8212 |

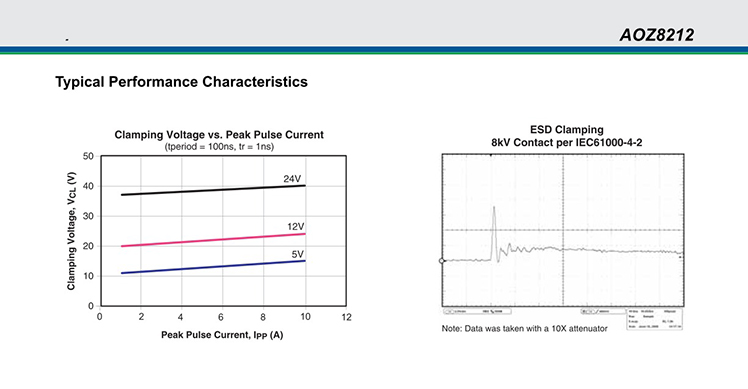

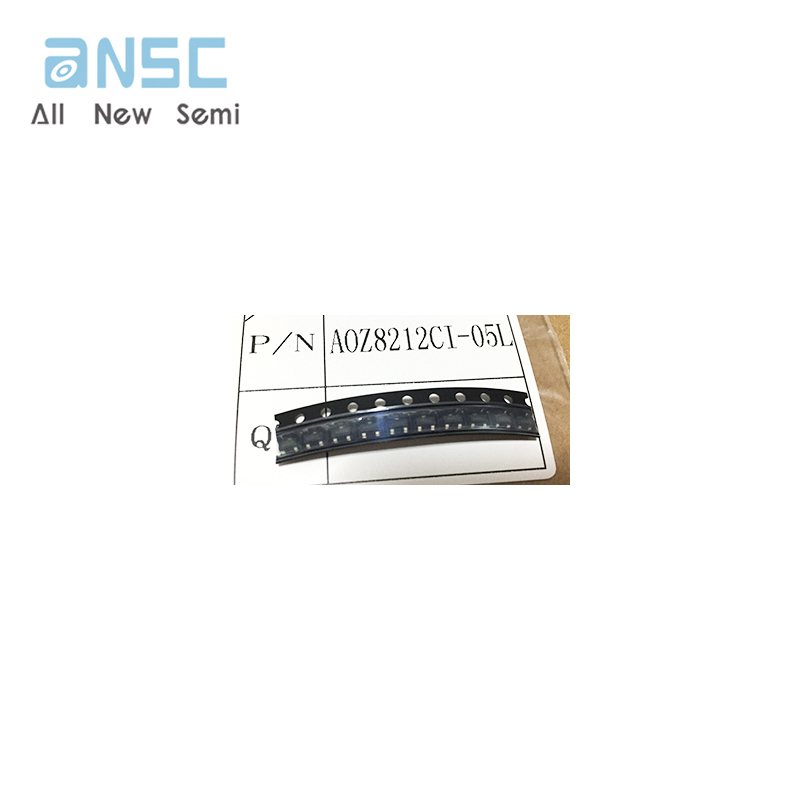

Product Photos

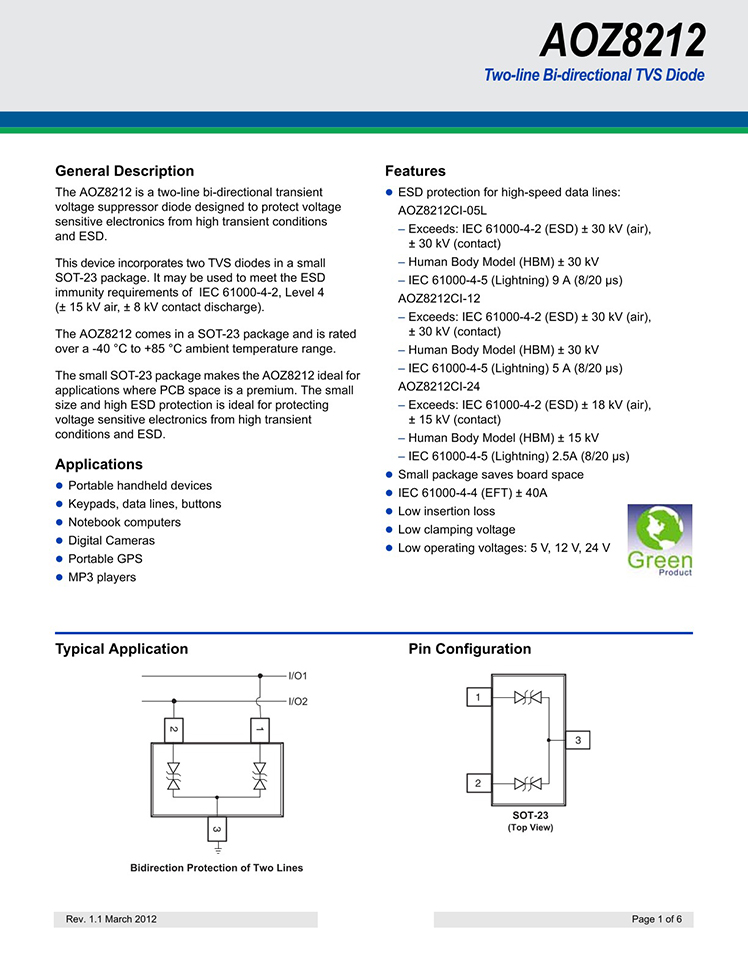

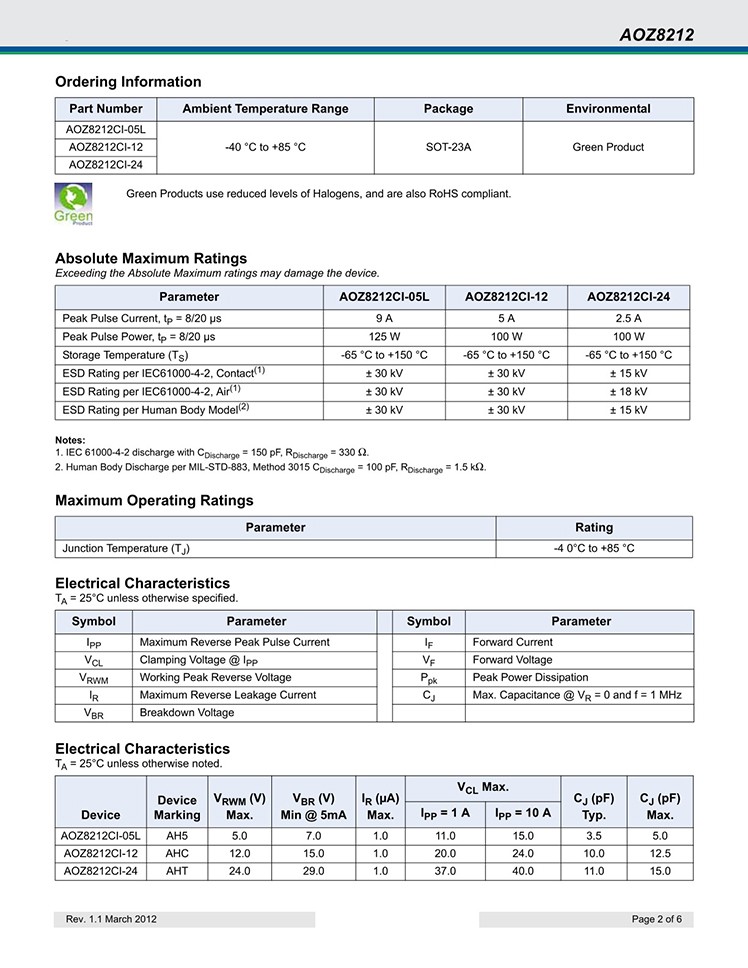

Product datasheet
