Product Details
VOLTAGE RANGE 5000 to 16000 Volts CURRENT 0.35 Amperes
FEATURES
* Low cost
* Low leakage
* Isolated case
* Surge overload rating - 50 amperes peak
* Mounting position: Any
* Low forward voltage drop
Product Description
| Type# | Description |
| ANSC PART# | ANSC-HVM10 |
| Manufacturer |
/ |
| Application | GENERAL PURPOSE |
| Breakdown Voltage-Min | 10000 V |
| Case Connection | ISOLATED |
| Configuration | SINGLE |
| Diode Element Material | SILICON |
| Diode Type | RECTIFIER DIODE |
| Forward Voltage-Max (VF) | 14 V |
| Moisture Sensitivity Level | 1 |
| Non-rep Pk Forward Current-Max | 50 A |
| Number of Elements | 1 |
| Number of Phases | 1 |
| Number of Terminals | 2 |
| Operating Temperature-Max | 150 °C |
| Operating Temperature-Min | -20 °C |
| Output Current-Max | 0.35 A |
| Package Body Material | PLASTIC/EPOXY |
| Package Shape | ROUND |
| Package Style | LONG FORM |
| Peak Reflow Temperature (Cel) | 260 |
| Qualification Status | Not Qualified |
| Rep Pk Reverse Voltage-Max | 10000 V |
| Reverse Current-Max | 5 µA |
| Reverse Test Voltage | 10000 V |
| Surface Mount | NO |
| Terminal Finish | MATTE TIN |
| Terminal Form | UNSPECIFIED |
| Terminal Position | AXIAL |

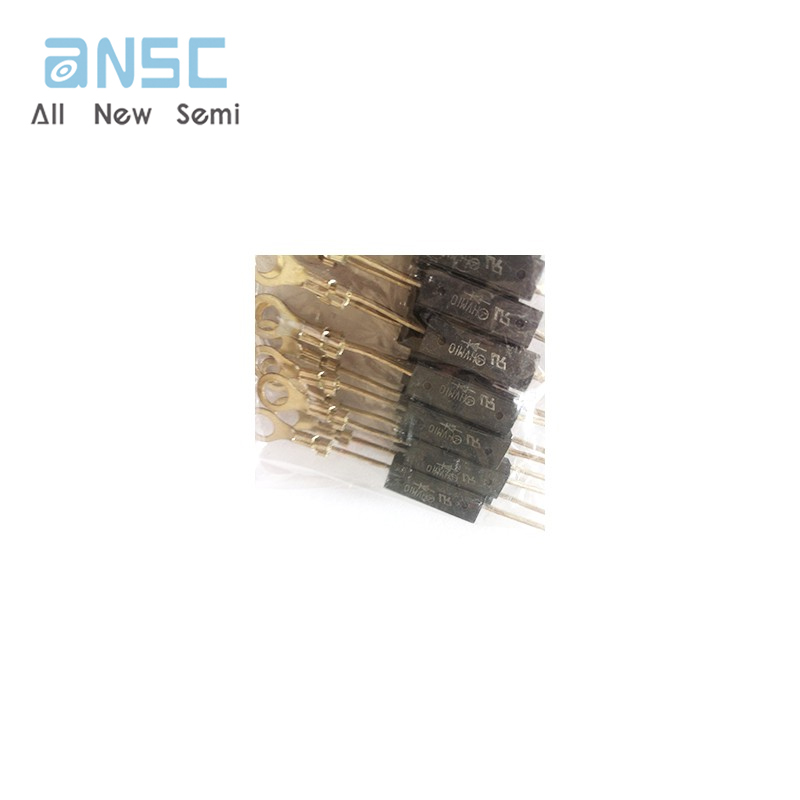

Actual image of the product

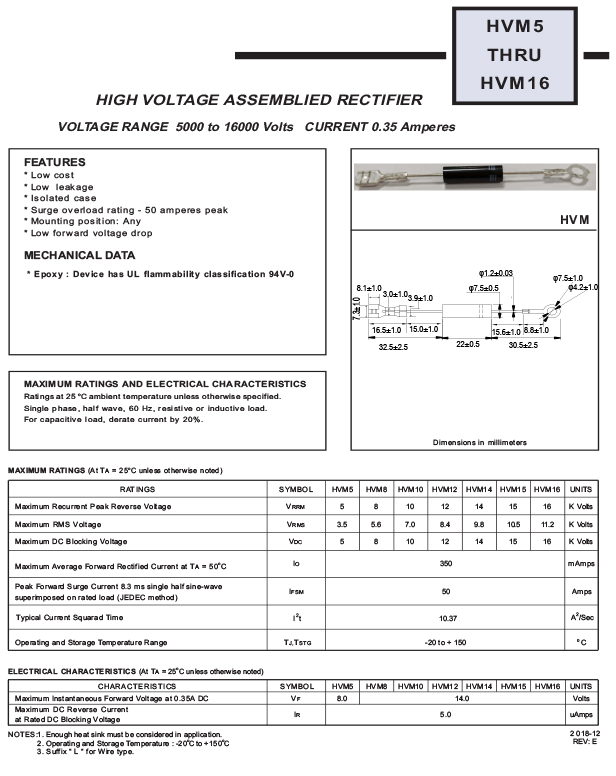

Product datasheet
For more information, please download
