Product Details
|
Description These solid state display devices are designed and tested for use in adverse industrial environments. The character height is 7.4 mm (0.29 inch). The numeric and hexadecimal devices incorporate an on-board IC that contains the data memory, decoder and display driver functions. The numeric devices decode positive BCD logic into characters “0-9”, a “–” sign, decimal point, and a test pattern. The hexadeci mal devices decode positive BCD logic into 16 characters, “0-9, A-F.” An input is provided on the hexa decimal devices to blank the display (all LEDs off) without losing the contents of the memory. Features • Three Colors High-Efficiency Red Yellow High Performance Green • Two High-Efficiency Red Options Low Power High Brightness • Three Character Options Numeric Hexadecimal Over Range • Performance Guaranteed over Temperature • Memory Latch/Decoder/Driver TTL Compatible • 4 x 7 Dot Matrix Character • Categorized for Luminous Intensity • Yellow and Green Categorized for Color Typical Applications • Industrial Equipment • Computer Peripherals • Instrumentation • Telecommunication Equipment |
Product Description
| Type | Description |
| ANSC PART# | ANSC - HDSP-0762 |
| Category | Optoelectronics |
| LED Character and Numeric | |
| Manufacturer | Original |
| Series | HDSP-076x |
| Packaging | Tray |
| Part Status | Active |
| Number of Characters | 1 |

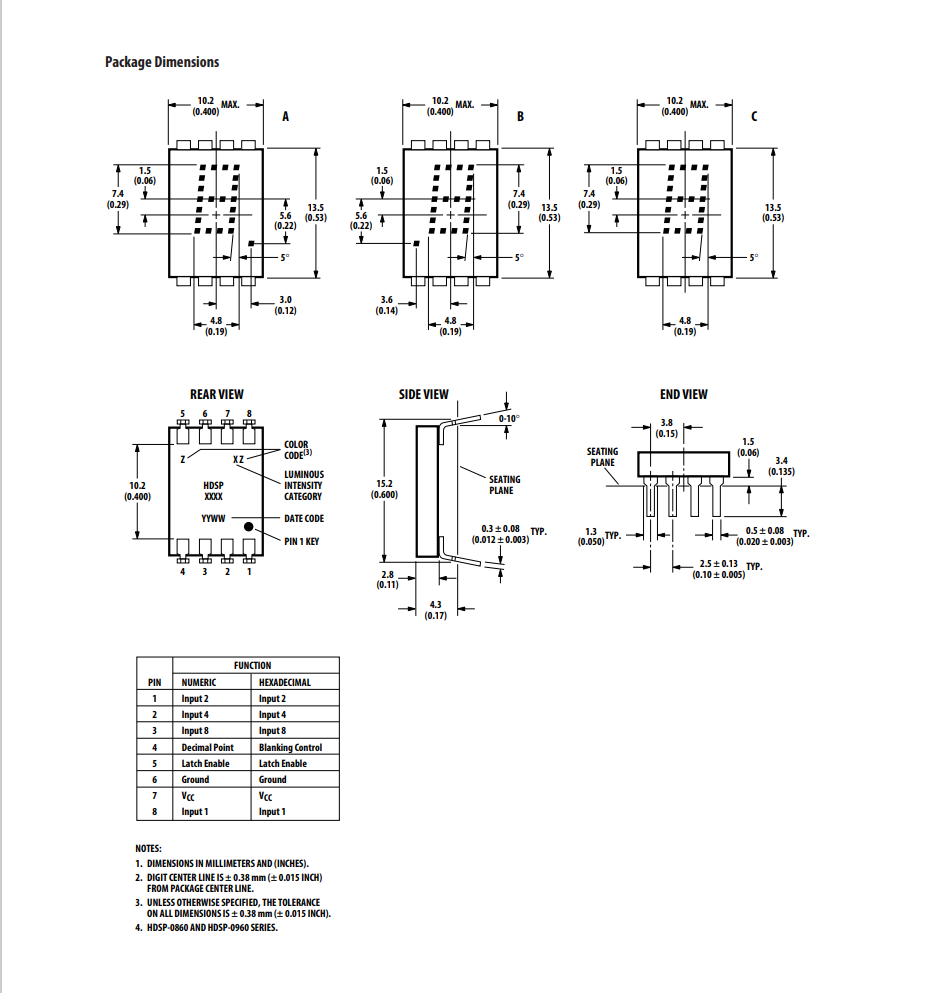

| Size / Dimension | 0.531" H x 0.402" W x 0.169" D (13.50mm x 10.20mm x 4.30mm) |
| Digit/Alpha Size | 0.29" (7.37mm) |
| Display Type | 7-Segment, Hexadecimal |
| Common Pin | Common Anode |
| Color | Red |
| Voltage - Forward (Vf) (Typ) | - |
| Current - Test | 10mA |
| Millicandela Rating | 0.14mcd |
| Wavelength - Peak | 635nm |
| Power Dissipation (Max) | 573mW |
| Package / Case | 8-DIP (0.600", 15.20mm) |
| Base Product Number | HDSP-07 |

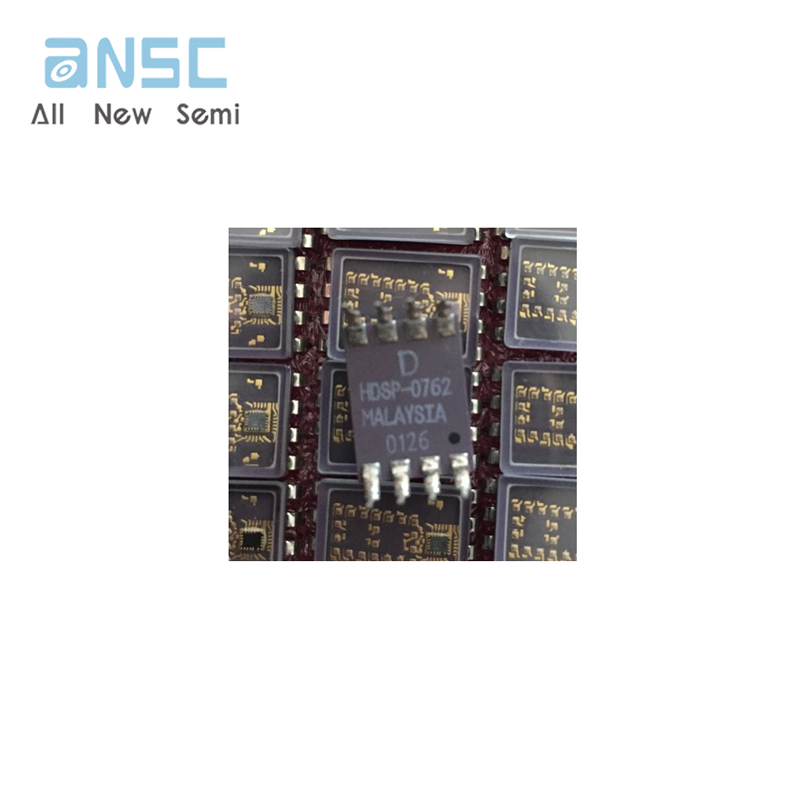

Actual image of the product

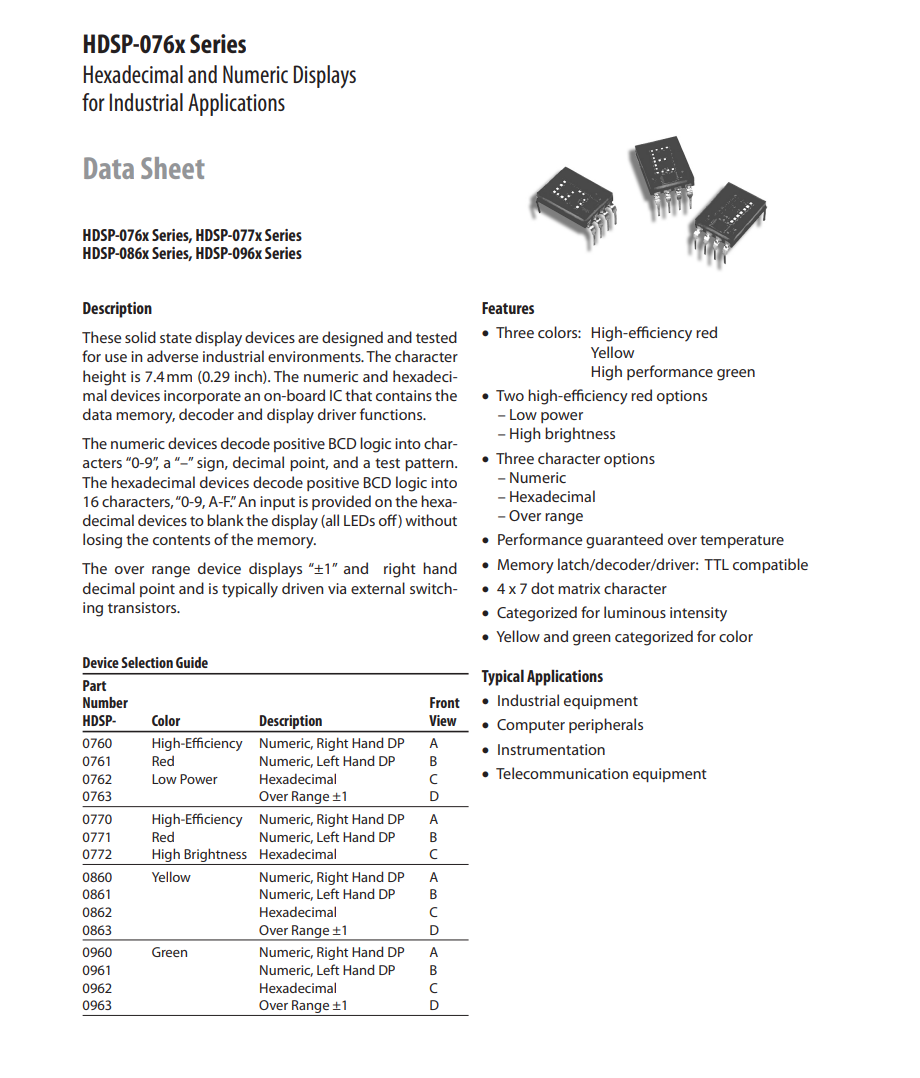

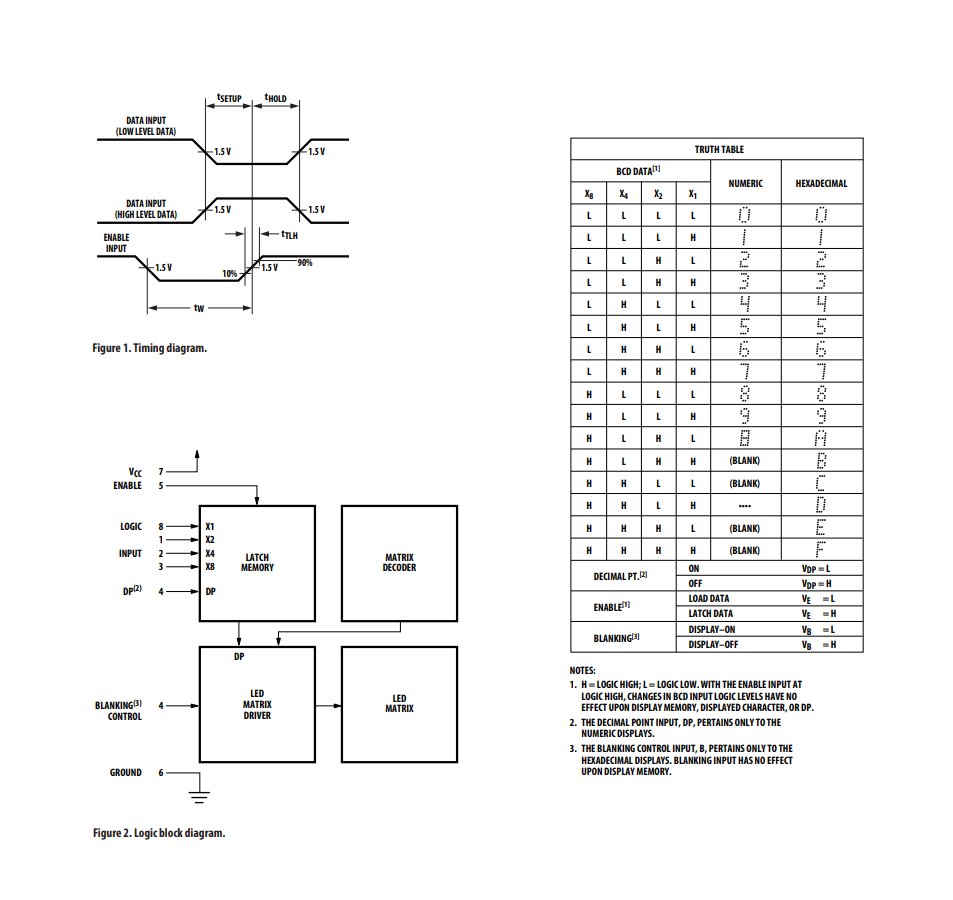

Product datasheet
For more information, please download
