Product Description
| Type | Description |
| ANSC PART# | ANSC- SKM50GB12T4 |
| Ihs Manufacturer | / |
| Part Package | DO-204 |
| Package Description | MODULE-7 |
| Pin Count | 2 |
| Samacsys Manufacturer | / |
| Case Connection | ISOLATED |
| Collector Current-Max (IC) | 81 A |
| Collector-Emitter Voltage-Max | 1200 V |
| Configuration | SERIES CONNECTED, CENTER TAP, 2 ELEMENTS WITH BUILT-IN DIODE |
| Gate-Emitter Thr Voltage-Max | 6.5 V |
| Gate-Emitter Voltage-Max | 20 V |
| JESD-30 Code | R-XUFM-X7 |
| Number of Elements | 2 |
| Number of Terminals | 7 |
| Operating Temperature-Max | 175 °C |
| Operating Temperature-Min | -40 °C |
| Package Body Material | UNSPECIFIED |
| Package Shape | RECTANGULAR |
| Package Style | FLANGE MOUNT |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED |
| Polarity/Channel Type | N-CHANNEL |
| Qualification Status | Not Qualified |
| Reference Standard | IEC-60747-1; UL RECOGNIZED |
| Surface Mount | NO |
| Terminal Form | UNSPECIFIED |
| Terminal Position | UPPER |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
| Transistor Application | POWER CONTROL |
| Transistor Element Material | SILICON |
| Turn-off Time-Nom (toff) | 400 ns |
| Turn-on Time-Nom (ton) | 127 ns |
| VCEsat-Max | 2.1 V |

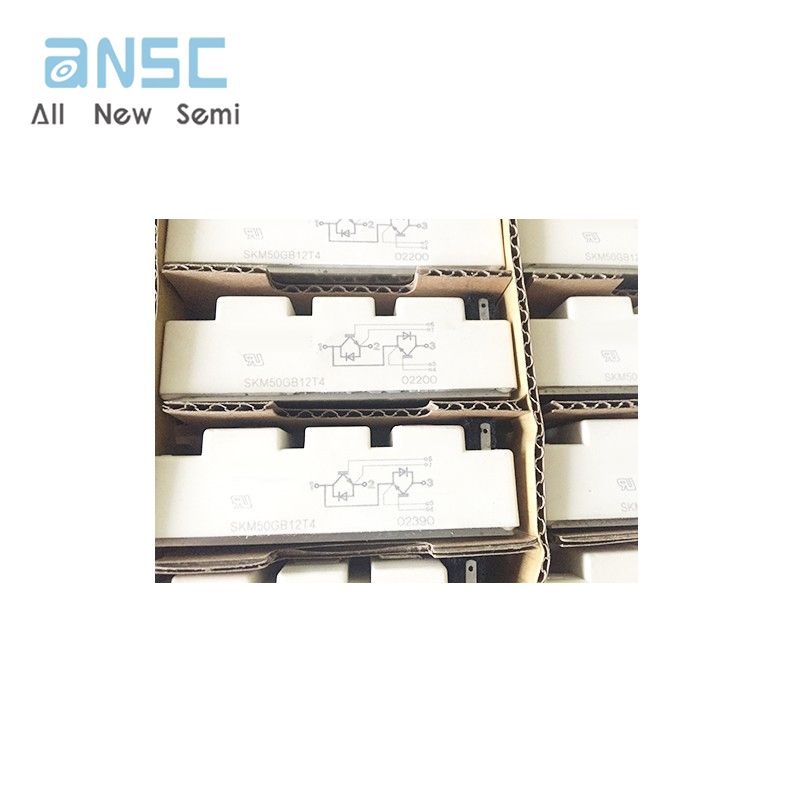

Actual image of the product

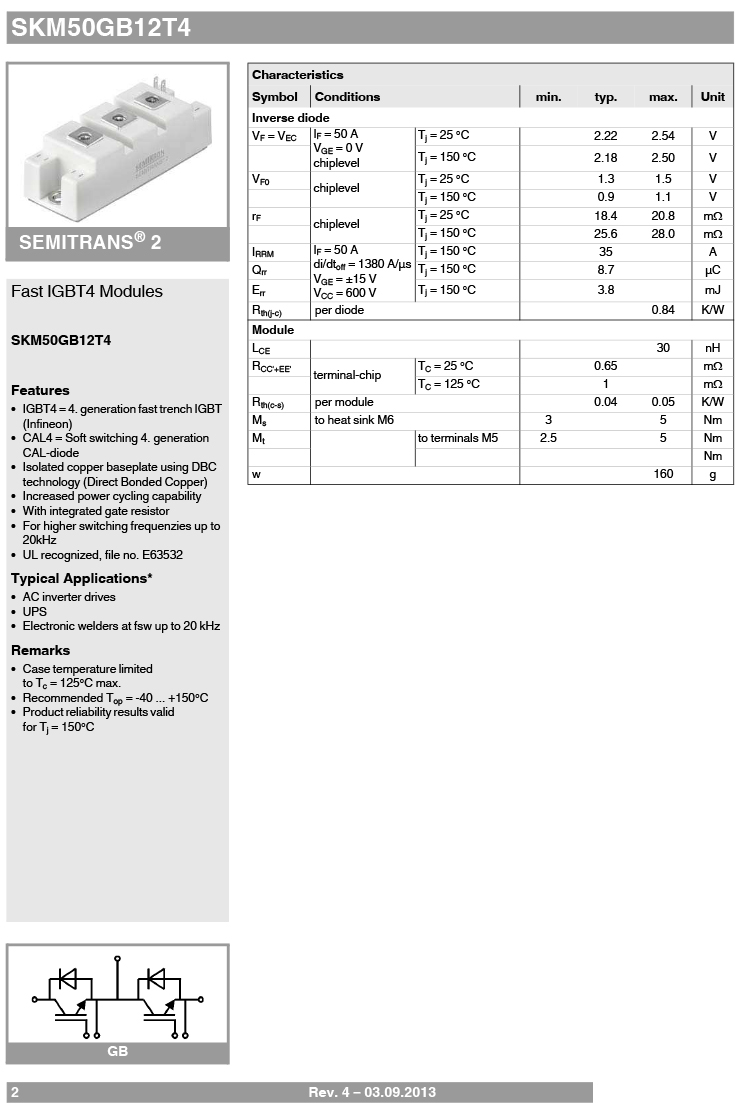

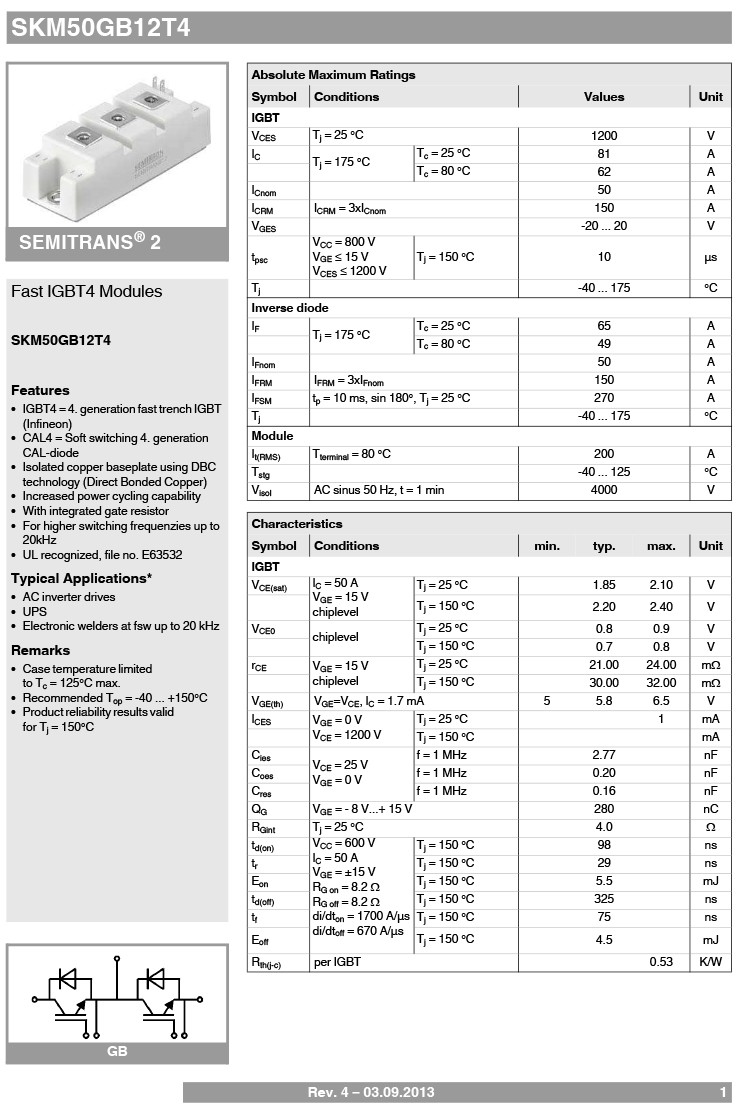

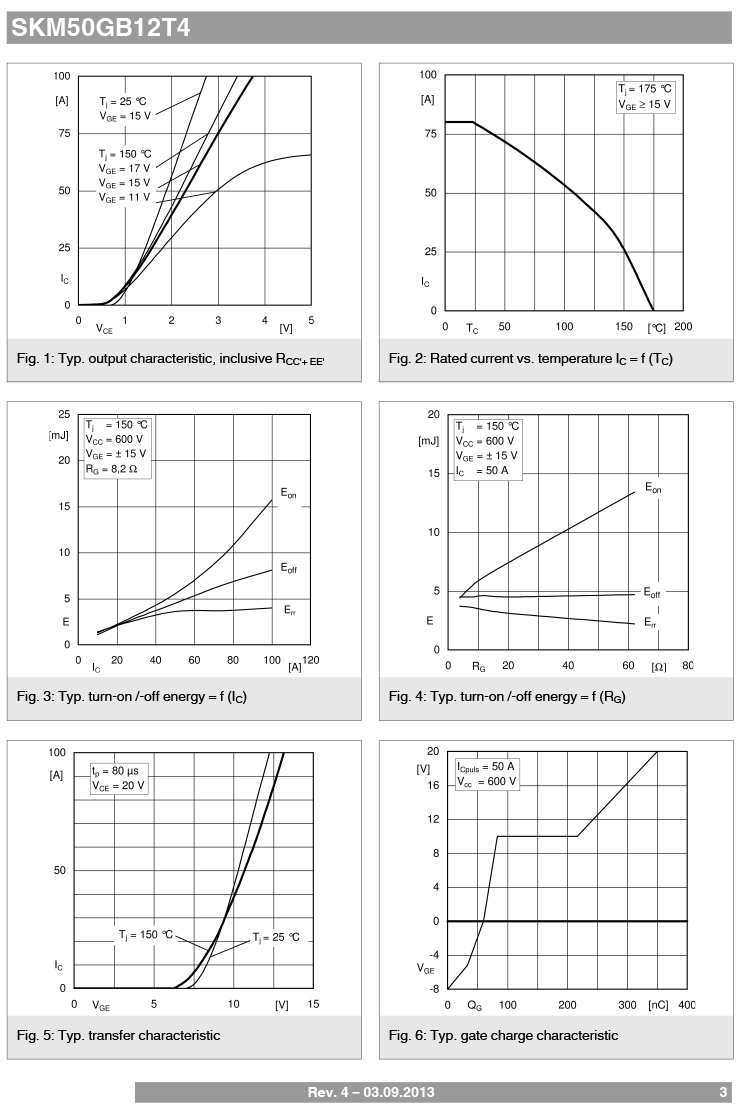

Product datasheet
