Product Details
Product Highlights
The VI-J00 MiniMod family established a new standard in component-level DC-DC converters. This “junior” size complement to the higher power VI-200 family offers up to 100 W of isolated and regulated power in a board mounted package. With thousands of input/output/power combinations, and with a maximum operating temperature rating of 100˚C, the MiniMod provides nearly unlimited flexibiliy for power system designers to meet demanding time to market requirements.
Features
• RoHS compliant (VE versions)
• Up to 50 Watts per cubic inch
• cULus, cTÜVus
• CE Marked
• Up to 90 efficiency
• Size: 2.28" x 2.4" x 0.5" (57,9 x 61,0 x 12,7)
• Remote sense and current limit
• Logic disable
• Wide range output adjust
• ZCS power architecture
• Low noise FM control
• Isolated output
Product Description
| Type# | Description |
| PART# | VI-JN1-EX |
| Manufacturer | / |
| Package Description | Module-9 |
| Analog IC - Other Type | DC-DC REGULATED POWER SUPPLY MODULE |
| Input Voltage-Max | 76 V |
| Input Voltage-Min | 36 V |
| Input Voltage-Nom | 48 V |
| Length | 61 mm |
| Load Regulation-Max | 0.50% |
| Number of Functions | 1 |
| Number of Outputs | 1 |
| Number of Terminals | 9 |
| Operating Temperature-Max | 100 °C |
| Operating Temperature-Min | -10 °C |
| Output Voltage-Max | 13.2 V |
| Output Voltage-Min | 10.8 V |
| Output Voltage-Nom | 12 V |
| Package Body Material | UNSPECIFIED |
| Package Code | DMA |
| Package Shape | RECTANGULAR |
| Package Style | MICROELECTRONIC ASSEMBLY |
| Qualification Status | Not Qualified |
| Seated Height-Max | 13.46 mm |
| Surface Mount | NO |
| Technology | HYBRID |
| Temperature Grade | OTHER |
| Terminal Finish | TIN LEAD |
| Terminal Form | PIN/PEG |
| Terminal Position | DUAL |
| Total Power Output-Max | 75 W |
| Trim/Adjustable Output | YES |
| Width | 57.9 mm |

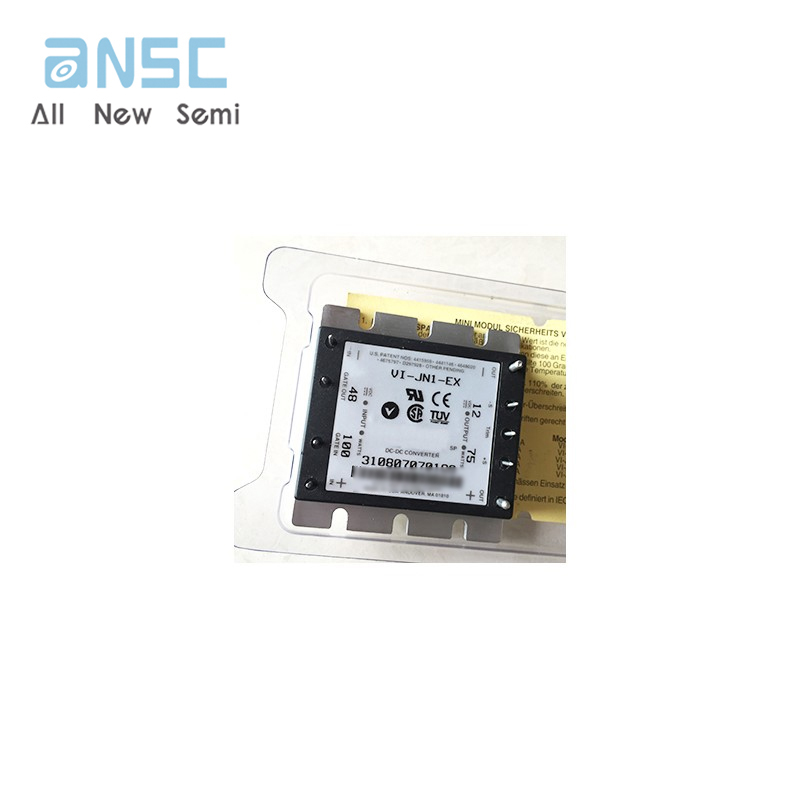

Actual image of the product
