Product Details
HEDS-9700#E50 Sensors 0.36 Single Digit PCB Based LED Display
Product Description
|
ANSC PART# |
ANSC- HEDS-9700#E50 |
|
Part# |
HEDS-9700#E50 |
|
Type： |
Sensors |
|
Manufactor |
Original |
|
DC |
new |

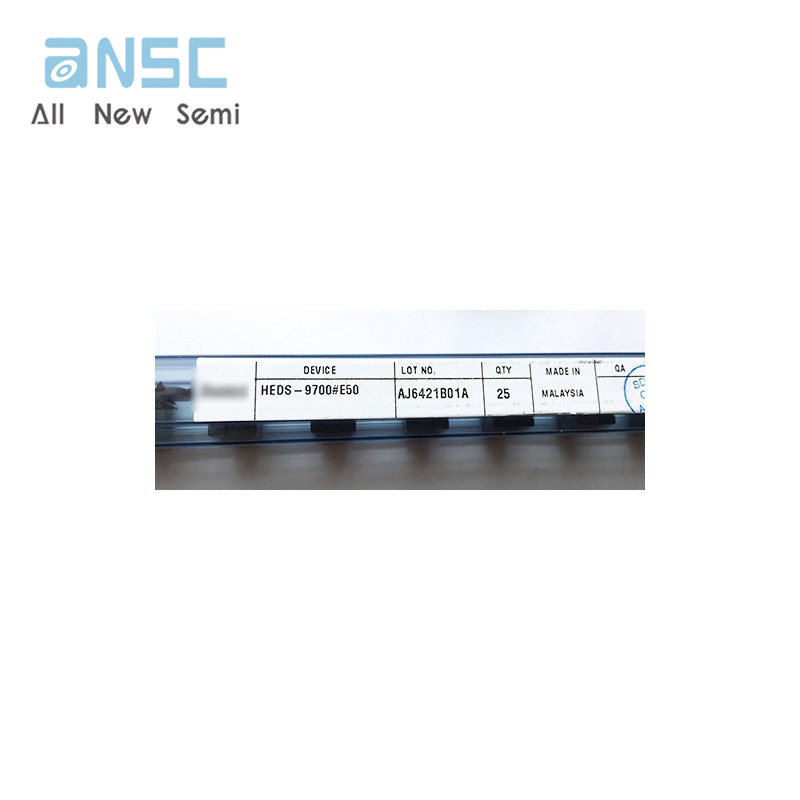

Actual image of the product
|
TYPE |
DESCRIPTION |
|---|---|
|
Category |
Sensors, Transducers Encoders |
|
Manufacturer |
Broadcom Limited |
|
Series |
HEDS |
|
Packaging |
Bulk |
|
Part Status |
Active |
|
DigiKey Programmable |
Not Verified |
|
Encoder Type |
Optical |
|
Output Type |
Quadrature (Incremental) |
|
Pulses per Revolution |
200 |
|
Voltage - Supply |
5V |
|
Actuator Type |
Codewheel Not Included |
|
Detent |
No |
|
Built in Switch |
No |
|
Mounting Type |
Chassis Mount |
|
Orientation |
Vertical |
|
Termination Style |
Terminal Pins |
|
Rotational Life (Cycles Min) |
- |
|
Base Product Number |
HEDS-9700 |

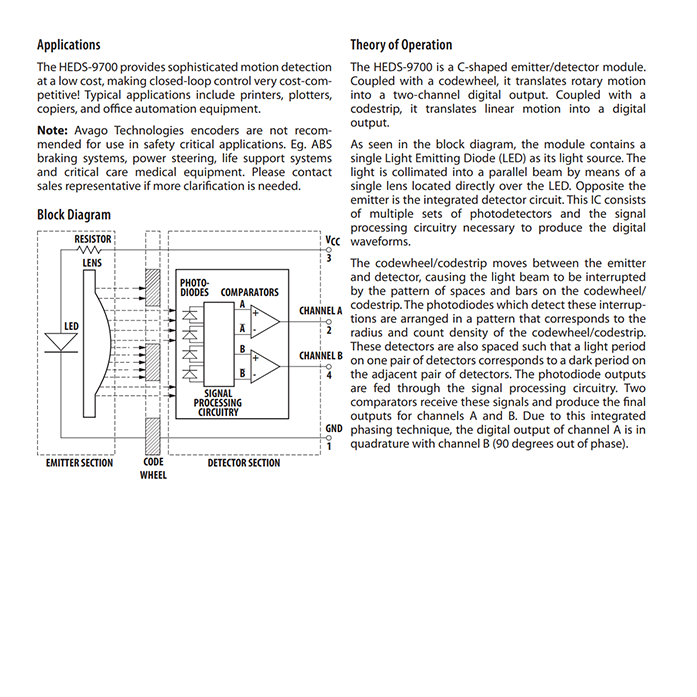

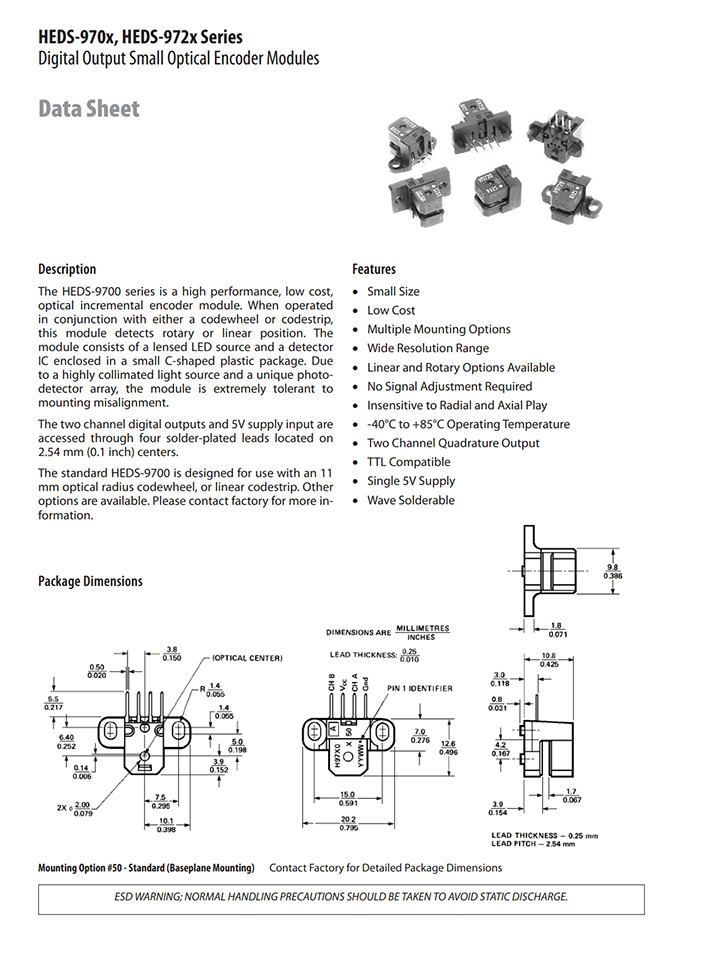

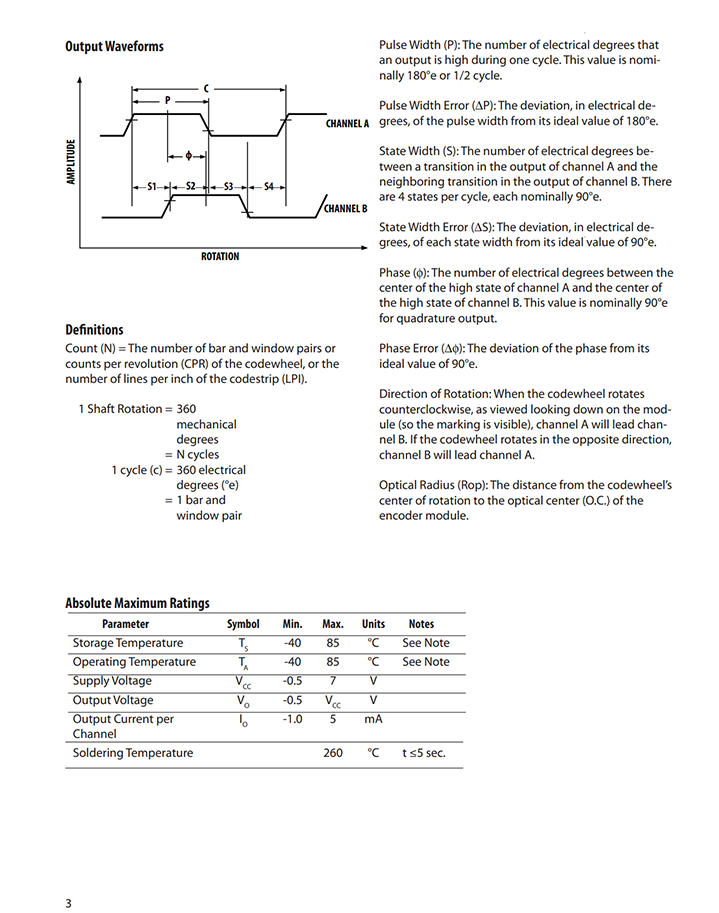

Product datasheet
