Product Details
Description
Flat Top Package
The HLMP-Pxxx Series flat top lamps use an untinted, non diffused, truncated lens to provide a wide radiation
pattern that is necessary for use in backlighting applications.
The flat top lamps are also ideal for use as emitters in light pipe applications.
Features
Subminiature flat top package
– ideal for backlighting and light piping applications
Subminiature dome package
– diffused dome for wide viewing angle
– nondiffused dome for high brightness
TTL and LSTTL compatible 5 volt resistor lamps
Available in six colors
Ideal for space limited applications
Axial leads
Available with lead configurations for surface mount and through hole PC board mounting
Product Description
| TYPE# | DESCRIPTION |
| ANSC PART# | ANSC - HLMP-6720-F0010 |
| Category | Optoelectronics |
| Circuit Board Indicators, Arrays, Light Bars, Bar Graphs | |
| Manufacturer |
/ |
| Series | HLMP-6xxx |
| Packaging | Bulk |
| Part Status | Active |
| Color | Yellow |
| Wavelength - Peak | 583nm |
| Configuration | Single |
| Current | 10mA |
| Millicandela Rating | 2mcd |
| Viewing Angle | 90° |
| Lens Type | Diffused |
| Lens Style | Round with Domed Top |
| Lens Size | 1.91mm Dia |
| Voltage Rating | 5V |
| Mounting Type | Through Hole, Right Angle |
| Base Product Number | HLMP-6720 |

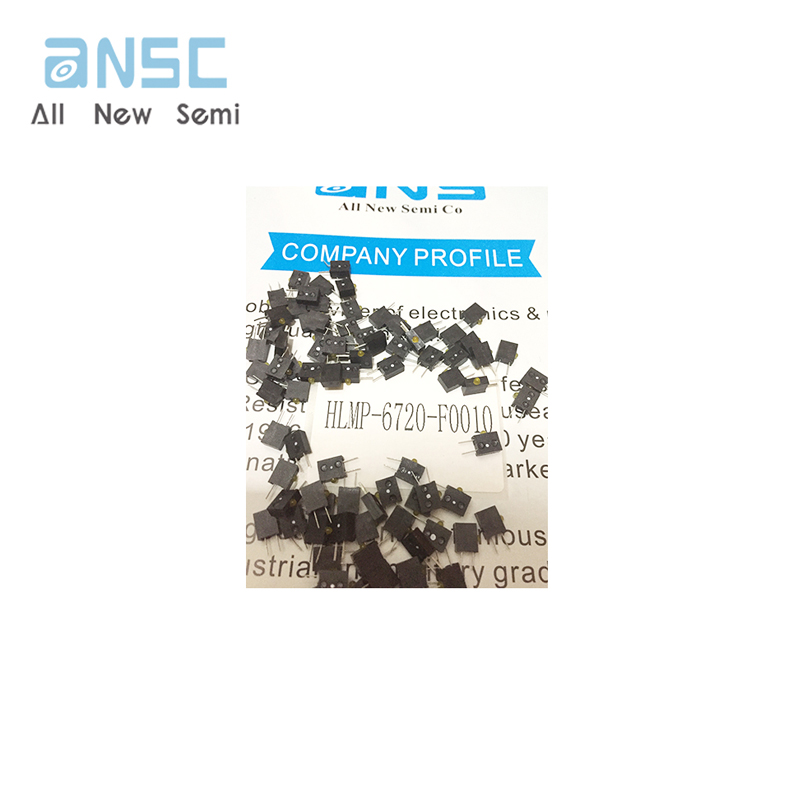

Actual image of the product

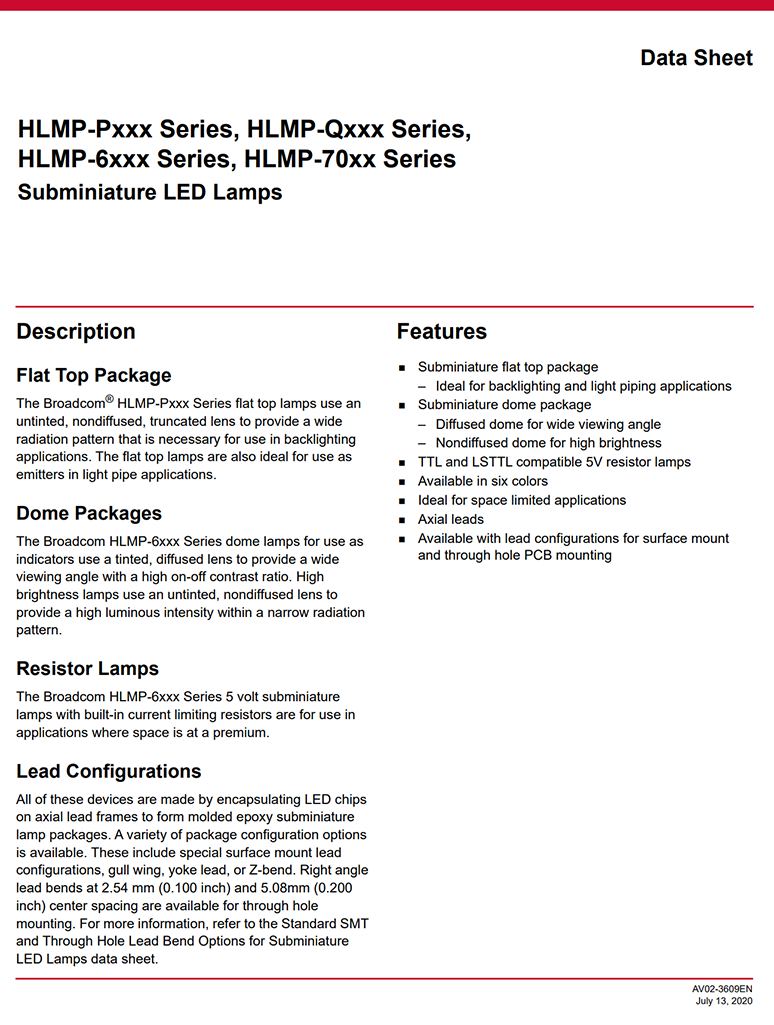

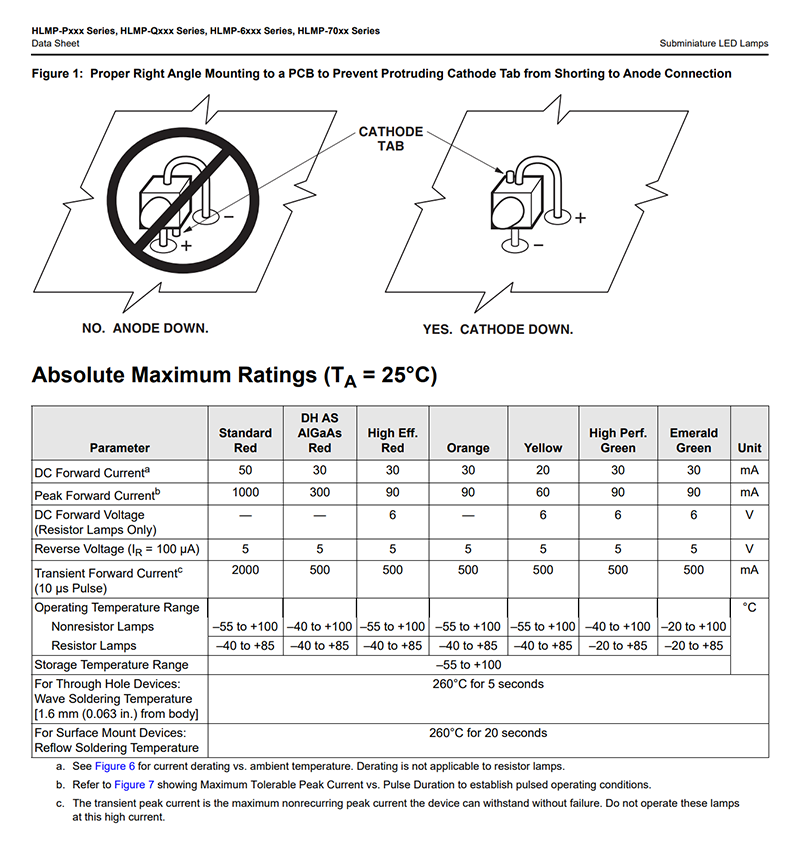

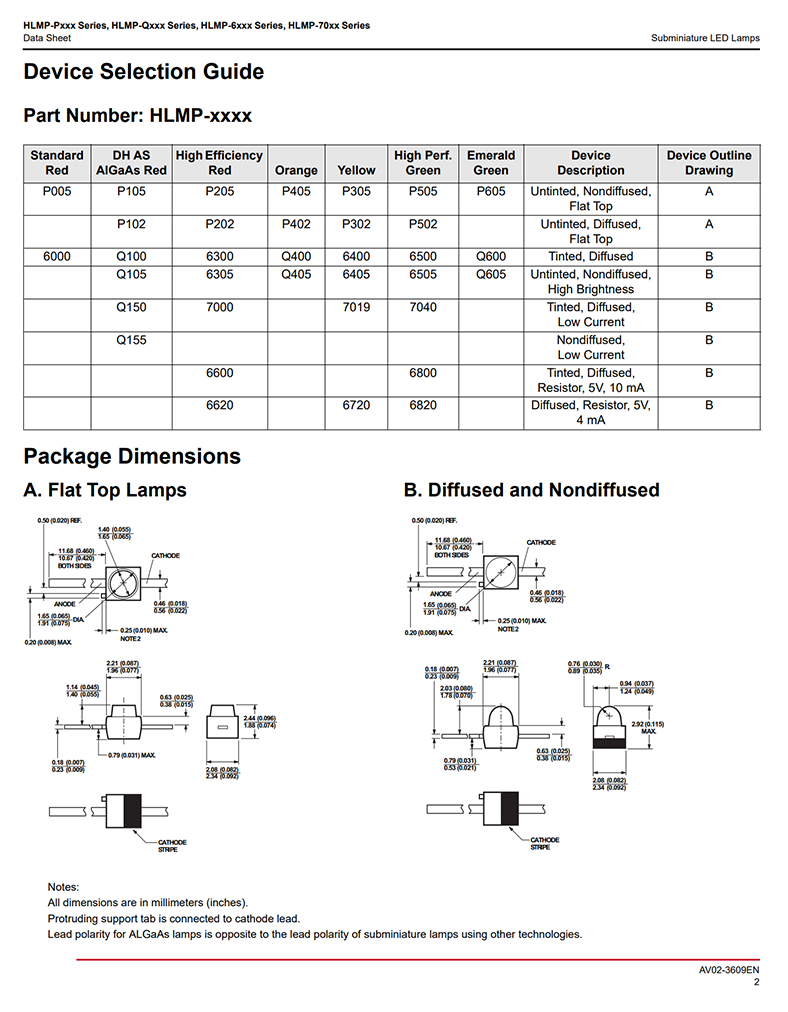

Product datasheet
For more information, please download
