Product Details
3.0A SURFACE MOUNT GLASS PASSIVATED RECTIFIER
Product Features
<!-- [if !supportLists]-->² <!--[endif]-->Glass Passivated Die Construction
<!-- [if !supportLists]-->² <!--[endif]-->Low Forward Voltage Drop and High Current Capability
<!-- [if !supportLists]-->² <!--[endif]-->Surge Overload Rating to 100A Peak
<!-- [if !supportLists]-->² <!--[endif]-->Ideally Suited for Automated Assembly
<!-- [if !supportLists]-->² <!--[endif]-->Lead-Free Finish; RoHS Compliant
<!-- [if !supportLists]-->² <!--[endif]-->Halogen and Antimony Free. “Green” Device
Product Description
|
ANSC PART# |
ANSC- S3G-13-F |
|
Part# |
S3G-13-F |
|
Type： |
DIODES |
|
Manufactor |
Original |
|
DC |
new |

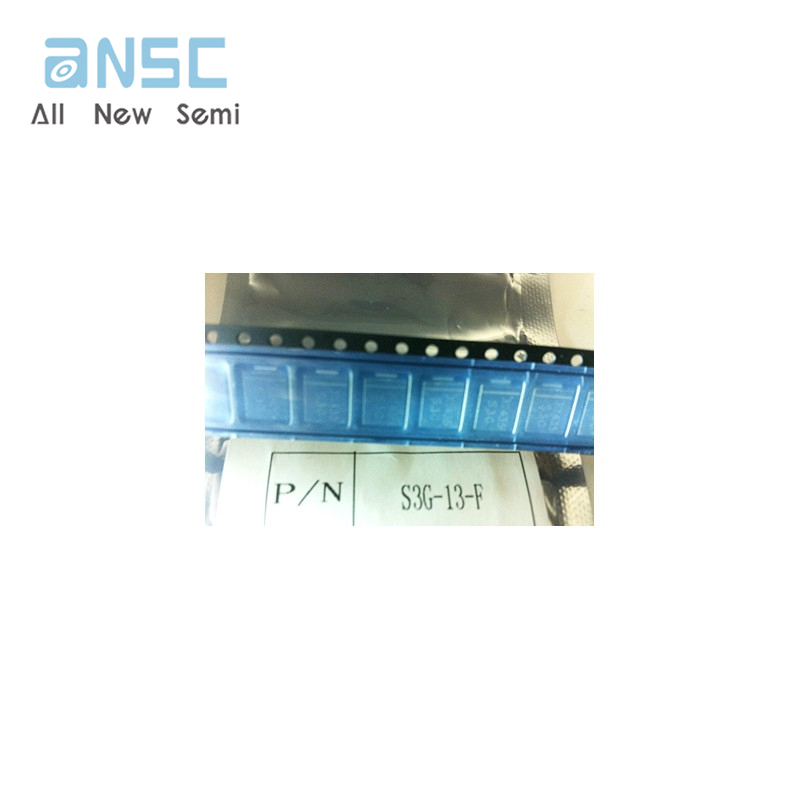

Actual image of the product
Product Attributes
|
TYPE |
DESCRIPTION |
|---|---|
|
Category |
Discrete Semiconductor Products Diodes Rectifiers Single Diodes |
|
Mfr |
Diodes Incorporated |
|
Series |
- |
|
Packaging |
Tape & Reel (TR) Cut Tape (CT) Digi-Reel® |
|
Part Status |
Active |
|
Technology |
Standard |
|
Voltage - DC Reverse (Vr) (Max) |
400 V |
|
Current - Average Rectified (Io) |
3A |
|
Voltage - Forward (Vf) (Max) @ If |
1.15 V @ 3 A |
|
Speed |
Standard Recovery >500ns, > 200mA (Io) |
|
Current - Reverse Leakage @ Vr |
10 µA @ 400 V |
|
Capacitance @ Vr, F |
40pF @ 4V, 1MHz |
|
Mounting Type |
Surface Mount |
|
Package / Case |
DO-214AB, SMC |
|
Supplier Device Package |
SMC |
|
Operating Temperature - Junction |
-65°C ~ 150°C |
|
Base Product Number |
S3G |

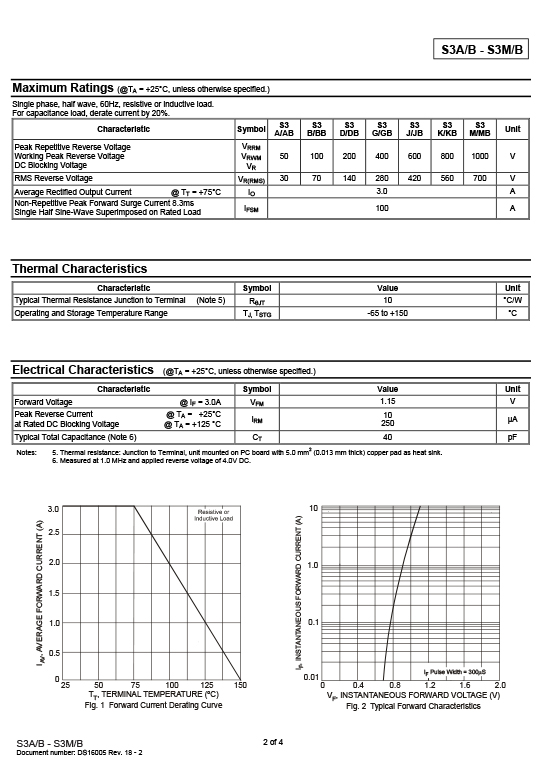

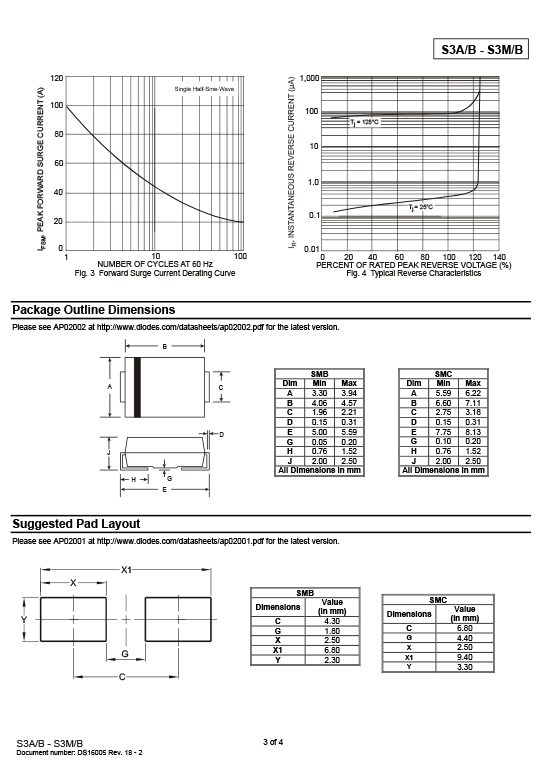

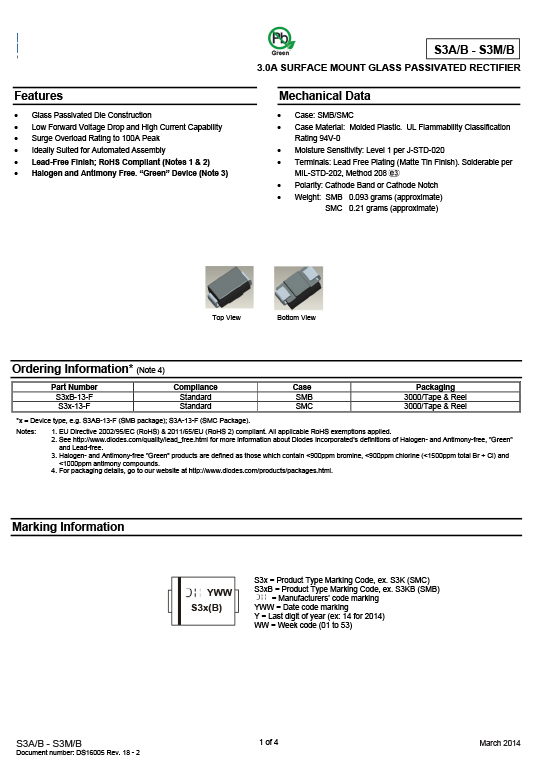

Product datasheet
For more information, please download
