Product Descriptions

The CX1001 is an IEEE 802.11b/g/j/n WLAN  single-chip solution fully optimized for mobile  applications such as mobile phones, smart  phones, PDAs and portable media players. The  extremely low power consumption and intelligent  host off loading of beacon as well as the packet  processing ensure industry leading battery life.

High levels of integration allow for very compact  and cost effective reference designs delivering  fast time-to-market for new WLAN enabled  products.

Product Features

• Compliant with IEEE 802.11n, 11b, 11j, 11g

• Depopulated 73-pin lead-free/RoHS compliant  WLCSP 3.90 mm x 3.84 mm x 0.6 mm with  0.4 mm pitch

• Reference design using 16 external  components: 1 SP3T antenna switch, 1  coexistence filter, 13 capacitors and one  inductor in a PCB footprint of 50 mm2

• Enhanced integrated Bluetooth coexistence

– IEEE 802.15.2 support (standard PTA)

– ePTA: proprietary enhanced coexistence  hardware and algorithms

• Power supply

– Integrated SMPS for direct battery  connection

– Software adjustable output voltage to  minimize power consumption

• Clocks

– Reference clock input (digital or sine wave)

– Low power clock input at 32.768 kHz

– Direct external crystal input for reference  clock

• Various on-chip auto calibration features

• Support for 6 to 65 Mbps OFDM, 11 and 5.5  Mbps CCK and legacy 2 and 1 Mbps DSSS  data rates

• WLAN solution with fully integrated:

– Zero IF (ZIF) transceiver

– OFDM and CCK baseband processors

– ARM9 media access controller (MAC)

– SPI serial host interface

– SDIO (1-bit, 4-bit) serial host interface

• Intelligent power control, including 802.11  power save mode

• Supports MAC enhancements including:

– 802.11d - Regulatory domain operation

– 802.11e - QoS including WMM

– 802.11h - Transmit power control dynamic  and frequency selection

– 802.11i - Security including WPA2 & WAPI

– 802.11k - Radio resource measurement

– 802.11r - Roaming

– 802.11w - Management frame protection

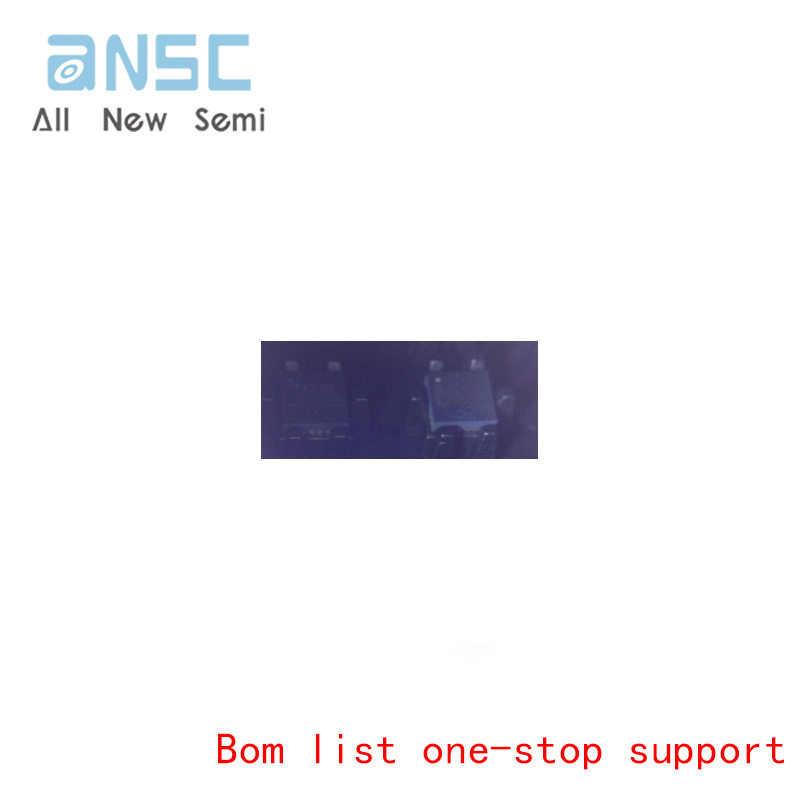

Actual product photos
