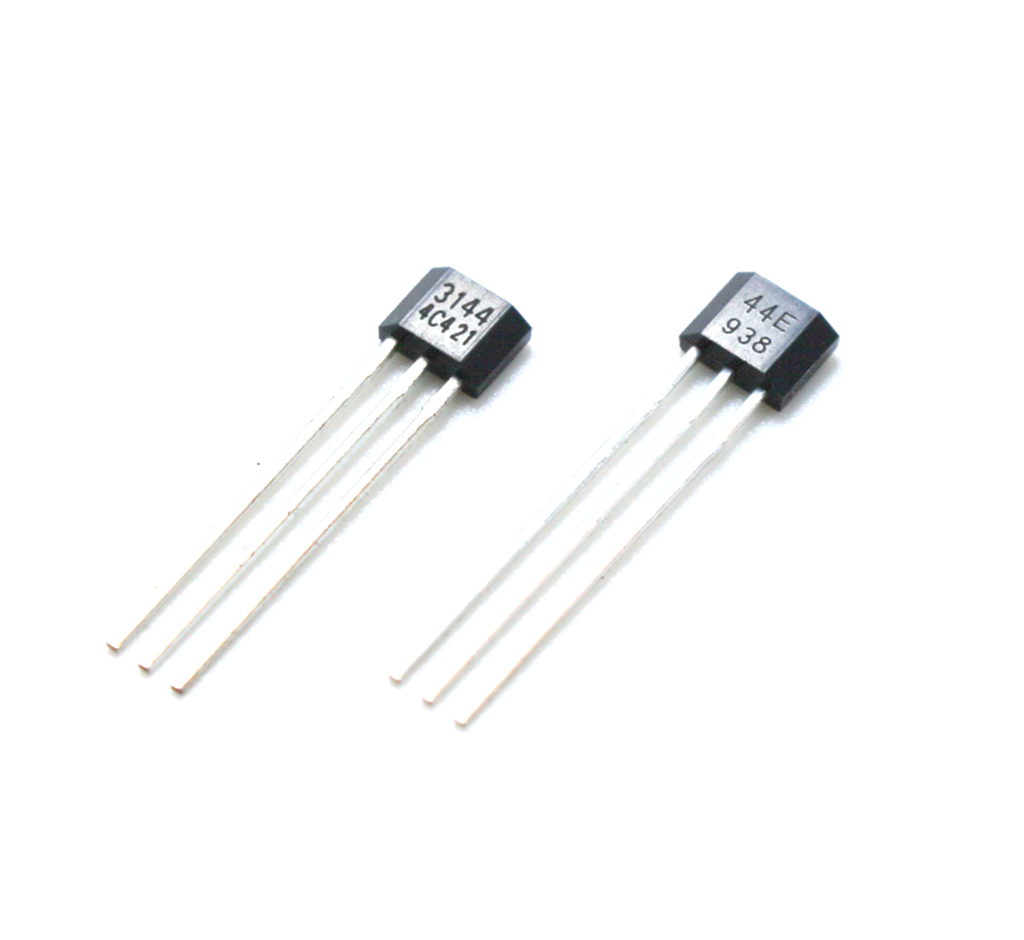

Large chip high-sensitivity 44E Hall sensor 402 switch A1344EUA-T high-temperature component AH3144E

Product Descriptions：

3144E Hall element 44E OH44E Hall sensor Hall switch integrated circuit applies the principle of Hall effect and uses semiconductor integrated technology to manufacture a magnetic sensitive circuit. It is a magnetic sensitive sensing circuit composed of a voltage regulator, Hall voltage generator, differential amplifier, Schmitt trigger, temperature compensation circuit, and an output stage with open collector. Its input is magnetic induction intensity and the output is a digital voltage signal.

Product Features

Small size, high sensitivity, fast response speed, good temperature performance, high temperature, and high reliability

Typical applications

Contactless switch, car igniter, brake circuit, position and speed detection and control, safety alarm device, textile control system

Limit parameter (25 ℃)

Power supply voltage VCC ··································· 24V

Output reverse breakdown voltage Vce ························· 50V

Output low-level current IOL ························· 50mA

Working environment temperature TA ················· E range: -20~85 ℃, L range: -40~150 ℃

Storage temperature range TS ································································-65～150 ℃
