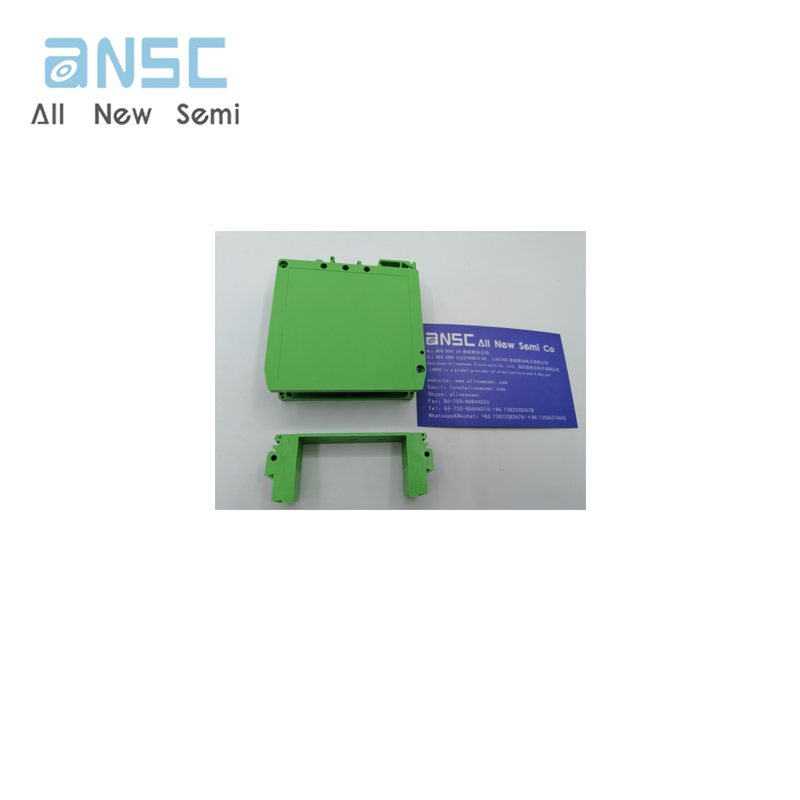

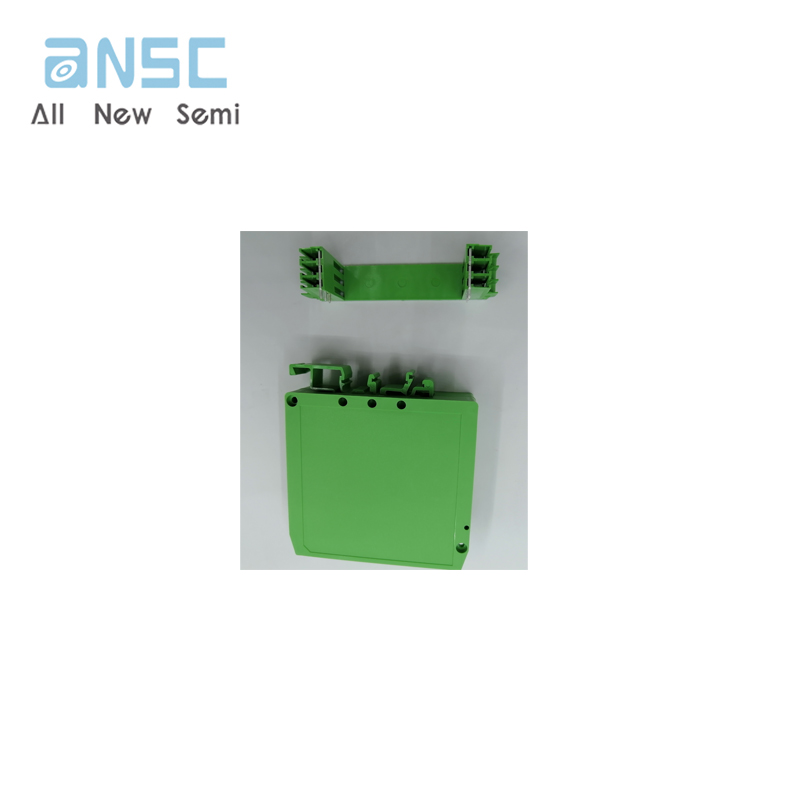

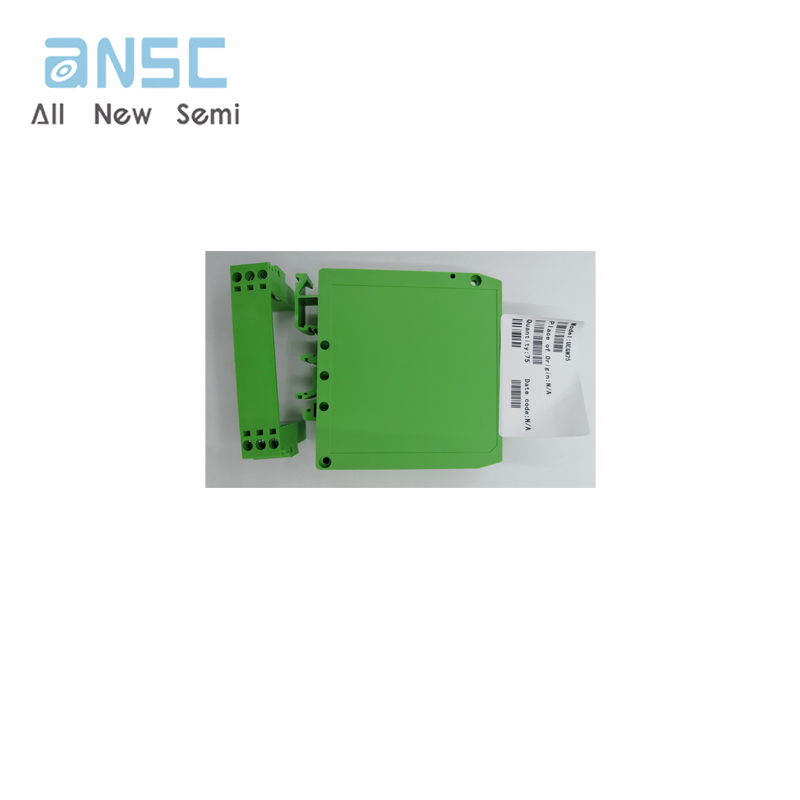

Type: With connection system, closed housing

Product type: Housing

Product series: UEGM

Number of positions: 6

Pitch: 5 mm

Number of rows: 1

Type: 3 screw connections per side of the entire housing

Housing type: Module housing

Housing series: UEGM

Pin arrangement: Linear arrangement

Rated voltage U: 500 (The voltage and current values are affected by the configuration of the printed circuit board.)

Rated current I: 10 A

Width: 25 mm

Structural height: 85.5 mm

NS 35/7,5 height: 85.5 mm

Depth: 79 mm

Length: 79 mm

Pitch: 5 mm

Color: green

Inflammability class according to UL 94: V2

Surface finish: untreated

Housing material: Nylon

Ambient temperature (operation): -40 °C ... 105 °C

Mounting type: DIN rail mounting

Pin arrangement: Linear arrangement
