Product Description
| PART# | SII-4035 |
| Stator diameter | 40.0 mm (1.575 in) |
| Stator thickness | 35.0 mm (1.024 inches) |
| Number of stator arms | 12 |
| pole | 14 |
| Motor wind | 15 rpm delta |
| Motor wire | 9 strands 0.25mm |
| Motor power | 250 rpm |
| Motor resistance (Rm) | 0.037 ohms |
| Maximum continuous power | 2700 w |
| Motor timing | 5 degrees |
| Maximum continuous current | 65 a |
| Weight | 450 g (15.87 oz) |
| outside diameter | 48.8 mm (1.921 in) |
| Shaft diameter | 7.98 mm (0.30 in) |
| Adapter thread size | M8*1.0 |
| Body length | 64.9 mm (2.26 in) |
| overall shaft length | 95 mm (3.346 in) |
| Max Lipo Cell | 12s |
| Drive frequency | 8kHz |

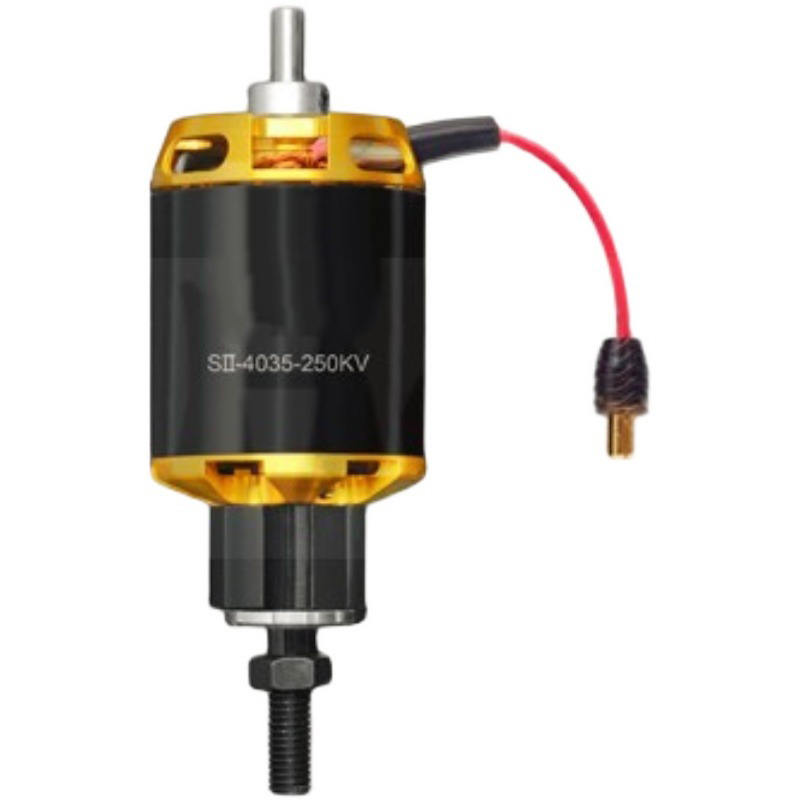

Actual image of the product
