Product Overview

RCWL-1605 is a transceiver integrated ultrasonic ranging module designed with our self-developed chip RCWL-9623.

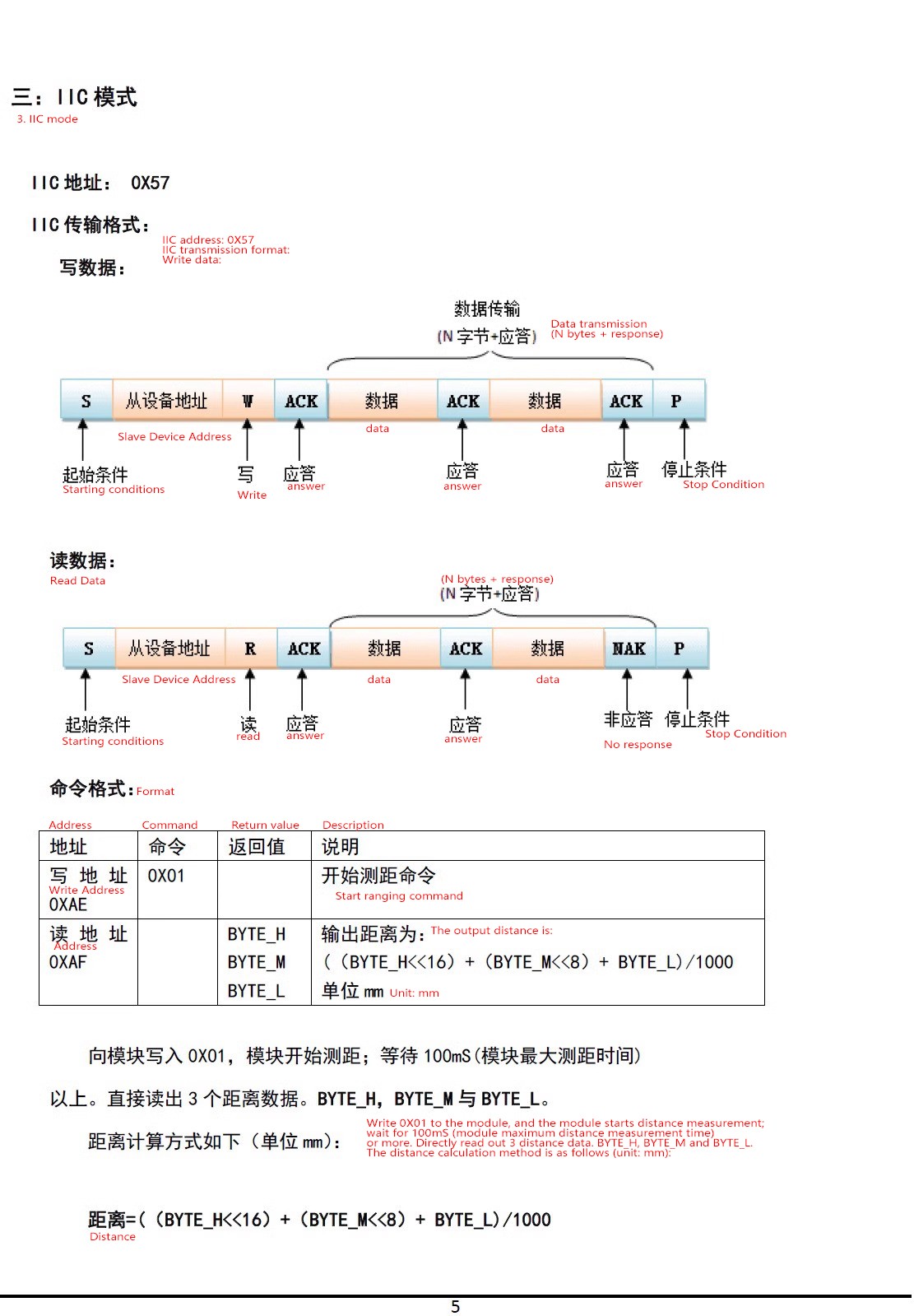

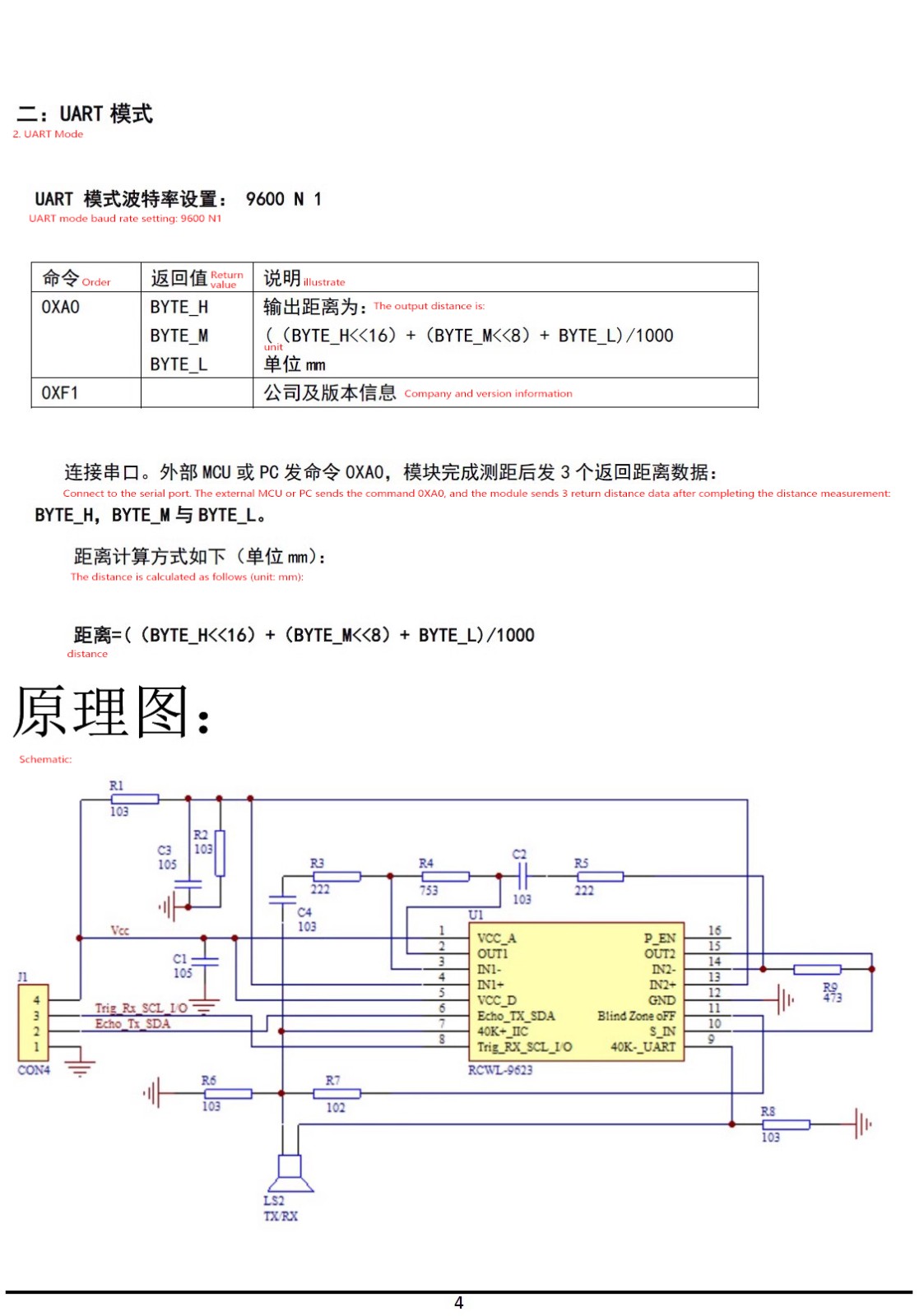

Under default conditions, the software is fully compatible with our old version HC-SR04; it can be set to UART, IIC or single bus mode through resistors. 25CM blind area, 4.5M typical maximum distance measurement, 2mA ultra-low operating current. The self-developed chip RCWL-9625 is used to make its periphery more concise, the operating voltage is wider (2.8-5.5V), and the interface functions are more.

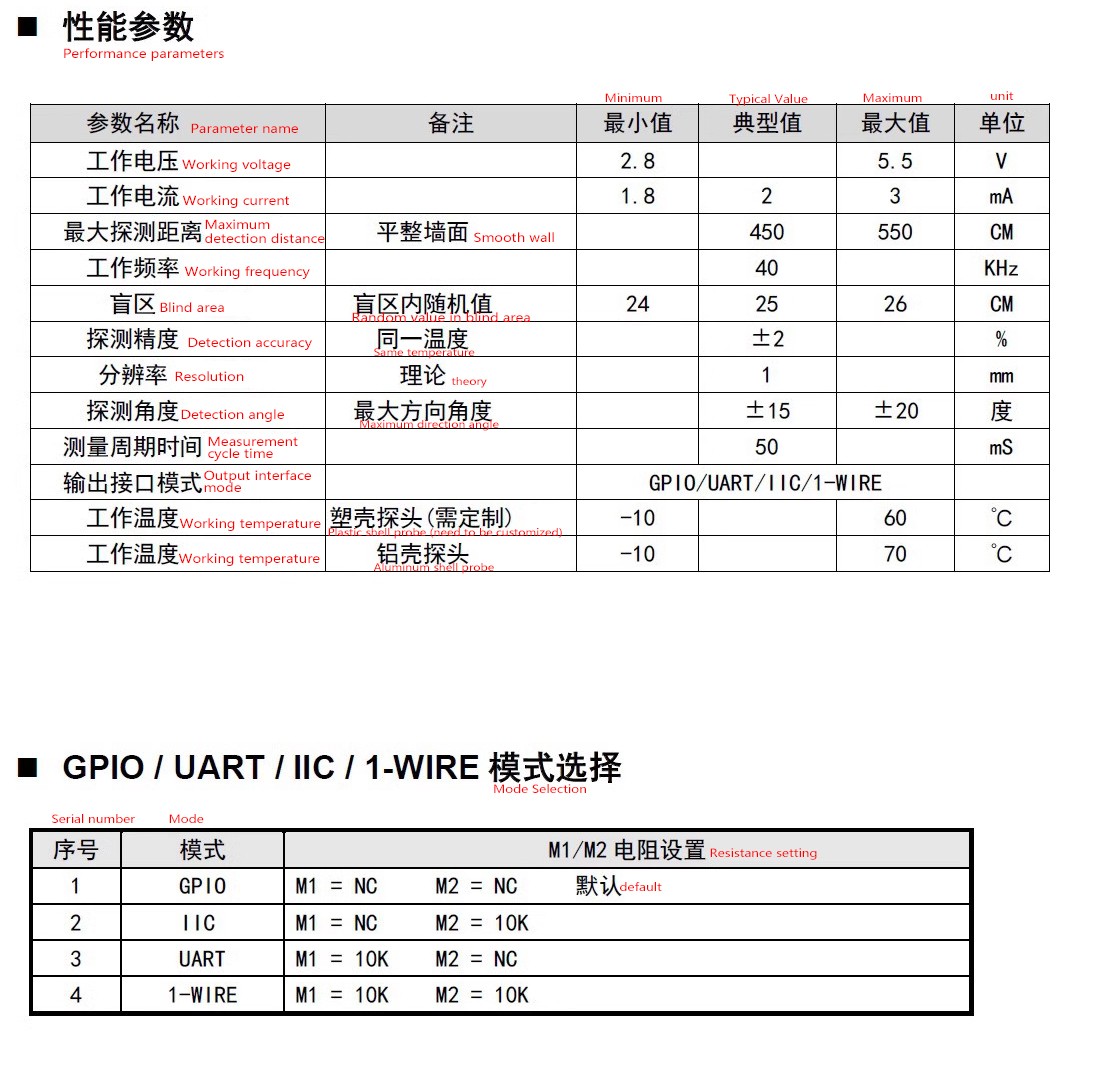

Product Features

Uses professional chip RCWL-9623

Working voltage: 2.8-5V

Working current: 2mA

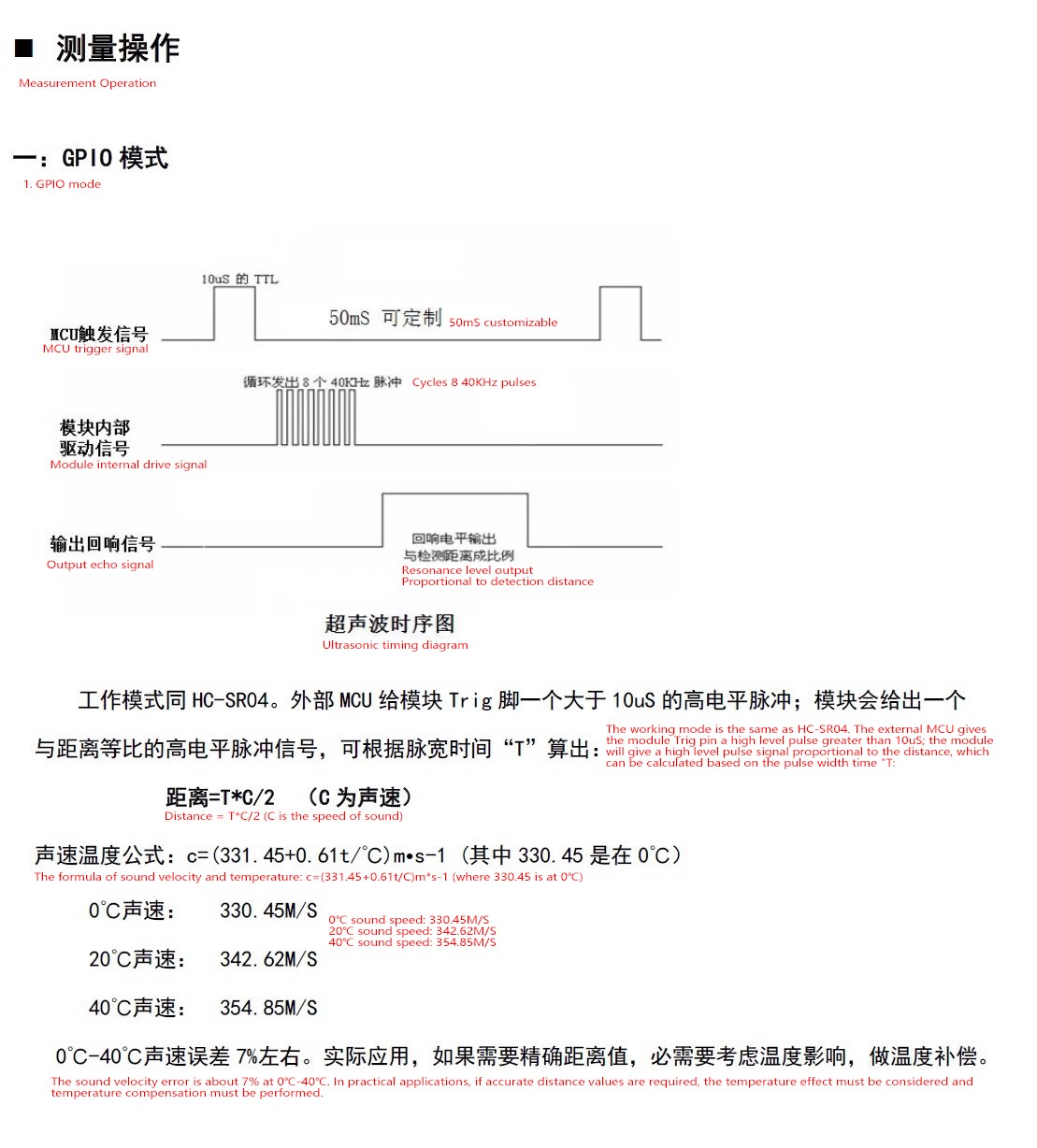

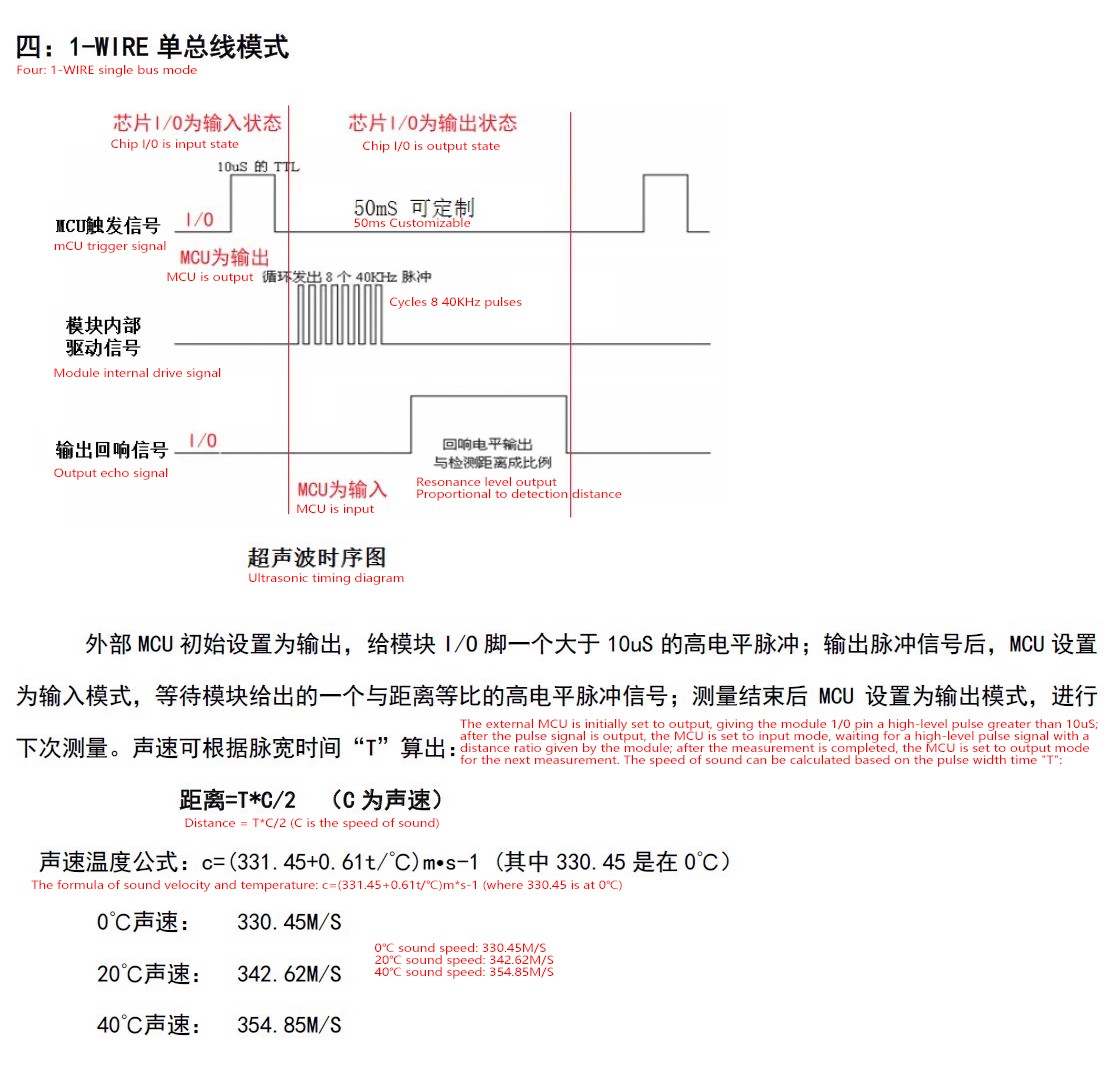

Supports GPI0, UART, IIC and 1-WIRE output modes, the default output mode is compatible with HC-SR04

50mS cycle

The data is completely open source and customers can download it by themselves

Product Applications

Toys, robot obstacle avoidance

Liquid level, water level measurement

Other distance measurement applications

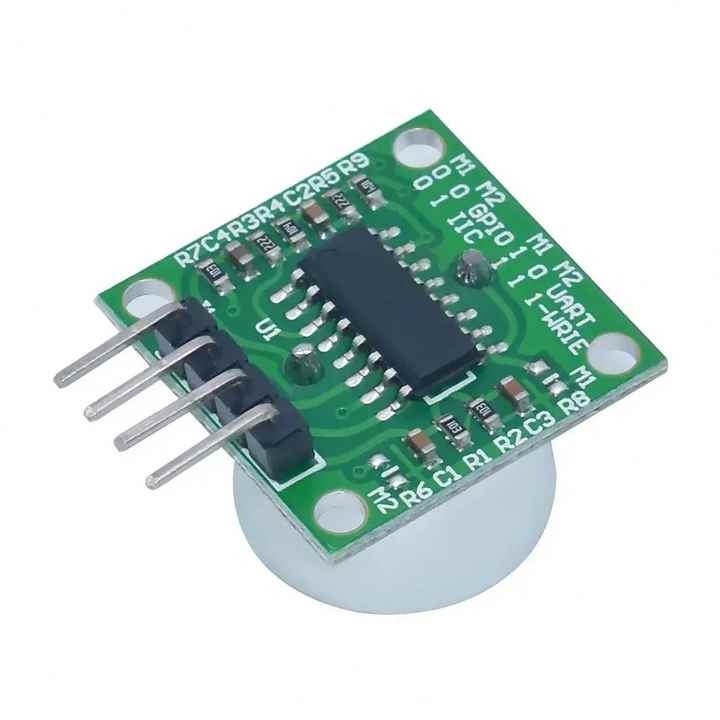

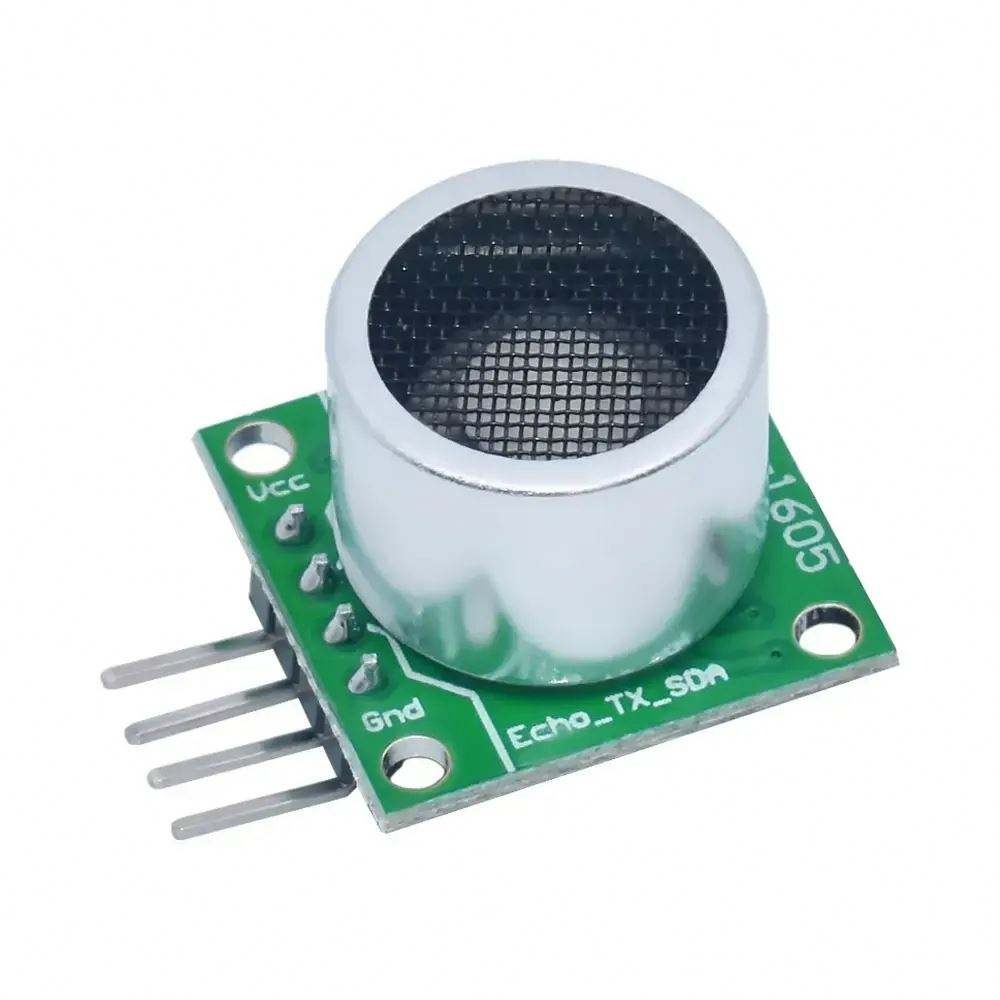

  Actual image of the product
