Product Description

The PCM1808 device is a high-performance, low-cost, single-chip, stereo analog-to-digital converter with single-ended analog voltage input. The PCM1808 device uses a delta-sigma modulator with a 64x oversampling rate and includes a digital decimation filter and a high-pass filter to remove the DC component of the input signal. For a variety of applications, the PCM1808 device supports master and slave modes and two data formats in the serial audio interface. The PCM1808 device supports power-down and reset functions by suspending the system clock. The PCM1808 device is suitable for a variety of cost-sensitive consumer applications that require good performance and operation with a 5V analog supply and a 3.3V digital supply. A highly advanced CMOS process is used in the manufacture of the PCM1808 device. The device is available in a small 14-pin TSSOP package.

Product Features

24-bit Delta-Sigma Stereo A/D Converter

Single-ended Voltage Input: 3 Vp-p

High Performance: THD+N: -93 dB (typical)

Signal-to-Noise Ratio: 99 dB (typical)

Dynamic Range: 99 dB (typical)

Oversampling Decimation Filter:

Oversampling Frequency: ×64

Passband Ripple: ±0.05 dB

Stopband Attenuation: -65 dB

On-Chip High-Pass Filter: 0.91 Hz (48 kHz)

Flexible PCM Audio Interface Master or Slave Mode Selectable Data Format: 24-bit I2S,

24-bit Left Justified Power-down and reset by suspending system clock Analog anti-aliasing LPF included.

Sampling Rate: 8 kHz-96 kHz

System Clock: 256 fS, 384 fS, 512 fS

Resolution: 24-bit

Dual Power Supply: 5V Analog 3.3V for digital

Package includes:

1 xPCM1808 Audio Stereo ADC Single-ended Analog Input Decoder Amplifier Board Player Module

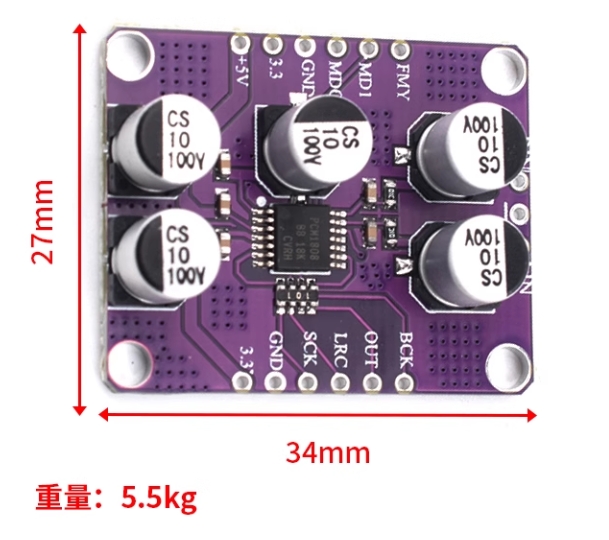

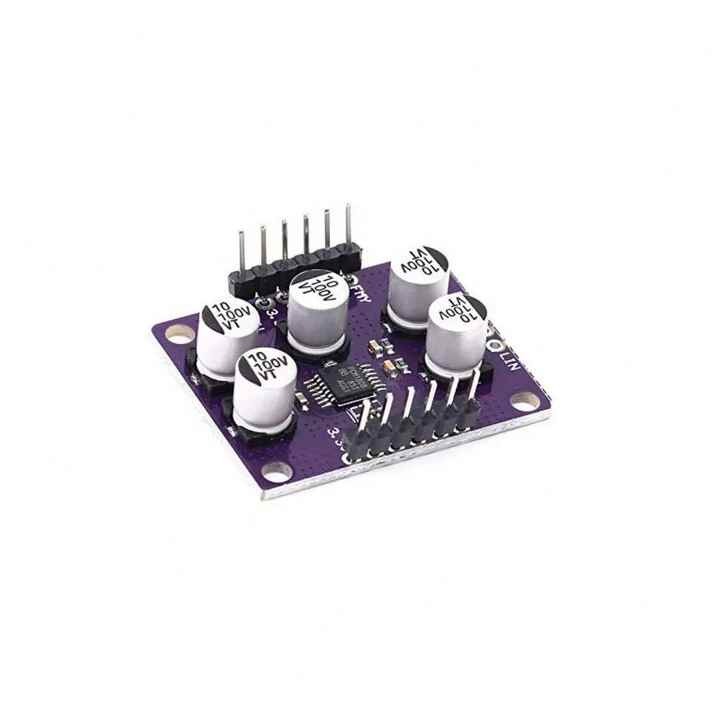

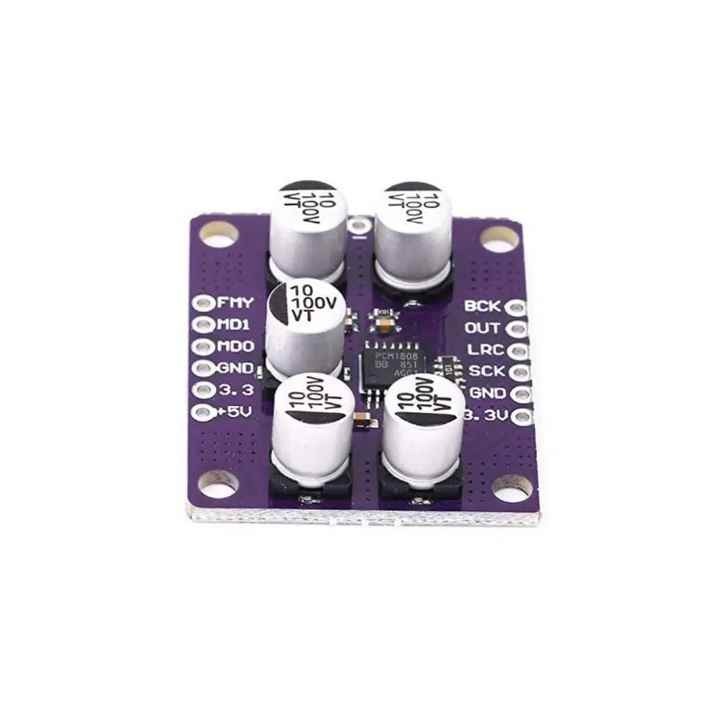

Actual image of the product
