Product Details
Product Description:
The 0451007.MRL is a high-performance, surface-mount electric fuse designed for circuit protection in various applications. This fuse is part of the NANO2 451 series, known for its compact size, fast blow characteristic, and reliable operation.
Features:
-
Very fast blow characteristic for quick circuit protection
-
Ceramic body material for high reliability and durability
-
Surface-mount design for easy installation and reduced PCB space requirements
-
Rated voltage of 125V AC and DC, with a breaking capacity of 50A
-
Current rating of 7A, making it suitable for a wide range of applications
-
Low DC cold resistance of 0.009 Ohm for efficient current flow
-
Lead-free and RoHS3 compliant for environmental sustainability
-
Operating temperature range of -55°C to 125°C for broad application flexibility
Applications:
-
Primary applications: Consumer electronics, industrial control systems, and automotive electronics
-
Secondary applications: Medical devices, aerospace, and defense systems
Product Description
|
Type |
Description |
|---|---|
|
PART# |
0451007.MRL |
|
Category |
Circuit Protection Fuses |
|
Mfr |
/ |
|
Series |
NANO²® 451 |
|
Packaging |
Tape & Reel (TR) Cut Tape (CT) |
|
Part Status |
Active |
|
Mounting Type |
Surface Mount |
|
Fuse Type |
Board Mount (Cartridge Style Excluded) |
|
Current Rating (Amps) |
7 A |
|
Voltage Rating - AC |
125 V |
|
Voltage Rating - DC |
125 V |
|
Response Time |
Fast Blow |
|
Package / Case |
2-SMD, Square End Block |
|
Breaking Capacity @ Rated Voltage |
50A |
|
Melting I²t |
10.32 |
|
Approval Agency |
CSA, PSE, UL |
|
Operating Temperature |
-55°C ~ 125°C |
|
Color |
- |
|
Size / Dimension |
0.240" L x 0.106" W x 0.106" H (6.10mm x 2.69mm x 2.69mm) |
|
DC Cold Resistance |
0.009 Ohms |

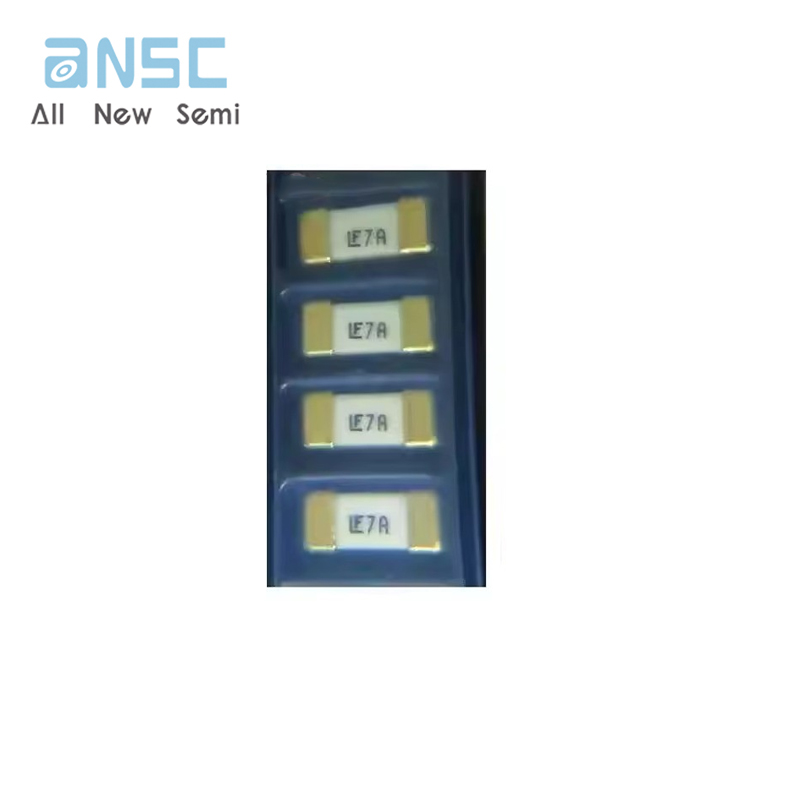

Actual image of the product
