Product Details
Features
■ Multiturn / Cermet / Industrial / Sealed
■ Standoffs
■ Listed on the QPL per MIL-PRF-22097 and High-Rel MIL-PRF-39035
■ For trimmer applications/processing guidelines, click here
Product Description
| Type# | Description |
| Part# | RJR24FW105R |
| Manufacturer | BOURNS |
| Factory Lead Time | 10 Weeks |
| Samacsys Manufacturer | Bourns |
| Actuator Orientation | VERTICAL |
| Actuator Type | SCREW |
| Construction | Sealed |
| Ganging Number | 1 |
| Lead Diameter | 0.51 mm |
| Lead Length | 6.4 mm |
| Mounting Feature | THROUGH HOLE MOUNT |
| Number of Terminals | 3 |
| Number of Turns | 25 |
| Operating Temperature-Max | 150 °C |
| Operating Temperature-Min | -55 °C |
| Package Height | 10.03 mm |
| Package Length | 9.53 mm |
| Package Shape | RECTANGULAR PACKAGE |
| Package Style | Radial |
| Package Width | 4.83 mm |
| Packing Method | TUBE |
| Rated Power Dissipation (P) | 0.5 W |
| Rated Temperature | 85 °C |
| Reference Standard | MIL-PRF-39035 |
| Resistance | 1000000 Ω |
| Resistance Law | LINEAR |
| Resistor Type | TRIMMER |
| Rotational Angle | 9000 deg |
| Surface Mount | NO |
| Technology | CERMET |
| Temperature Coefficient | 100 ppm/°C |
| Terminal Finish | TIN LEAD |
| Terminal Shape | WIRE |
| Tolerance | 10% |
| Working Voltage | 300 V |

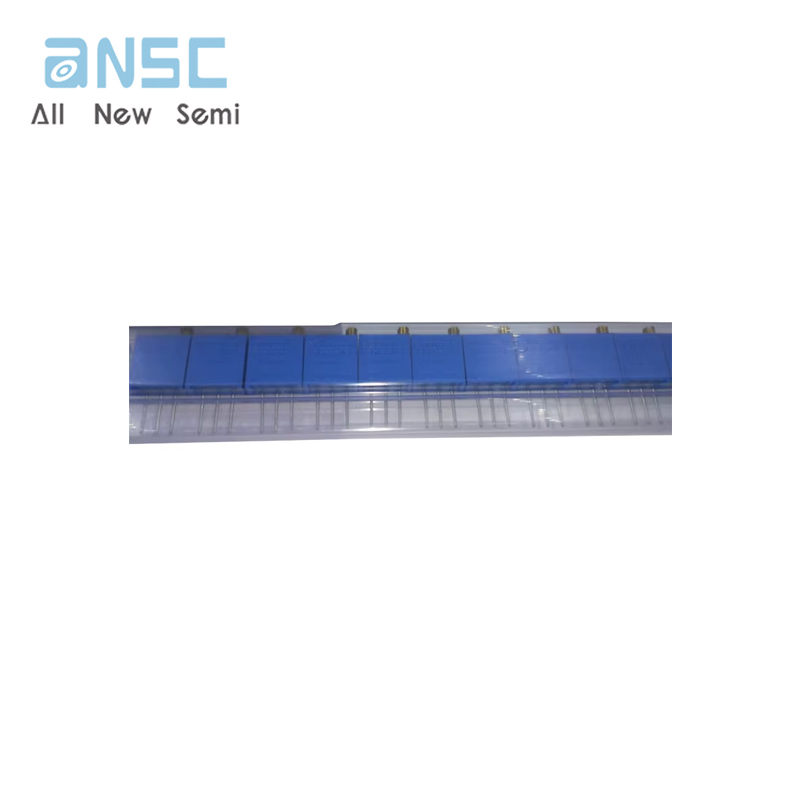

Product Photos
Product datasheet
For more information, please download
