Product Details
Product Description:
The ADP-2-1W+ from Mini-Circuits is a high-performance, 2-way core, wire power splitter designed for signal conditioning applications.
This compact SMD/SMT package measures 7.87 mm x 5.59 mm x 4.11 mm, making it ideal for space-constrained designs.
The splitter is designed to operate over a frequency range of 1 MHz to 650 MHz, with an insertion loss of 0.5 dB and an isolation of 20 dB.
Features:
2-way core, wire power splitter
Frequency range: 1 MHz to 650 MHz
Insertion loss: 0.5 dB
Isolation: 20 dB
Compact SMD/SMT package
Operating temperature range: -40°C to +85°C
RoHS compliant
Applications:
Signal conditioning in wireless communication systems
Splitting and combining signals in radar and satellite communication systems
Filtering and conditioning signals in medical and industrial applications
Product Description
| TYPE# | DESCRIPTION |
| PART# | ADP-2-1W+ |
| Category | RF and Wireless |
| RF Power Dividers/Splitters | |
| Manufacturer | Mini-Circuits |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| / | |
| Part Status | Active |
| Insertion Loss | 0.5dB |
| Frequency | 1 MHz ~ 650 MHz |
| Specifications | Isolation (Min) 20dB, 3° Imbalance (Max) |
| Size / Dimension | 0.310" L x 0.220" W x 0.162" H (7.87mm x 5.58mm x 4.11mm) |
| Package / Case | 6-SMD, Flat Leads |
| Base Product Number | ADP-2 |

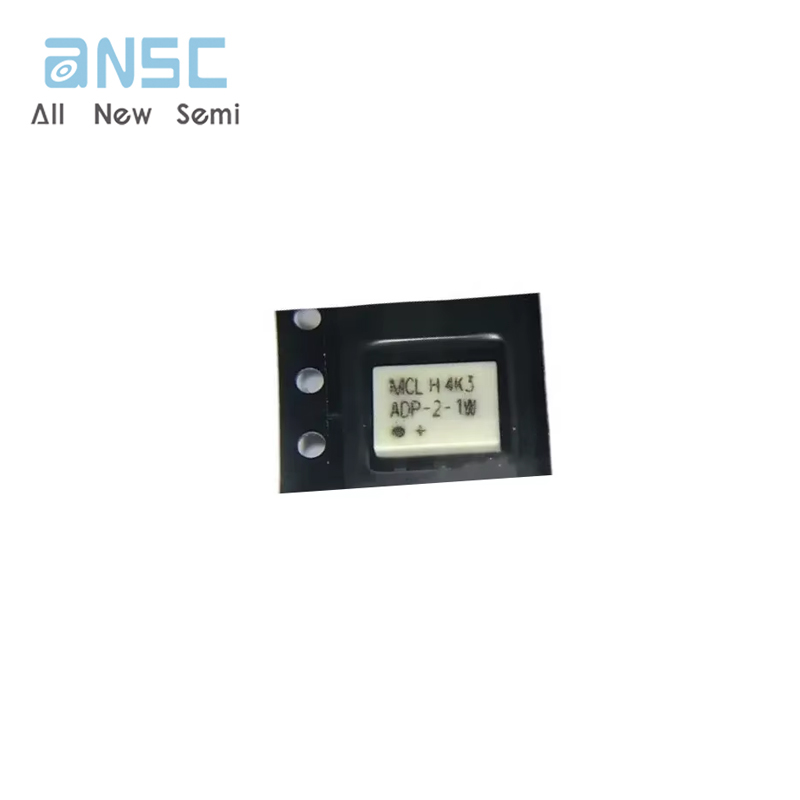

Product Photos

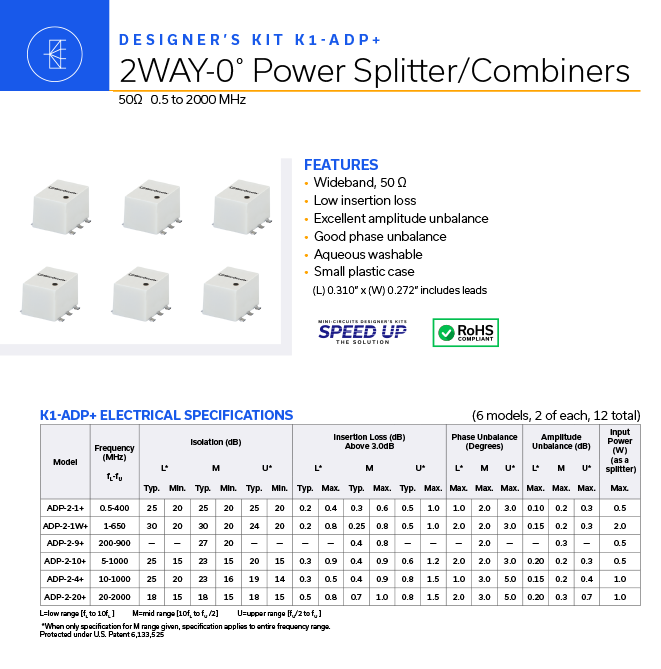

Product datasheet
For more information, please download
