Brief Description: The IXFP34N65X2M is a high-power N-channel MOSFET (Metal-Oxide-Semiconductor Field-Effect Transistor) , designed for high-current and high-voltage applications. It features a TO-220-3 full pack, isolated tab package and is available in a tube packaging.
Features:
-
High-power N-channel MOSFET with a continuous drain current of 34A at 25°C
-
High voltage rating of 650V drain-to-source voltage
-
Low on-resistance of 100mΩ at 17A and 10V
-
High gate charge of 56nC at 10V
-
High input capacitance of 3230pF at 25V
-
Operating temperature range of -55°C to 150°C
-
Power dissipation of 40W at 25°C
-
Drive voltage range of 10V
-
Gate-source voltage range of ±30V
-
Threshold voltage of 5V at 1.5mA
Application Grade:
The IXFP34N65X2M is designed for high-power, high-voltage
applications such as:
-
Power supplies
-
Motor drives
-
Power conversion
-
Renewable energy systems
-
Industrial automation
Applications:
-
High-power switching applications
-
High-voltage power supplies
-
Motor control systems
-
Power conversion systems
-
Renewable energy systems
-
Industrial automation systems
Overall, the IXFP34N65X2M is a high-power, high-voltage MOSFET designed for demanding applications that require high current and voltage handling capabilities. Its robust design and high-performance features make it an ideal choice for a wide range of power electronics applications.
Product Description
|
Type |
Description |
|---|---|
|
Category |
Discrete Semiconductor Products Transistors FETs, MOSFETs Single FETs, MOSFETs |
|
Mfr |
/ |
|
Series |
HiPerFET™, Ultra X2 |
|
Packaging |
Tube |
|
Part Status |
Active |
|
FET Type |
N-Channel |
|
Technology |
MOSFET (Metal Oxide) |
|
Drain to Source Voltage (Vdss) |
650 V |
|
Current - Continuous Drain (Id) @ 25°C |
34A (Tc) |
|
Drive Voltage (Max Rds On, Min Rds On) |
10V |
|
Rds On (Max) @ Id, Vgs |
100mOhm @ 17A, 10V |
|
Vgs(th) (Max) @ Id |
5V @ 1.5mA |
|
Gate Charge (Qg) (Max) @ Vgs |
56 nC @ 10 V |
|
Vgs (Max) |
±30V |
|
Input Capacitance (Ciss) (Max) @ Vds |
3230 pF @ 25 V |
|
FET Feature |
- |
|
Power Dissipation (Max) |
40W (Tc) |
|
Operating Temperature |
-55°C ~ 150°C (TJ) |
|
Grade |
- |
|
Qualification |
- |
|
Mounting Type |
Through Hole |
|
Supplier Device Package |
TO-220 Isolated Tab |
|
Package / Case |
TO-220-3 Full Pack, Isolated Tab |
|
Base Product Number |
IXFP34 |

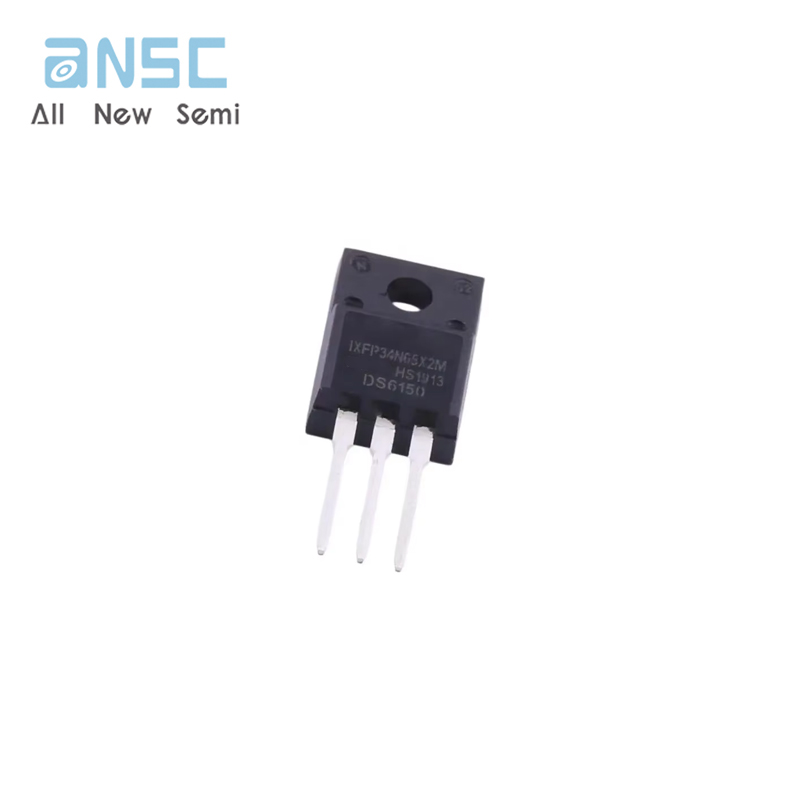

Actual image of the product
