Product Details
PRODUCT FEATURES
• Ultrafast Recovery Times
• Soft Recovery Characteristics
• Popular TO-247 Package or Surface Mount D3PAK Package
• Low Forward Voltage
• Low Leakage Current
PRODUCT BENEFITS
• Low Losses
• Low Noise Switching
• Cooler Operation
• Higher Reliability Systems
• Increased System Power Density
PRODUCT APPLICATIONS
• Anti-Parallel Diode
-Switchmode Power Supply
-Inverters
• Free Wheeling Diode
-Motor Controllers
-Converters
-Inverters
• Snubber Diode
• PFC
Product Description
|
Type |
Description |
|---|---|
|
Category |
Discrete Semiconductor Products Diodes Rectifiers Single Diodes |
|
Mfr |
/ |
|
Series |
- |
|
Packaging |
Tube |
|
Part Status |
Active |
|
Technology |
Standard |
|
Voltage - DC Reverse (Vr) (Max) |
1200 V |
|
Current - Average Rectified (Io) |
60A |
|
Voltage - Forward (Vf) (Max) @ If |
2.5 V @ 60 A |
|
Speed |
Fast Recovery =< 500ns, > 200mA (Io) |
|
Reverse Recovery Time (trr) |
400 ns |
|
Current - Reverse Leakage @ Vr |
250 µA @ 1200 V |
|
Capacitance @ Vr, F |
- |
|
Mounting Type |
Through Hole |
|
Package / Case |
TO-247-2 |
|
Supplier Device Package |
TO-247 [B] |
|
Operating Temperature - Junction |
-55°C ~ 175°C |
|
Base Product Number |
APT60D120 |

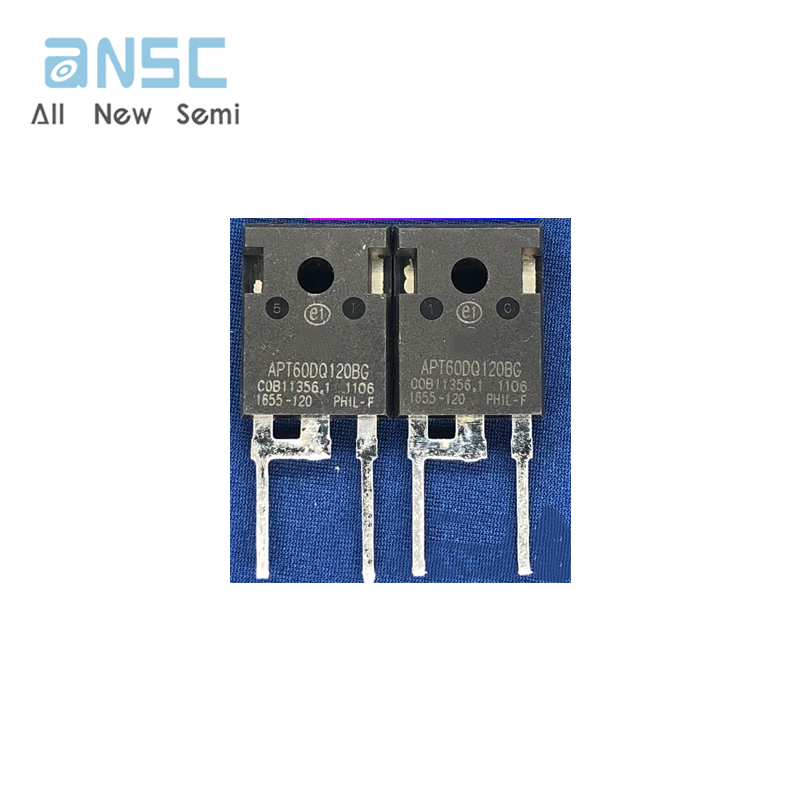

Actual image of the product
