Product Details
AMPSEAL Product Line
Wire-to-Wire
Applies To Wire/Cable
Connector
Housing
Product Description
|
Type |
Description |
|---|---|
|
Category |
Connectors, Interconnects Rectangular Connectors Headers, Male Pins |
|
Mfr |
/ |
|
Series |
AMPSEAL |
|
Packaging |
Tray |
|
Part Status |
Active |
|
Connector Type |
Header |
|
Contact Type |
Male Pin |
|
Pitch - Mating |
0.157" (4.00mm) |
|
Number of Positions |
35 |
|
Number of Rows |
3 |
|
Row Spacing - Mating |
0.157" (4.00mm) |
|
Number of Positions Loaded |
All |
|
Style |
Board to Cable/Wire |
|
Shrouding |
Shrouded - 4 Wall |
|
Mounting Type |
Panel Mount, Through Hole |
|
Termination |
Solder |
|
Fastening Type |
Locking Ramp |
|
Contact Length - Mating |
- |
|
Contact Length - Post |
- |
|
Overall Contact Length |
- |
|
Insulation Height |
- |
|
Contact Shape |
Circular |
|
Contact Finish - Mating |
Tin |
|
Contact Finish Thickness - Mating |
- |
|
Contact Finish - Post |
- |
|
Contact Material |
Brass |
|
Insulation Material |
Polybutylene Terephthalate (PBT), Glass Filled |
|
Features |
Mounting Flange, Sealed |
|
Operating Temperature |
-40°C ~ 105°C |
|
Ingress Protection |
- |
|
Material Flammability Rating |
- |
|
Insulation Color |
Black |
|
Current Rating (Amps) |
Varies by Wire Gauge |
|
Voltage Rating |
250VAC |
|
Mated Stacking Heights |
- |
|
Contact Finish Thickness - Post |
- |
|
Applications |
Automotive, Industrial |
|
Base Product Number |
776231 |

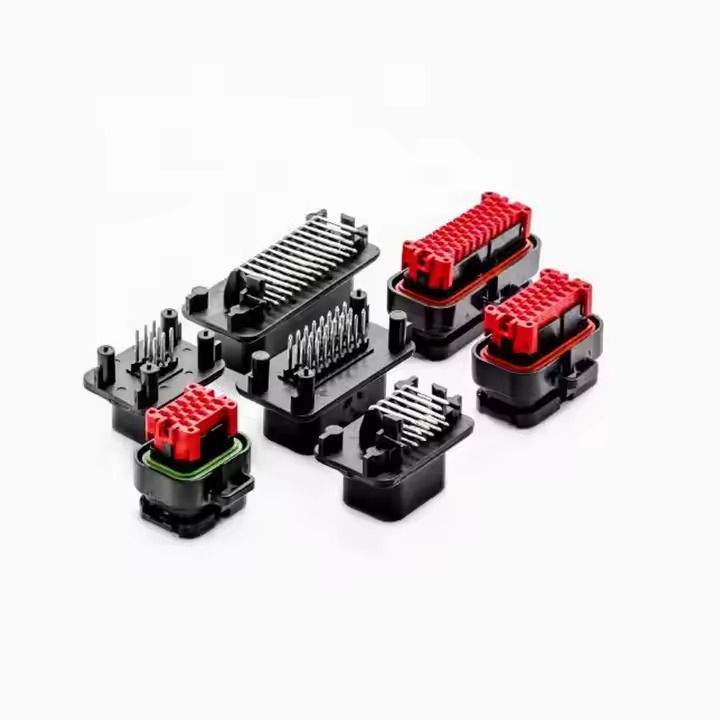

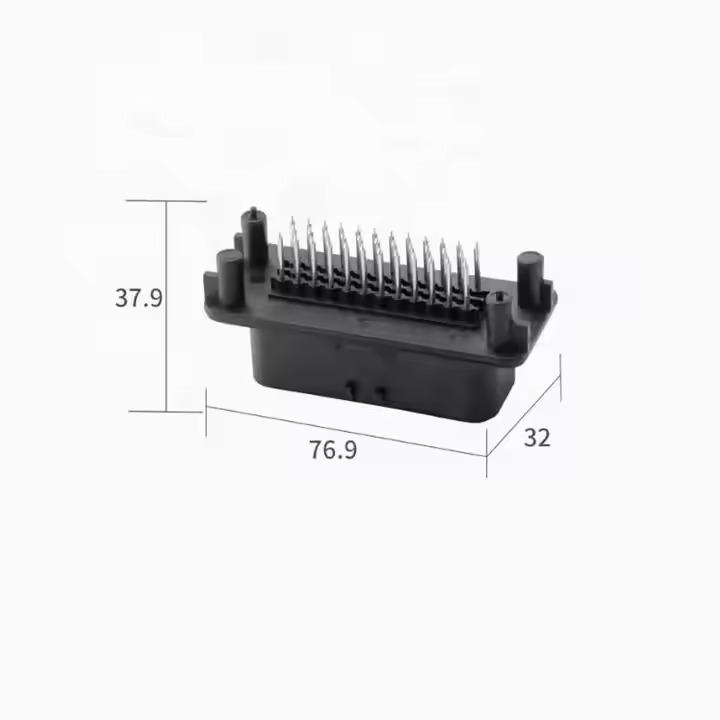

Actual image of the product

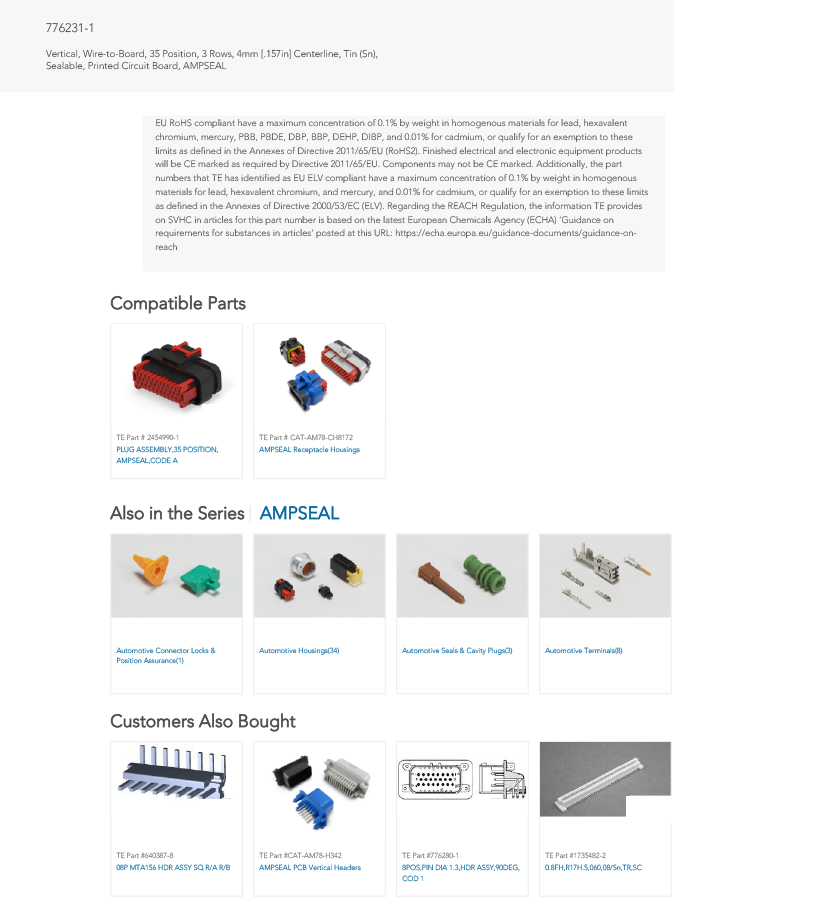

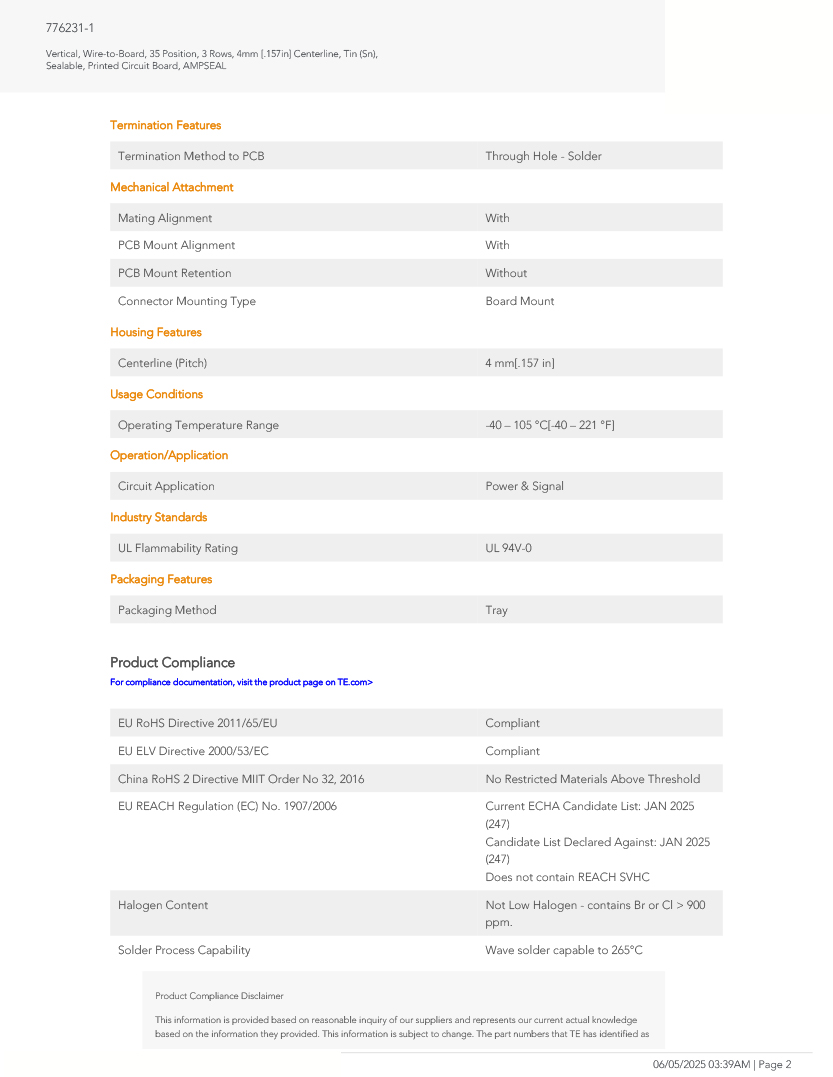

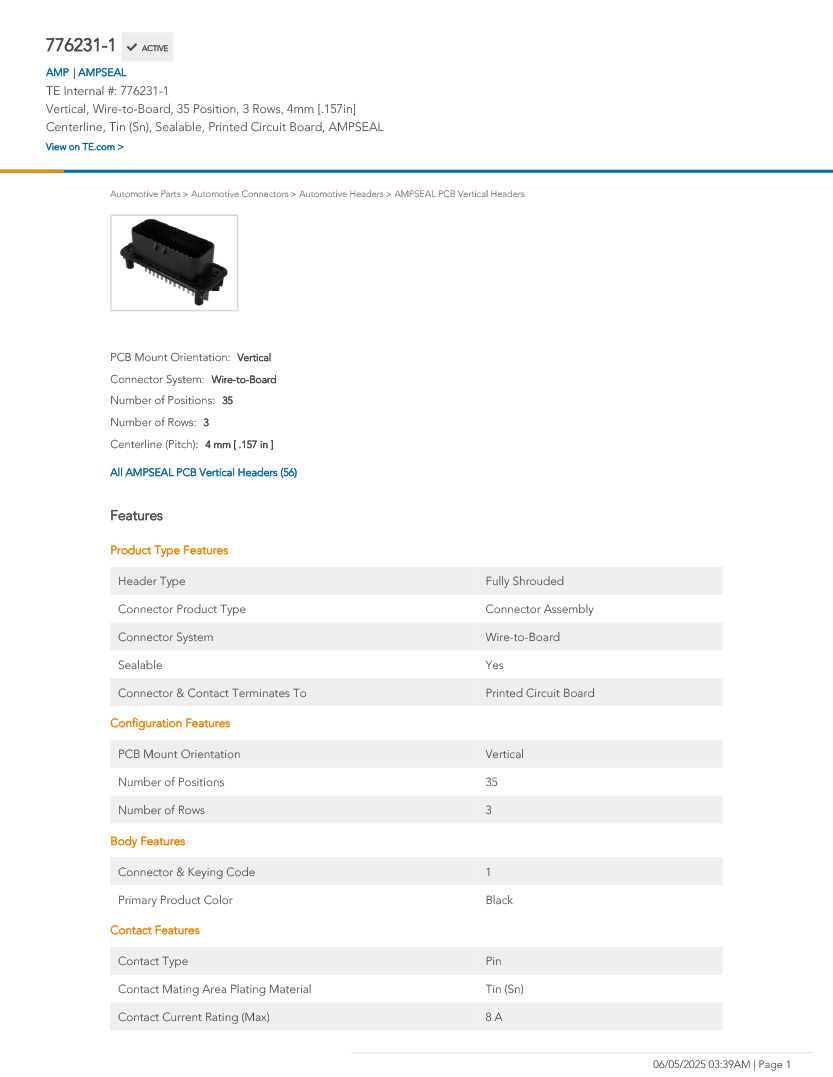

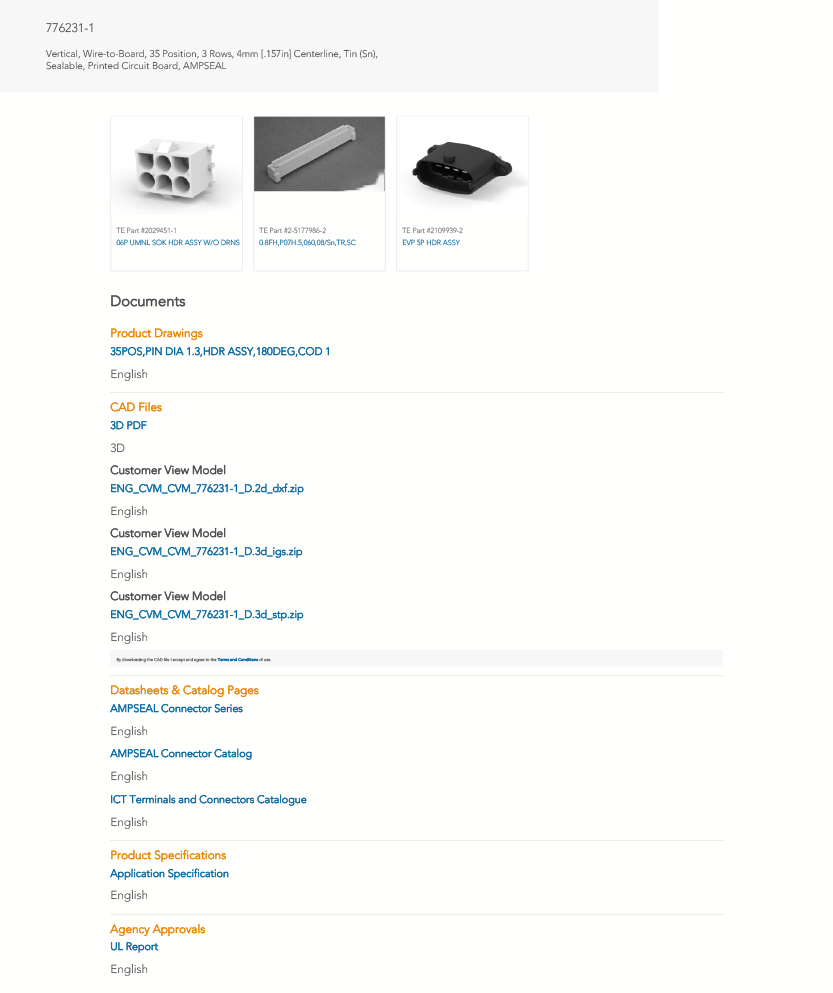

Product datasheet
