Product Details
This model has an outer diameter of Ø48mm with a through-hole hollow shaft. It is designed for general factory automation applications and servo motors as feedback devices. Very compact and robust design. Available with line driver (A, B, Z) outputs and commutation outputs (U, V, W).
| Product Category | Rotary Encoder |
| Outer Diameter | 48 mm |
| Input Voltage | 5 V DC |
| Operating Temperature Range | –20 ~ +85°C |
| Shaft Diameter | 8 mm |
| Current Consumption | 200 mA |
| Output Form | Line Driver |
| Resolution (PPR) | 1024 |
| Maximum Speed (RPM) | 6000 |
| Output Phase | A, B, Z, U, V, W |

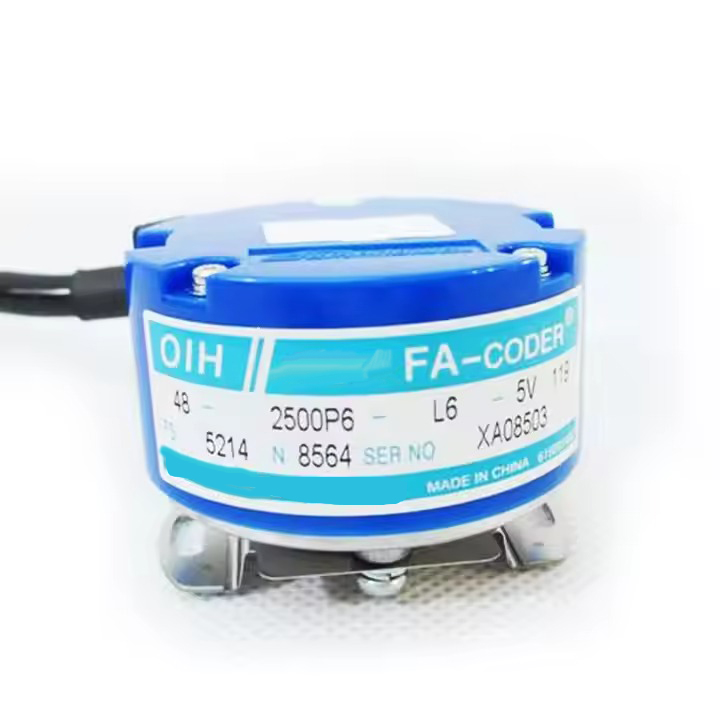

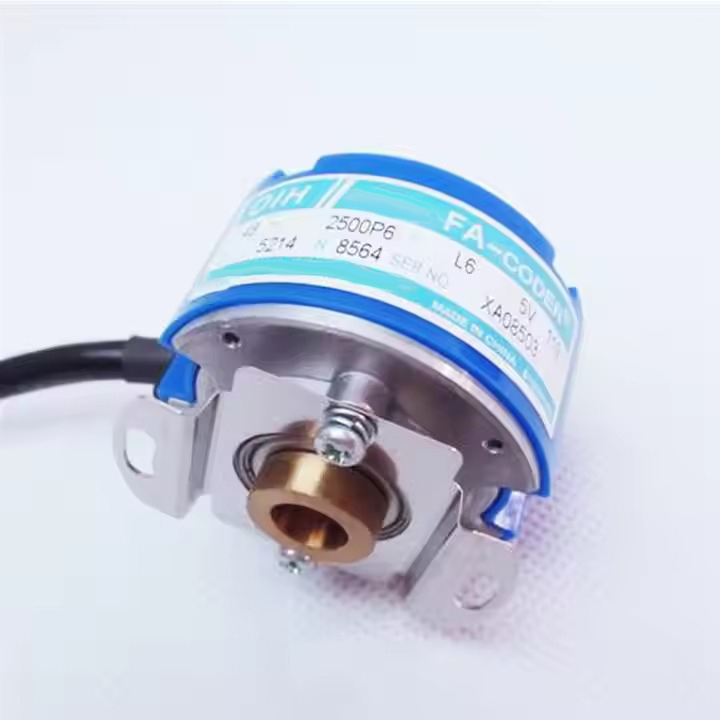

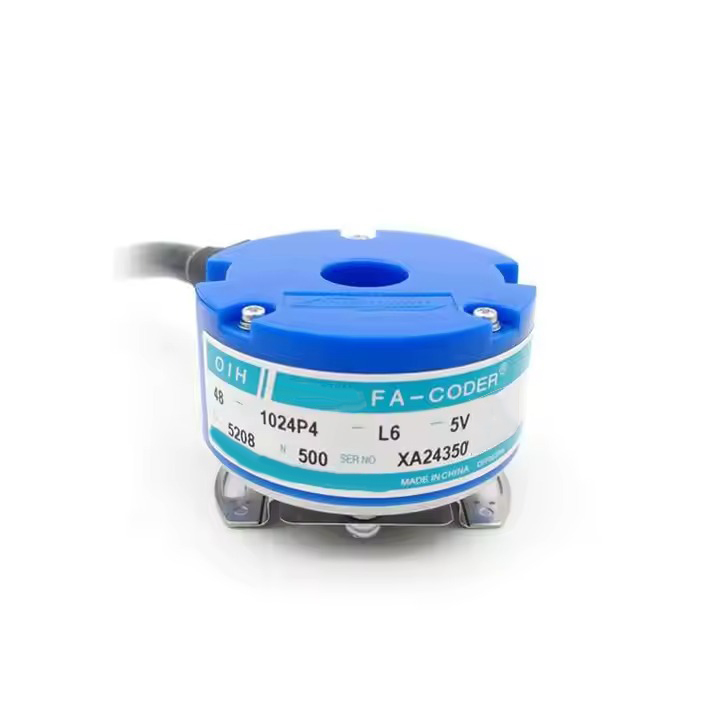

Product Photos
Product Description
