Product Features

1. High performance compact single phase filter with faston/nut

2. Good common mode and differential mode interference suppression

Performance 3. Universal, compact, easy to install and use

4. Optional medical type (M type)

5. Different output connections

Product Applications

Can be used in digital systems (especially switching power supplies) to suppress continuous or intermittent pulse interference,

white appliances with frequency converters, inverter-based control systems, medical equipment and medical typical applications

 (low current leakage).

Product Description

Technical data

Rated voltage: 125/250VAC or customized

Operating frequency: 50/60Hz

Rated current: 1-50A

Withstand voltage test: 1450VDC, 2 seconds (line to line)

2250VDC, 2 seconds (line to ground)

Climate category: 25/85/21 (-25ºC to +85ºC)

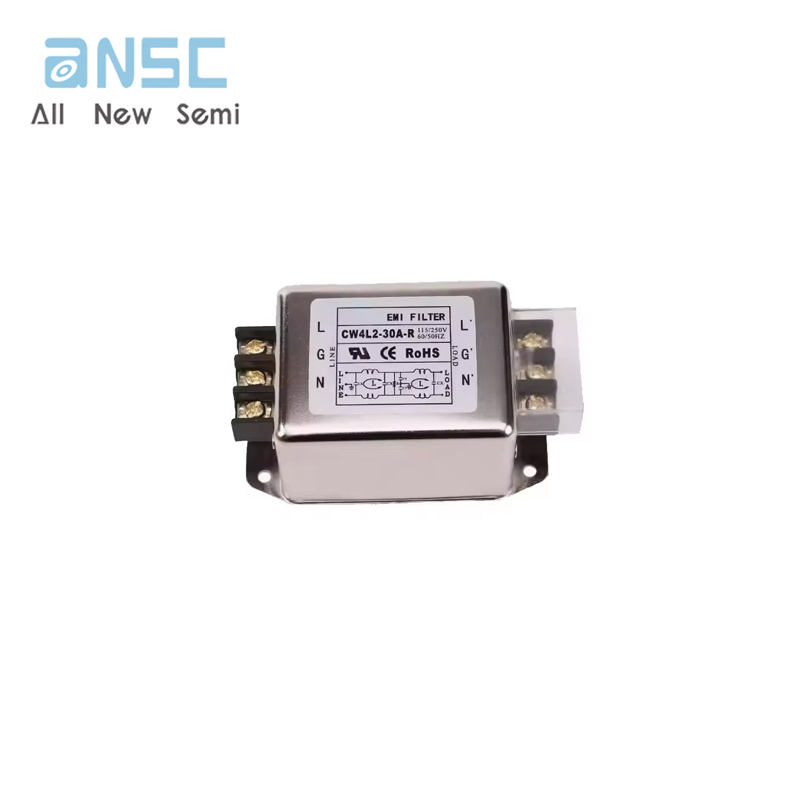

Product Photos
