Product Details
Features
• Very sharp reverse characteristic
• Low reverse current level
• Very high stability
• Low noise
• Available with tighter tolerances
• Lead (Pb)-free component
• Component in accordance to RoHS 2002/95/EC
and WEEE 2002/96/EC
Applications
• Voltage stabilization
Product Description
| Type# | Description |
| Part# | BZX55C5V1-TR |
| Category | Discrete Semiconductor Products |
| Diodes | |
| Zener | |
| Single Zener Diodes | |
| Mfr | Vishay |
| Series | BZX55 |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Part Status | Active |
| Voltage - Zener (Nom) (Vz) | 5.1 V |
| Tolerance | - |
| Power - Max | 500 mW |
| Impedance (Max) (Zzt) | 35 Ohms |
| Current - Reverse Leakage @ Vr | 100 nA @ 1 V |
| Voltage - Forward (Vf) (Max) @ If | 1.5 V @ 200 mA |
| Operating Temperature | 175°C |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Mounting Type | Through Hole |
| Package / Case | DO-204AH, DO-35, Axial |
| Supplier Device Package | DO-204AH (DO-35) |
| Base Product Number | BZX55C5V1 |

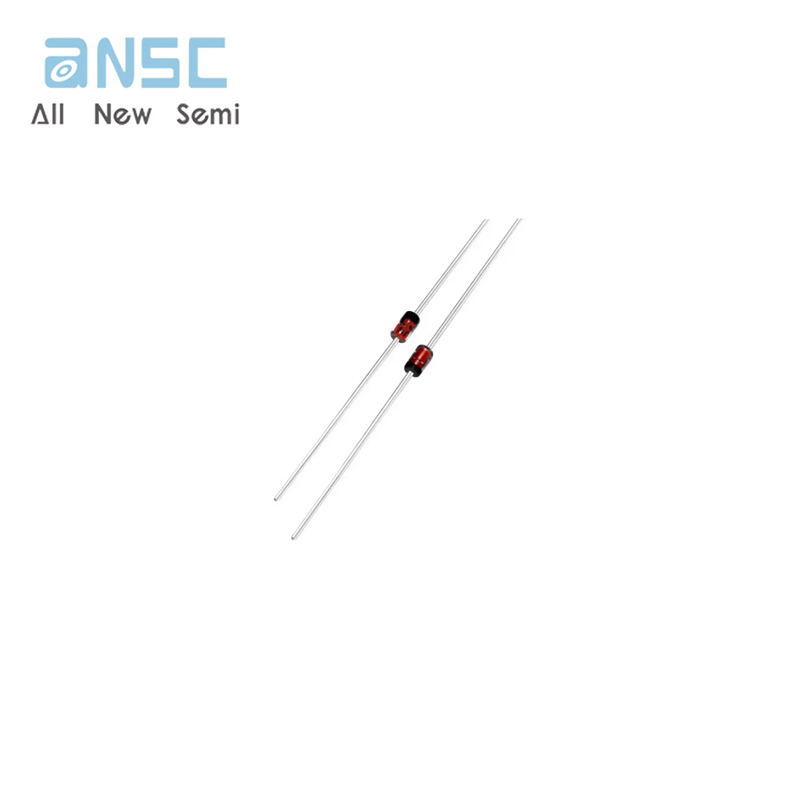

Product Photos

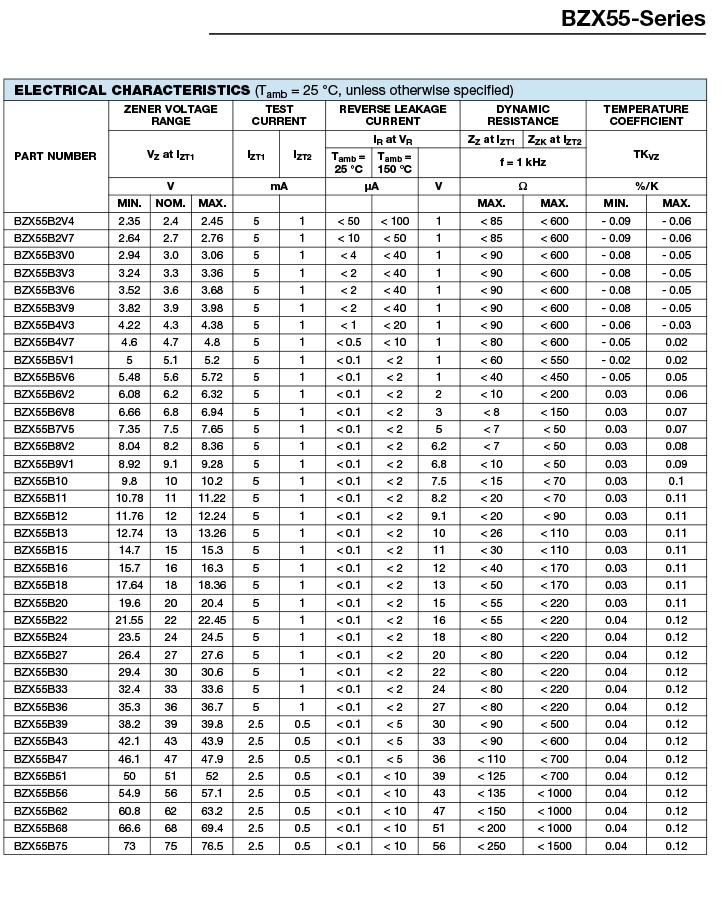

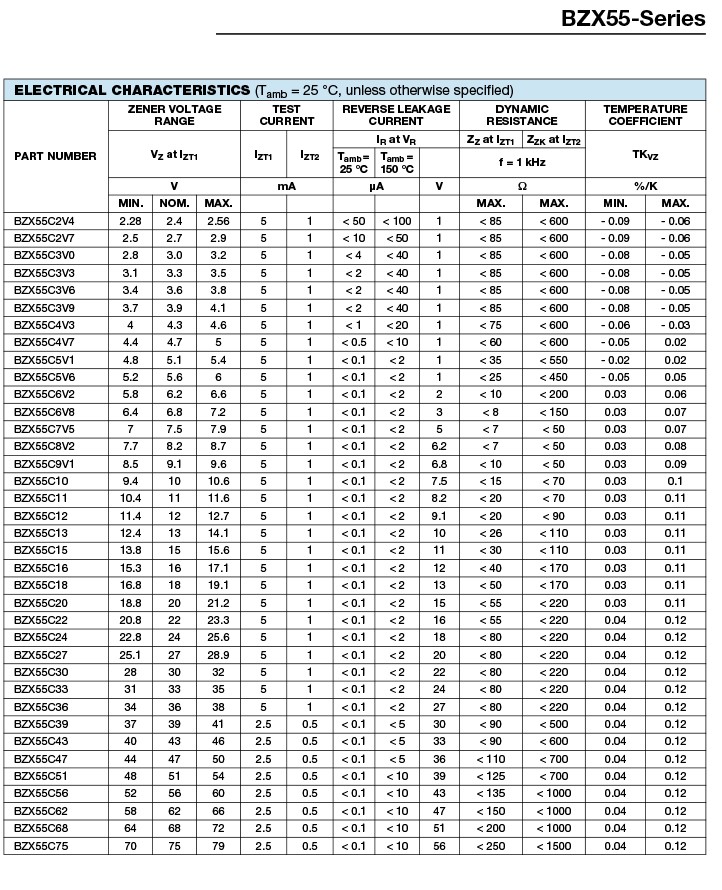

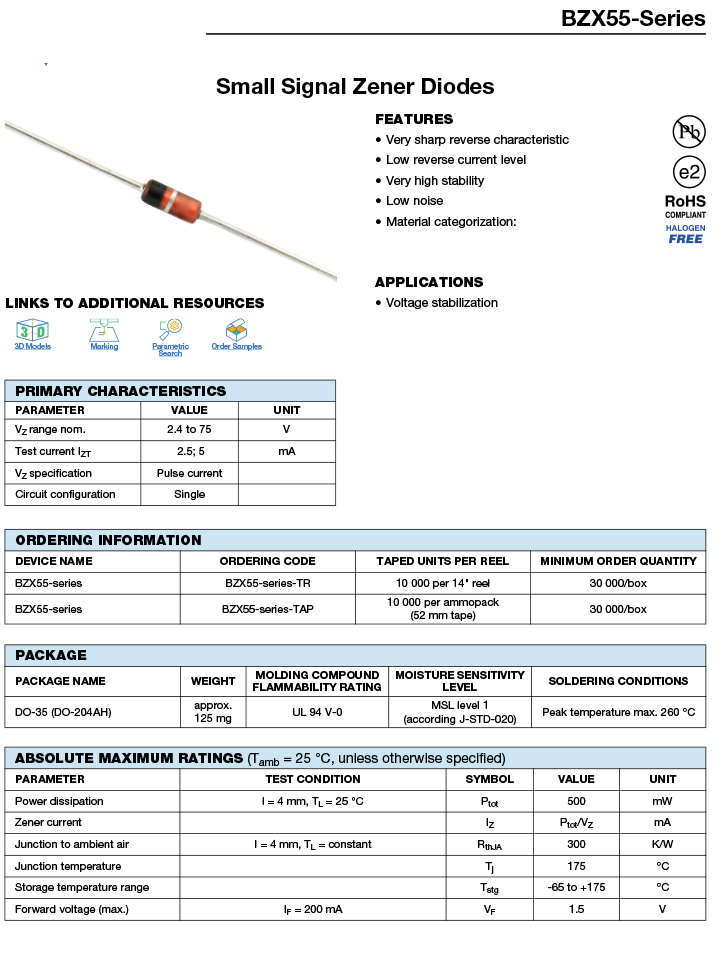

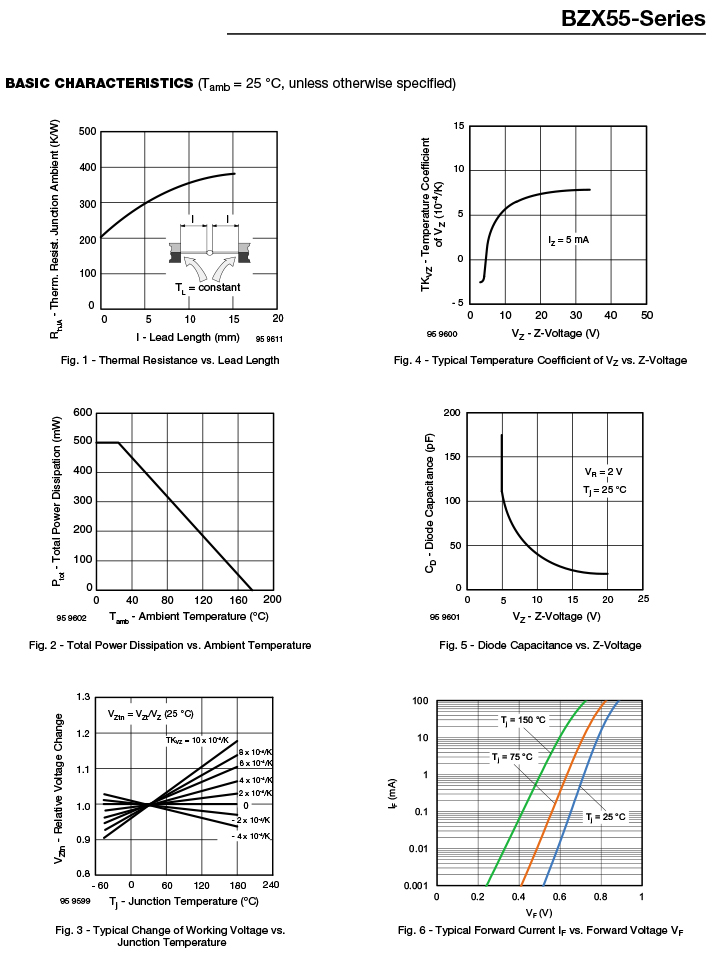

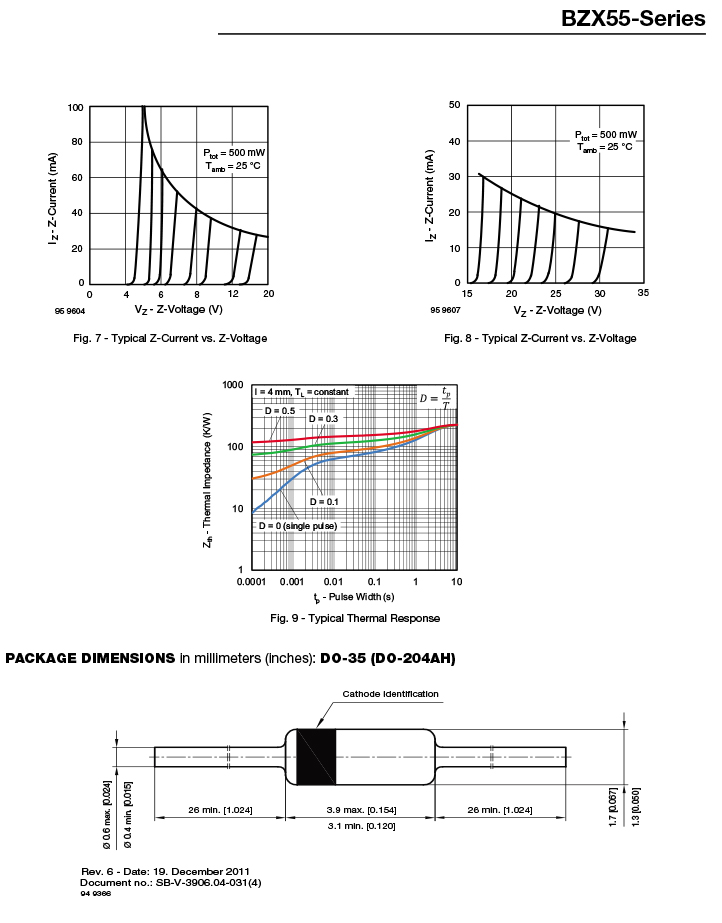

Product datasheet
For more information, please download
