Product Details
Features
• Low On-Resistance
• Very Low Gate Threshold Voltage, 0.9V Max.
• Fast Switching Speed
• Low Input/Output Leakage
• Ultra-Small Surface Mount Package
• Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
• Halogen and Antimony Free. “Green” Device (Note 3)
• ESD Protected Gate
• For automotive applications requiring specific change
control (i.e. parts qualified to AEC-Q100/101/200, PPAP
capable, and manufactured in IATF 16949 certified facilities),
please contact us or your local Diodes representative.
Product Description
|
Type |
Description |
|---|---|
|
Category |
Discrete Semiconductor Products Transistors FETs, MOSFETs FET, MOSFET Arrays |
|
Manufacturer |
/ |
|
Series |
- |
|
Packaging |
Tape & Reel (TR) Cut Tape (CT) |
|
Part Status |
Active |
|
Technology |
MOSFET (Metal Oxide) |
|
Configuration |
2 N-Channel (Dual) Common Drain |
|
FET Feature |
Logic Level Gate |
|
Drain to Source Voltage (Vdss) |
20V |
|
Current - Continuous Drain (Id) @ 25°C |
8.58A |
|
Rds On (Max) @ Id, Vgs |
14.5mOhm @ 9.4A, 4.5V |
|
Vgs(th) (Max) @ Id |
1V @ 250µA |
|
Gate Charge (Qg) (Max) @ Vgs |
16.5nC @ 4.5V |
|
Input Capacitance (Ciss) (Max) @ Vds |
1495pF @ 10V |
|
Power - Max |
880mW |
|
Operating Temperature |
-55°C ~ 150°C (TJ) |
|
Mounting Type |
Surface Mount |
|
Package / Case |
8-TSSOP (0.173", 4.40mm Width) |
|
Supplier Device Package |
8-TSSOP |
|
Base Product Number |
DMN2016 |

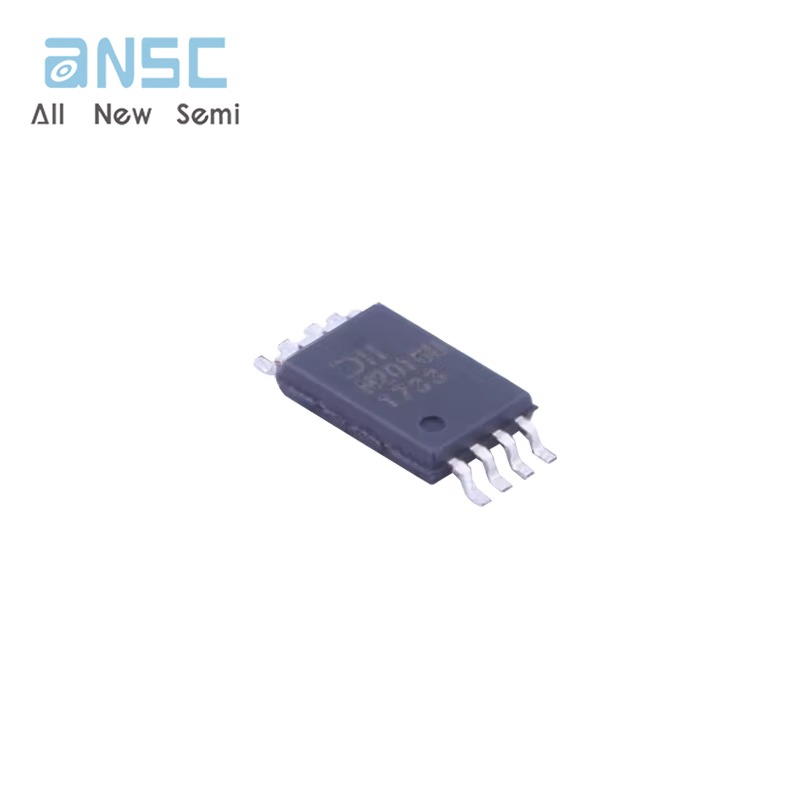

Actual image of the product
