Product Details
CO-B4 is a high-resolution carbon monoxide sensor that can detect CO gas at a minimum of 4ppb. It has good stability and is very suitable for environmental air quality monitoring systems and instruments.
Features of carbon monoxide sensor CO-B4:
Resolution up to 4ppb
High sensitivity, easy signal processing
Good linearity
Main parameters of carbon monoxide sensor CO-B4:
Overload: 2000ppm
Response time: < 15s
Size: Φ32.3×16.5
Carbon monoxide detection range: 0-1000ppm
Sensitivity: 420 to 650 nA/ppm
Zero point: -130 ~ 30nA
Typical applications of carbon monoxide sensor CO-B4:
Air quality trace carbon monoxide monitoring, carbon monoxide gas transmitter
Product Description
| Specifications: CO-B4 |
| Resolution: 0.1PPM |
| Accuracy: ±5% |
| Measuring range: 0ppm-3000ppm |
| Detectable gas type: CO carbon monoxide |
| Working voltage: 5V |
| Working current: 100µA |
| Working humidity: 5~95%RH (non-condensing) |
| Working temperature: 25 |
| Power supply current: 20 |
| Power supply voltage: 5 |
| Sensor type: electrochemical sensor |
| Packaging specification: 1 |
| Output signal: microcurrent |

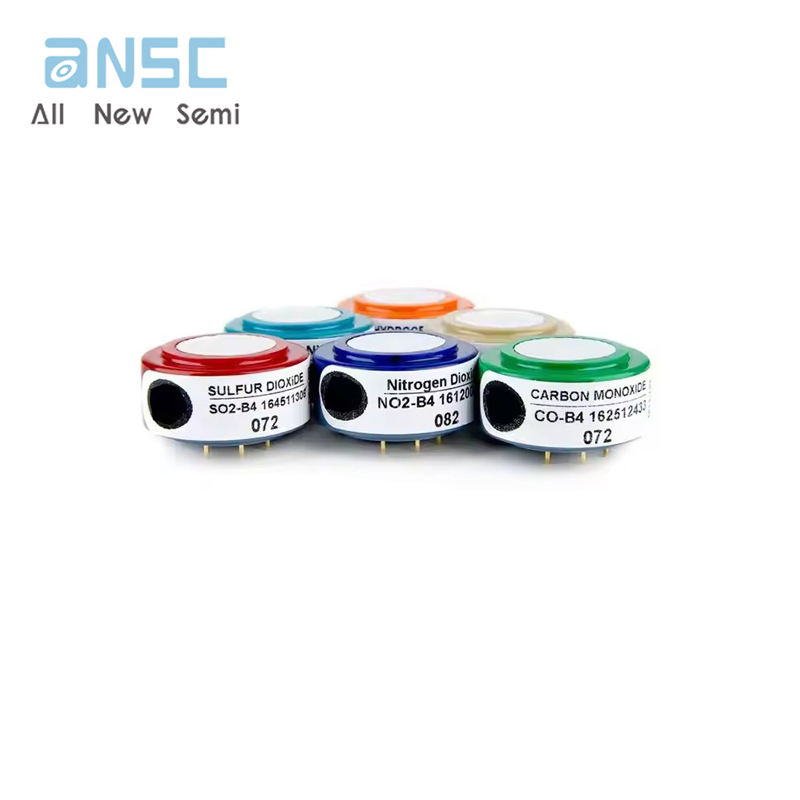

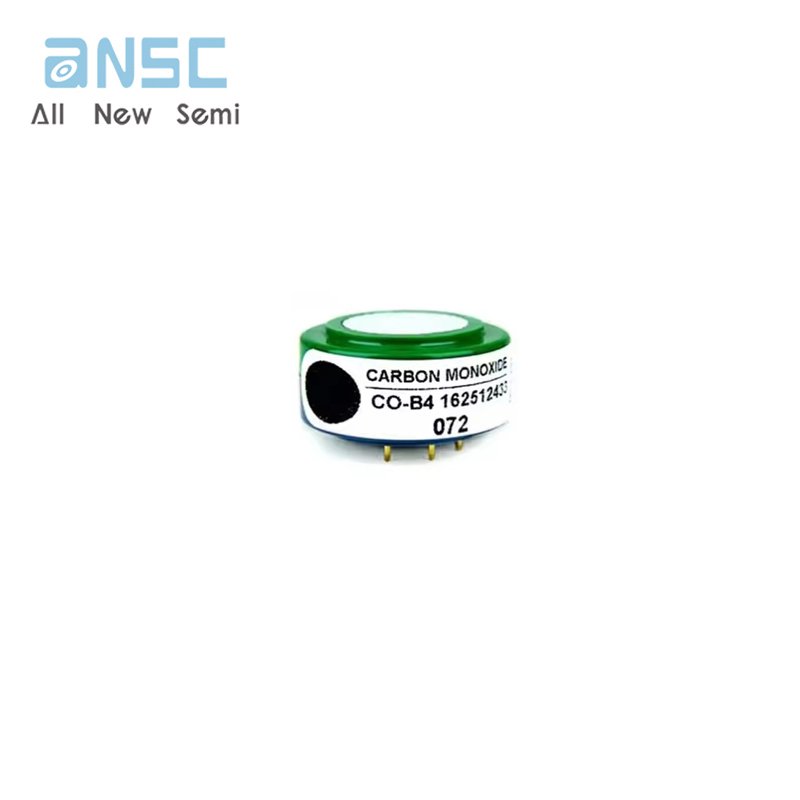

Product Photos

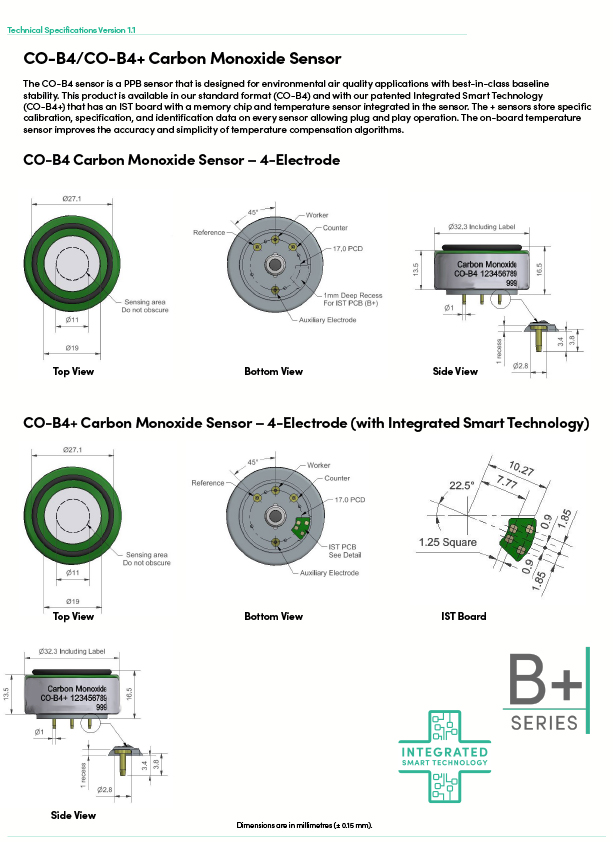

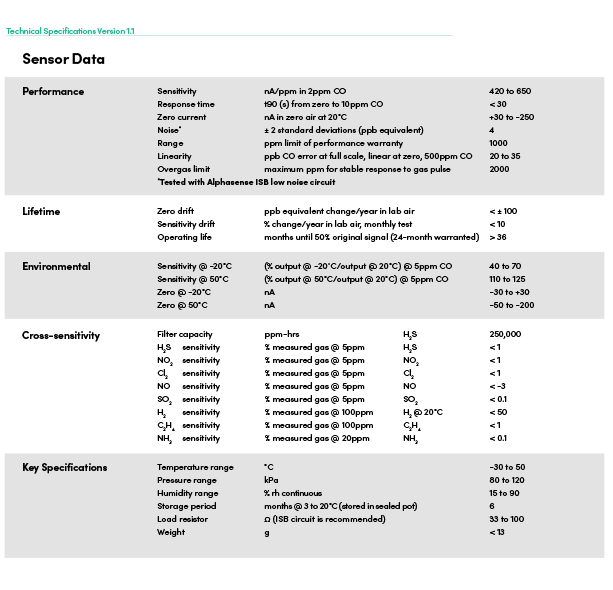

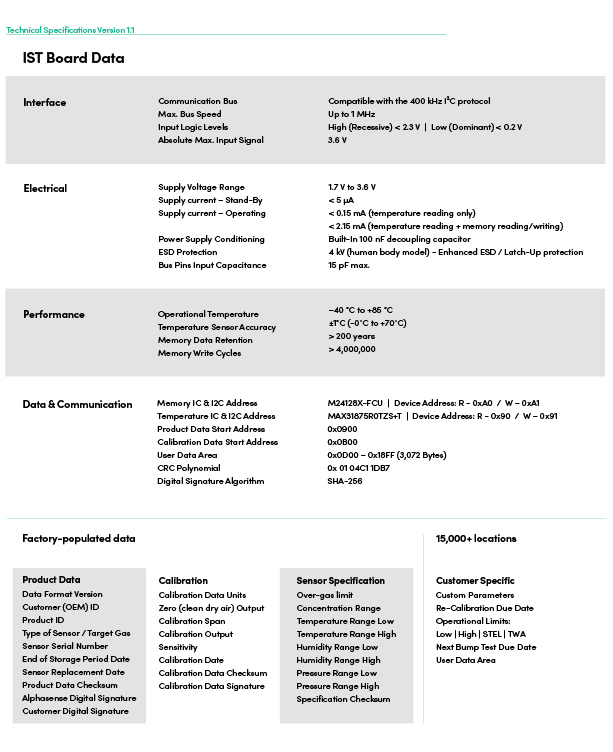

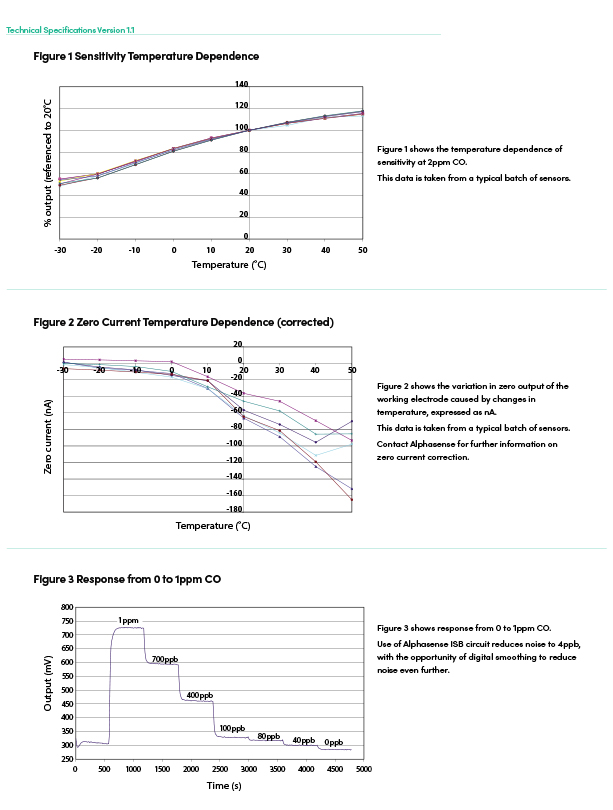

Product datasheet
For more information, please download
