Product Description

Product Introduction:

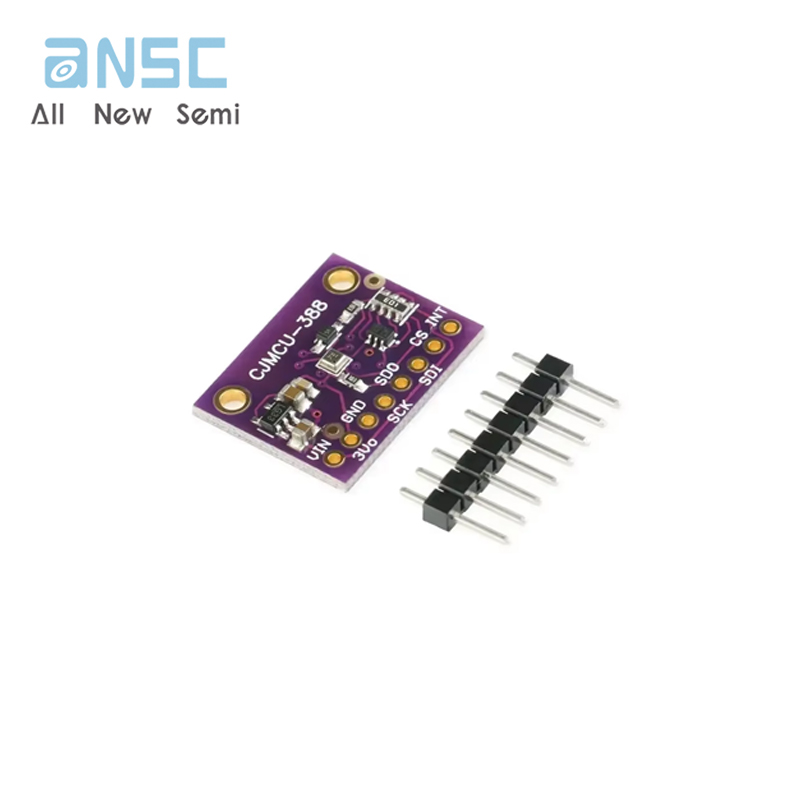

CJMCU-388BMP388 digital pressure sensor is a very small low power and low noise 24-bit sensor. This absolute pressure sensor is based on a mature sensing principle for pressure and temperature measurement. The BMP388 sensor has excellent design flexibility and is specifically designed for a variety of altitude tracking applications. The sensor has a best-in-class temperature coefficient offset (TCO) between 0°C and 65°C, which can be used for accurate altitude measurement over a wide temperature range. The digital sensor has low power consumption of 3.4μA at 1Hz and a wide measurement range from 300hPa to 1250hPa.

  Typical Applications

.Vertical speed indication (e.g., ascent/descent speed)

.Internet of Things

.Enhanced GPS navigation

(e.g., time to first fix improvement, dead reckoning, slope detection). Indoor navigation positioning (Flor

detection, elevator detection)

.Outdoor navigation, leisure and sports applications. Weather forecast

.Healthcare applications (e.g., spirometry)

, fitness applications such as enhanced calorie detection

.AR & VR applications.

.Environmental perception;

    Target devices

. Flying drones

. Mobile phones, tablets, GPS devices, etc. Navigation systems

. Portable medical devices

. Home weather stations.

. Watches

. Large household appliances

   Main parameters

Supply voltage:

Digital interface: IC (up to 3.4 MHz) and SPI (3-wire and 4-wire, up to 10 MHz)

Supply voltage: VDD main power supply voltage range: 1.71V to 3.6V

VDDIO interface voltage range: 1.2V to 3.6 V

Relative accuracy: typical ±8Pa, equivalent to ±0.50M

(700…900 hPa, 25.…40°C)

Current consumption: 3.4 microamperes at 1 Hz for pressure and temperature

2.0 microamperes in sleep mode

Operating range: -40

+85°C, 300 1250 hPa

Product Photos
