Product Features
Main features of oxygen sensor KE-50:
·Long life (KE-50 10 years)
·Not affected by CO2, CO, H2S, NOx, H2
·Low cost
·Work at room temperature
·Stable signal output
·No external power supply required
·No heating required

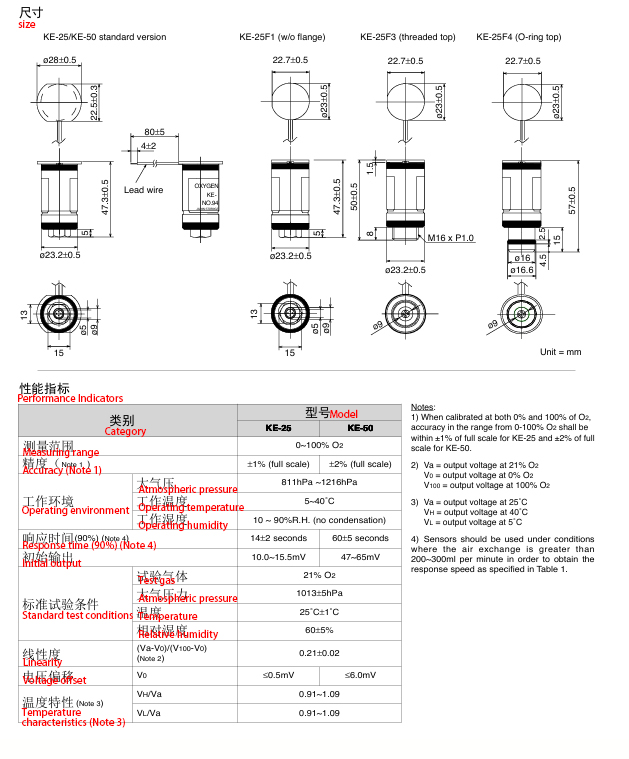

Oxygen sensor KE-50 product performance parameters:
Measuring range 0-99% O2
Accuracy ±2% (full range) KE-50
Working temperature 5–40 ℃
Storage temperature -20–+60 ℃
Response time KE-50 60±5 seconds
Initial output KE-50 47.0-66.0mv
Expected life KE-50 10 years
Product Applications
Medical
Biology: Oxygen incubator
Food industry: cold storage room, greenhouse
Safety industry: air conditioning oxygen detector fire detection
Power industry: SF6 power switch cabinet, oxygen detection

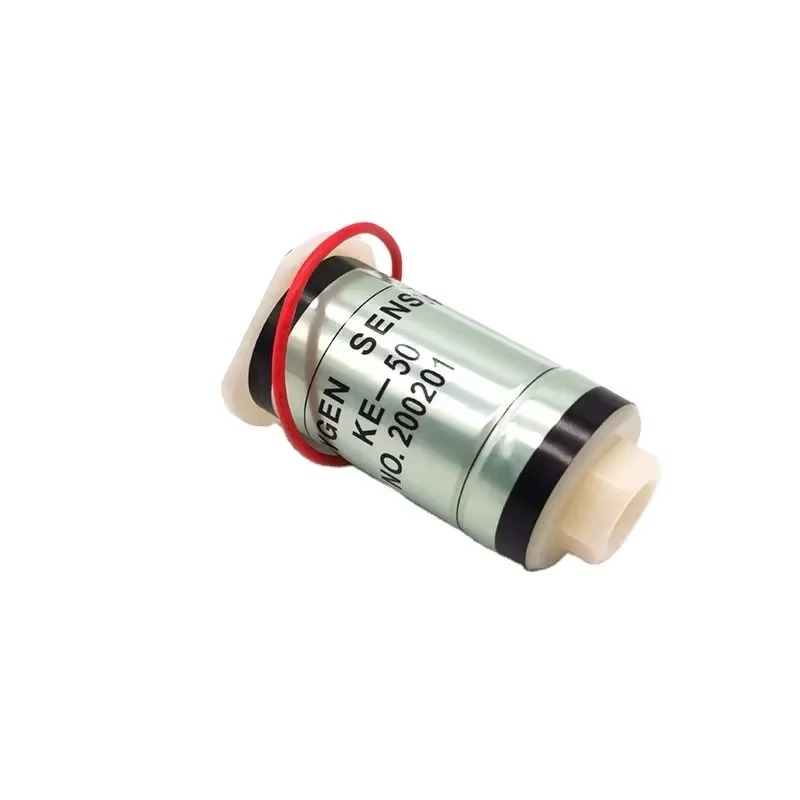

Product Photos
| Specifications: KE-50 |
| Resolution: 1 |
| Accuracy: ±5% |
| Measurement range: 100% |
| Detectable gas type: O2 |
| Working voltage: 5V |
| Working current: 20mA |
| Working humidity: 5~95%RH (non-condensing) |
| Working temperature: 25 |
| Power supply current: 20 |
| Power supply voltage: 5 |
| Sensor type: electrochemical sensor |
| Packaging specification: 1 |
| Output signal: microcurrent |
