Product Features

The GM35 series motor by iPower Motors is the ultimate brushless gimbal motor for SLR and similar weight Cameras. This motor is designed for large-scale multi-rotor platforms looking to lift SLR sized gear – 1.5KG/cm Torque. The principle of the camera stabilization using brushless direct drive motors, In fact, gimbal based on BLDC motors is very similar to regular gimbal based on hobby servo.

Product Details

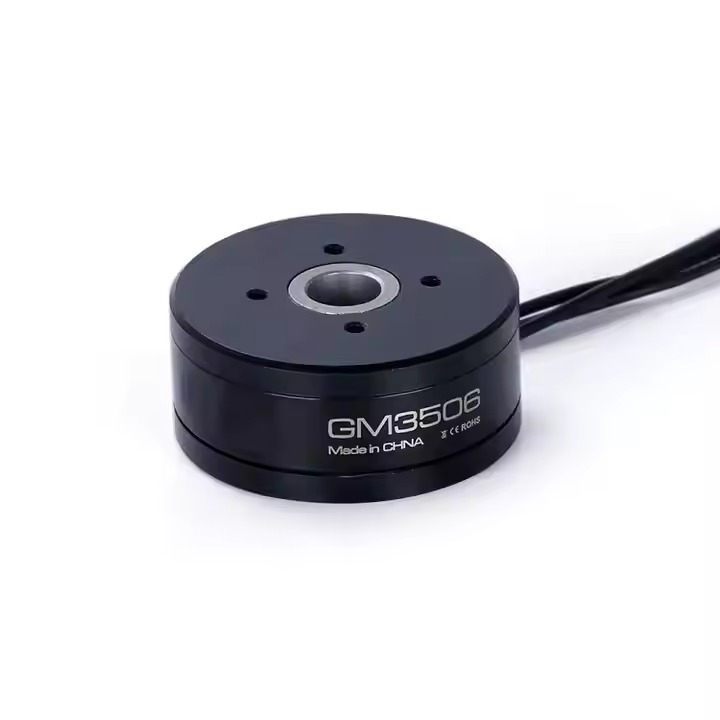

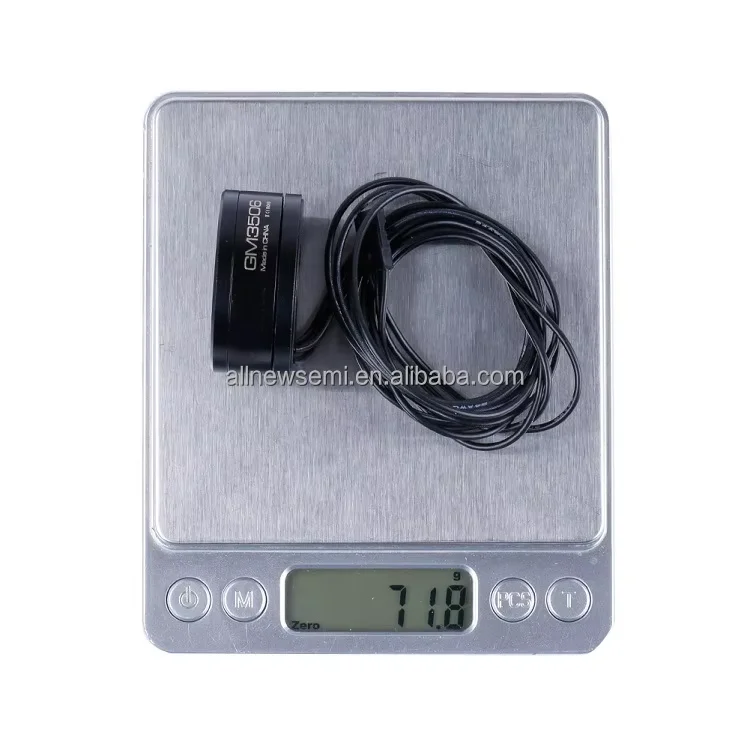

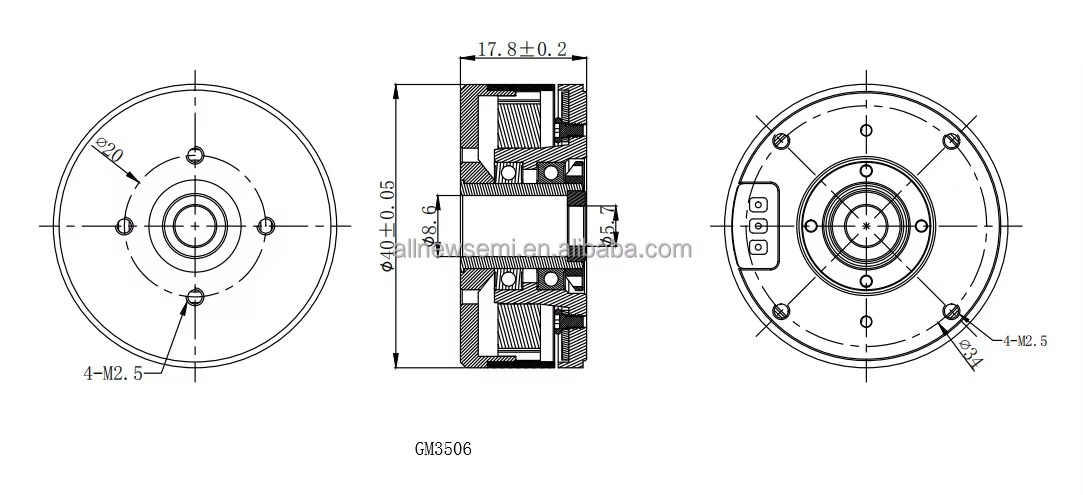

Model NO.:GM3506 Weight:71.8g Motor Dimensions:40x18mm Stator Dimensions:35x6mm Hollow Shaft: inner diameter 6mm Copper wire(OD):0.21mm Configuration:12N14P Resistance:14.3 ohms Wind type and termination method:Star style Pre-wounded with 130 turns Bottom mounting holes: 16 and 19mm center to center Top mounting holes: 12mm center to center Camera range: 200-400grams

Item Packing

GM3506 Gimbal Motor x 1

Product Photos
