Product Description

Industrial grade oxygen sensor I-01, high reliability, working humidity range can reach 100%RH,

response time is not affected by changes in oxygen concentration,

No heating time is required; sensor output is temperature compensated, response time is fast, zero point is stable.

Main parameters of the product:

Measurement range: 0.5-35 Vol.%

Sensor theoretical life: ＞1900000 Vol.%

Working life: 10 years in air

Output signal: 10.5-17mV

Response time t90: <5 seconds

Working temperature: 0℃ to 50℃

Pressure range: 750 to 1250 hPa

Wiring port: 3 pin socket

Recommended load value: ≥1 Mohm

Drift: <3%/month in air

Accuracy: ±0.1%

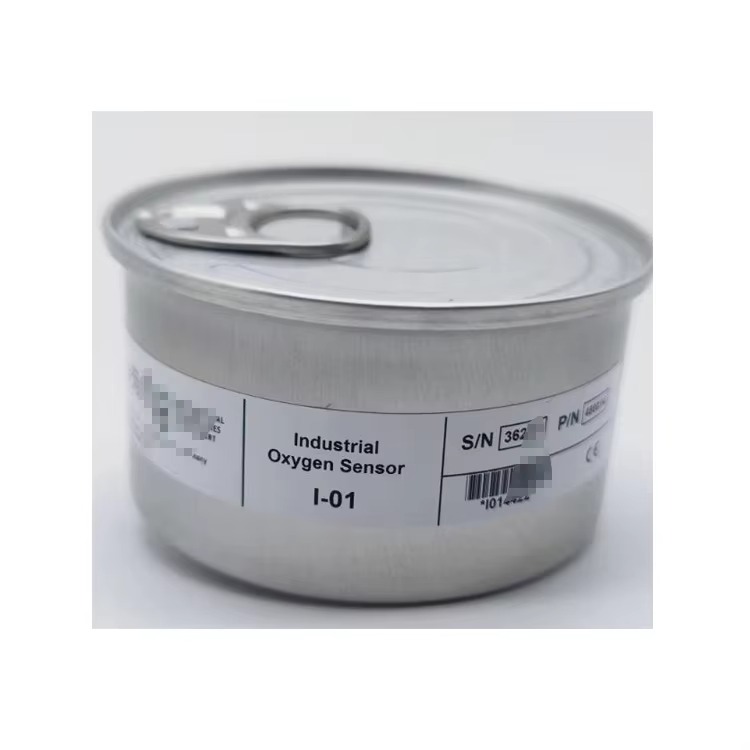

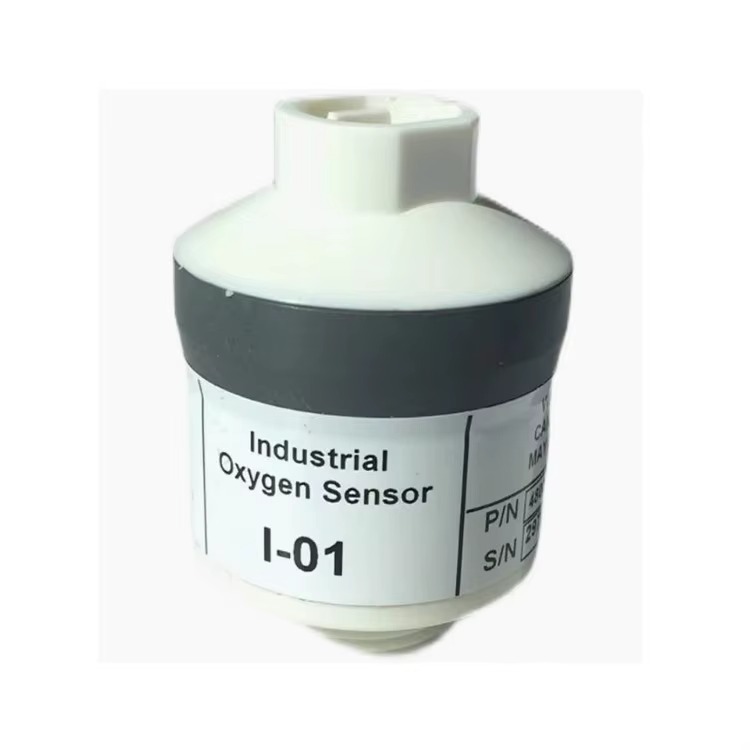

Product Photos
