Product Description
Rocker potentiometer H-D202X-2/4 2D, left and right up and down self-reset, sealed, PTZ controller, special for film and television photography, from stock. Spot resistance is 5k,10k.
It is widely used in: mobile camera and CCTV control system, test and measurement equipment, medical imaging system, automatic machine control, video editing and production equipment, industrial and scientific instruments, etc.
| Type | Description |
| Part# | JH-D202X |
| Potentiometer resistance value | 5KΩ, 10KΩ optional |
| Potentiometer resistance tolerance value | ±20% |
| X and Y axis electrical rotation angle | ±25° |
| Z axis electrical rotation angle | None |
| Potentiometer independent linear tolerance | ±1% |
| Resolution | Infinity |
| Impedance temperature coefficient | ±400ppm/℃ |
| Output smoothing | Maximum 0.5% |
| Operating voltage | 0.1W (rated power at 40℃) |
| Operating current | 0.1W (rated power at 40℃) |
| Insulation strength | 500VAC@50Hz,60s |
| Insulation resistance | 50MΩ@500VDC |
| Joystick leads | AWG28 Teflon silver-plated wire outlet 100mm |

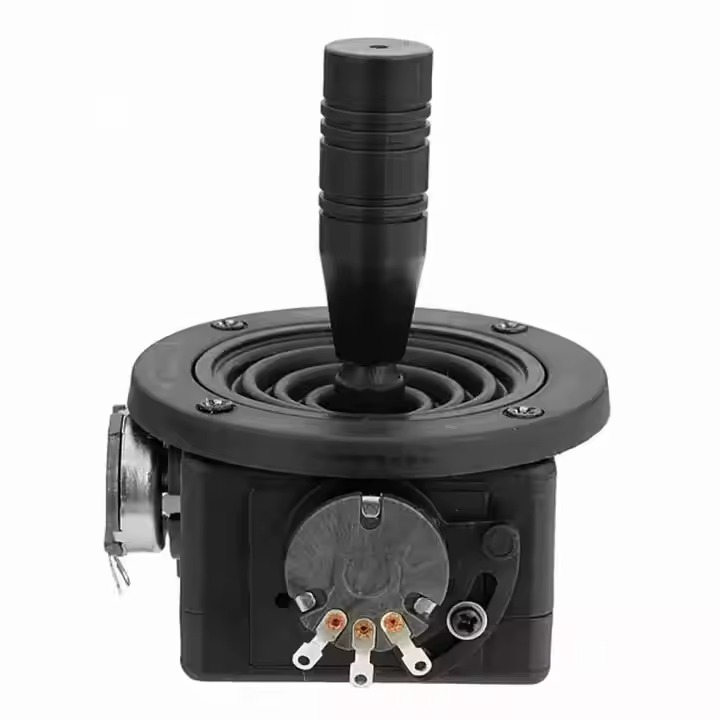

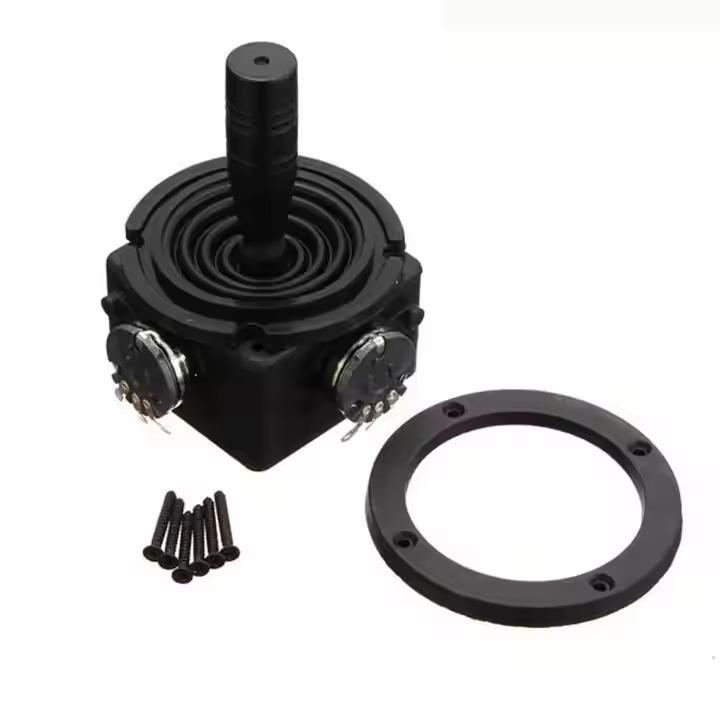

Actual image of the product
