KCD1 B3-202 springboard power switch, Black 6 Pin Ship Switch

KCD1 B3-202

Model:KCD1 B3-202

Manufacturer:Original

Package:Standard

TypeShip Switch

voltage, rated current(1) 6A/250V

voltage, rated current(2) 10A/125V

contact resistance ≤50mΩ

Insulation resistance≥100MΩ

dielectric strength≥1500VAC/1min

the average product life ≥10000times

ColorBlack

Buy now Contact us

Detail

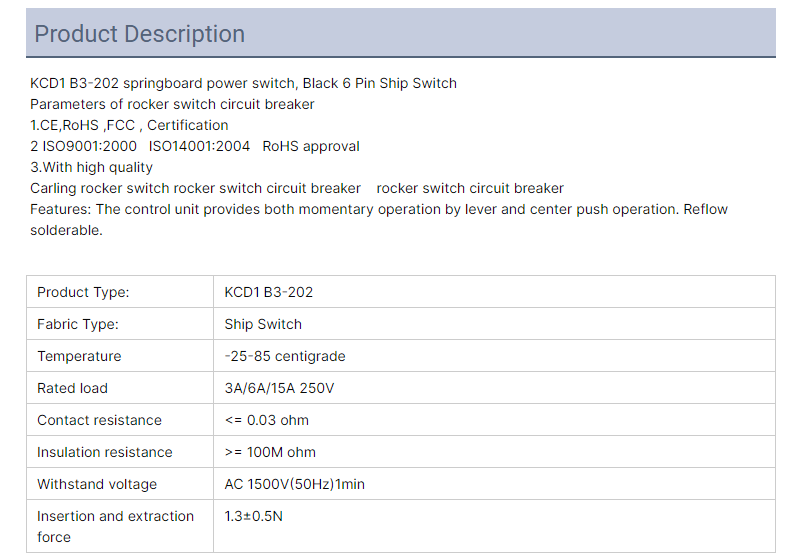

Product Description

KCD1 B3-202 Springboard Power Switch, Black 6 Pin Ship Switch

Rocker Arm Switch Circuit Breaker Parameters
1.CE, RoHS, FCC, Certification2
ISO9001:2000 ISO14001:2004 RoHS Certification
3.High Quality
Carlin Rocker Switch Circuit Breaker
Features: The control unit provides instantaneous operation with lever and center push operation. Reflow solderable.

Product Type:	KCD1 B3-202
Fabric Type:	Ship type switches
temperature	-25-85 degrees Celsius
Rated load	3A/6A/15A 250V
Contact resistance	< = 0.03 ohms
Insulation resistance	> = 100M ohms
Pressure resistance	AC 1500V (50Hz) for 1 minute
Plugging and unplugging force	1.3 ± 0.5N

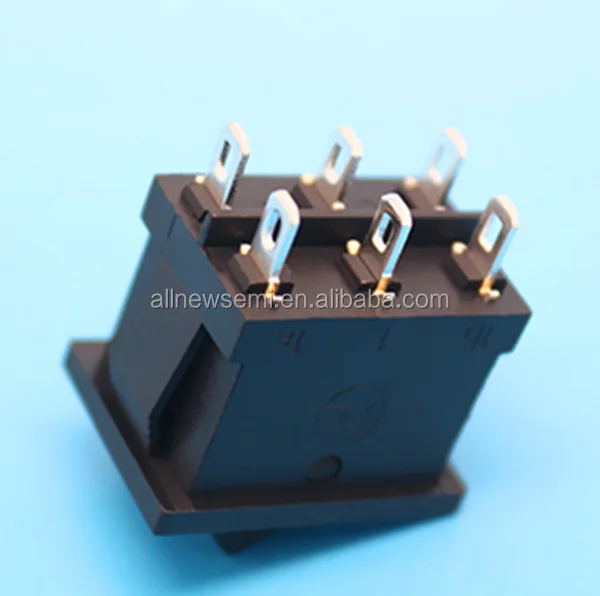

Actual image of the product

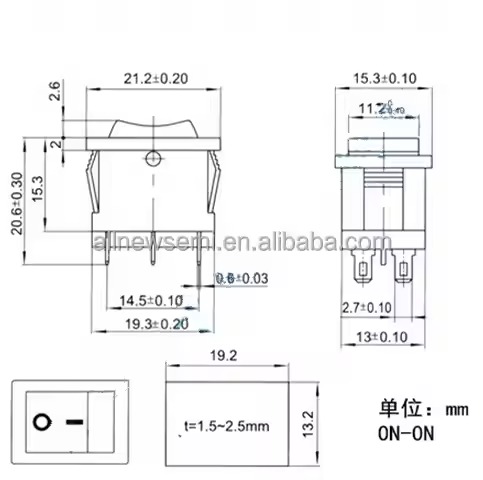

KCD1 B3-202 3

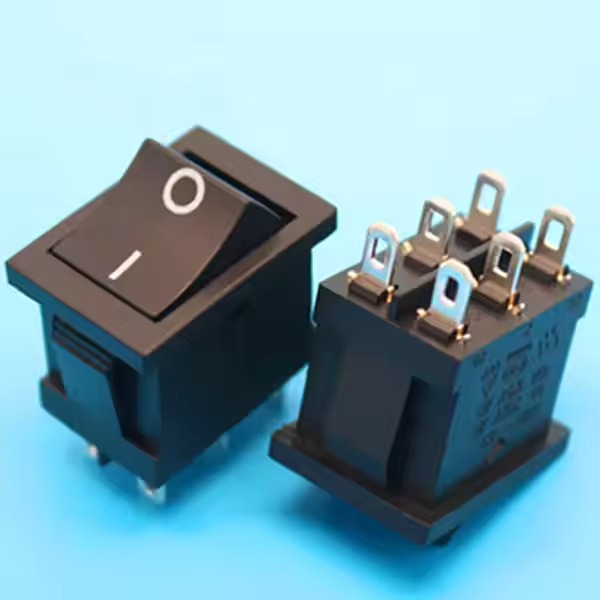

KCD1 B3-202

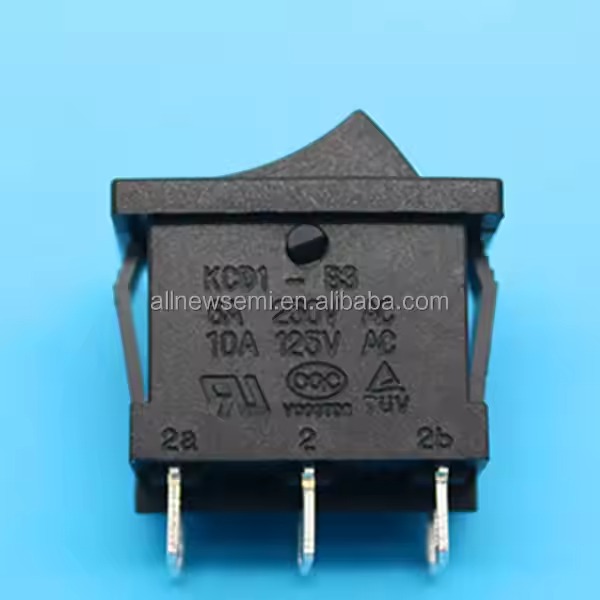

KCD1 B3-202 4

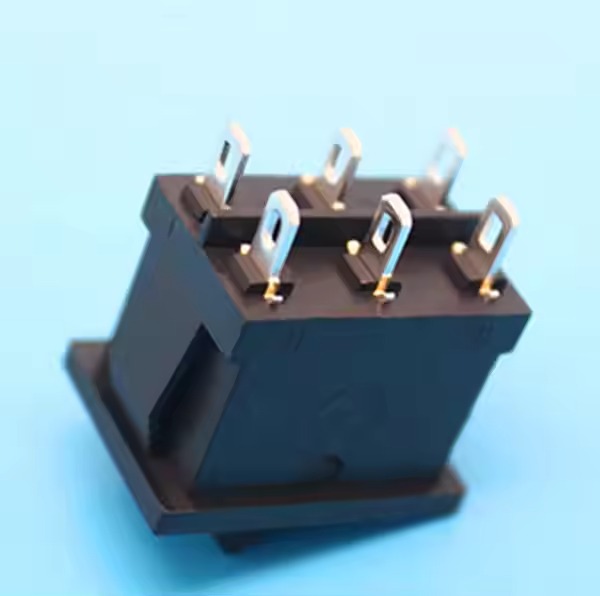

KCD1 B3-202 5
