Product Description
Specifications
Range of Measurement: 0 to 100% O2
Output Range: 11mV ± 2.5 mV
Zero Offset: ≤ 0.50 mV
Response Time: ≤ 15 s
Linearity: Within ± 1.0%
Expected Lifetime: > 1,500,000 %O2 hours
Temperature Compensation: < ± 3.0%
Operational Temperature Range: 5° to 40°C
Storage Temperature Range: -15° to 50°C
Humidity Range: 5% to 95% RH, non-condensing
Interference: Per EN ISO 80601-2-55
Product Photos
| Part# | MAX-250A |
| Range of Measurement (Full Scale) | 0 to 100% oxygen |
| Output | 11mV 土2.5mV |
| Operating Temperature | 5° to 40℃ |
| Maximum Storage Temperature | -15to 50“C |
| Optimal Storage Temperature | 5'to 25C |
| Zero Offset | Less than or equal to 0.50 mV when exposed to99.9% to 100% nitrogen for 5 min |
| 90% Response Time | Less than or equal to 15 seconds at 23士2C |
| Linearity | Within +/- 1.0% of full scale |
| Stability | Less than 1% of full scale over an 8 hour periodat constant temperature, pressure, and humidity. |
| Temperoture Compensation | Less than 土3.0% from 15’to 40C |
| Expected Life | >1,500,000% oxygen hours under normal operating conditions |
| Humidity | 5% to 95% Relotive Humidity non-condensing |
|
Description |

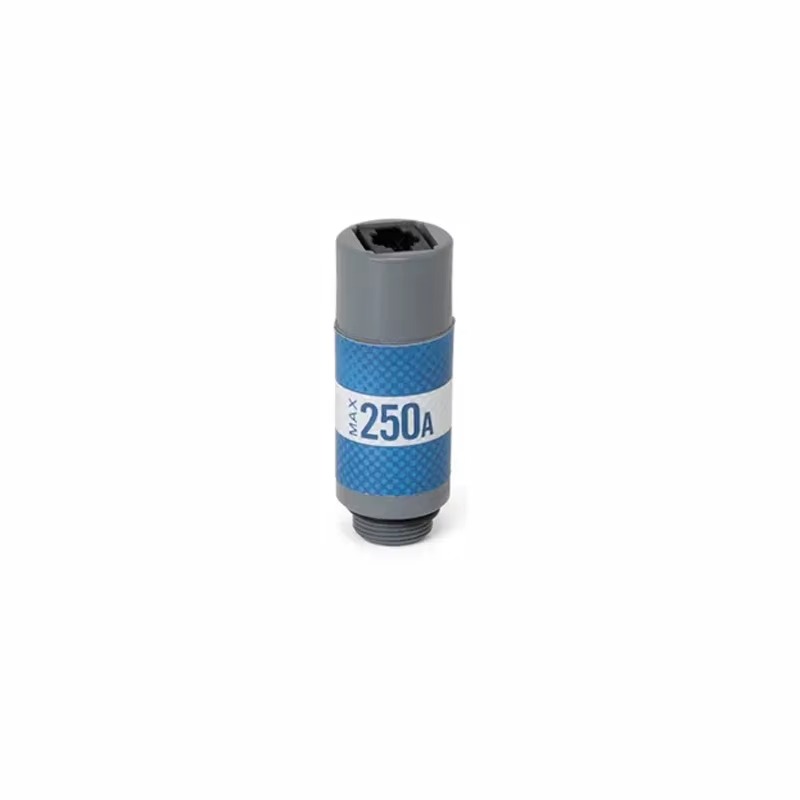

Maxtec Oxygen Sensor MAX-250 series |
Actual image of the product
