Description
Fifth Generation HEXFETs from International Rectifier utilize advanced processing techniques to achieve extremely low on-resistance per silicon area. This benefit, combined with the fast switching speed and ruggedized device design that HEXFET Power MOSFETs are well known for, provides the designer with an extremely efficient and reliable device for use in a wide variety of applications.
The TO-220 package is universally preferred for all commercial-industrial applications at power dissipation levels to approximately 50 watts. The low thermal resistance and low package cost of the TO-220 contribute to its wide acceptance throughout the industry.
Lead-Free
Advanced Process Technology
Dynamic dv/dt Rating
175°C Operating Temperature
Fast Switching
P-Channel
Fully Avalanche Rated
Product Description
Type | Description |
|---|---|
Category | Discrete Semiconductor Products Transistors FETs, MOSFETs Single FETs, MOSFETs |
Mfr | - |
Series | HEXFET® |
Packaging | Tube |
Part Status | Active |
FET Type | P-Channel |
Technology | MOSFET (Metal Oxide) |
Drain to Source Voltage (Vdss) | 100 V |
Current - Continuous Drain (Id) @ 25°C | 23A (Tc) |
Drive Voltage (Max Rds On, Min Rds On) | 10V |
Rds On (Max) @ Id, Vgs | 117mOhm @ 11A, 10V |
Vgs(th) (Max) @ Id | 4V @ 250µA |
Gate Charge (Qg) (Max) @ Vgs | 97 nC @ 10 V |
Vgs (Max) | ±20V |
Input Capacitance (Ciss) (Max) @ Vds | 1300 pF @ 25 V |
FET Feature | - |
Power Dissipation (Max) | 140W (Tc) |
Operating Temperature | -55°C ~ 150°C (TJ) |
Grade | - |
Qualification | - |
Mounting Type | Through Hole |
Supplier Device Package | TO-220AB |
Package / Case | TO-220-3 |
Base Product Number | IRF9540 |

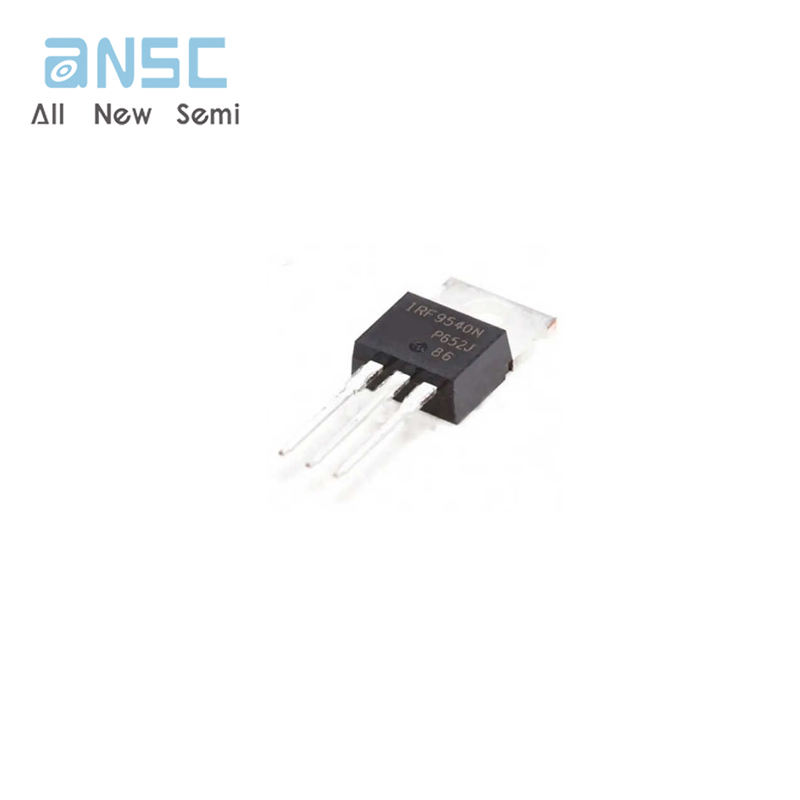

Actual image of the product

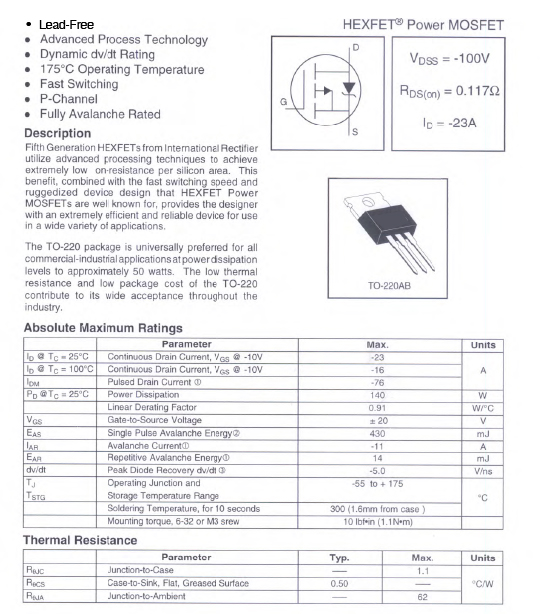

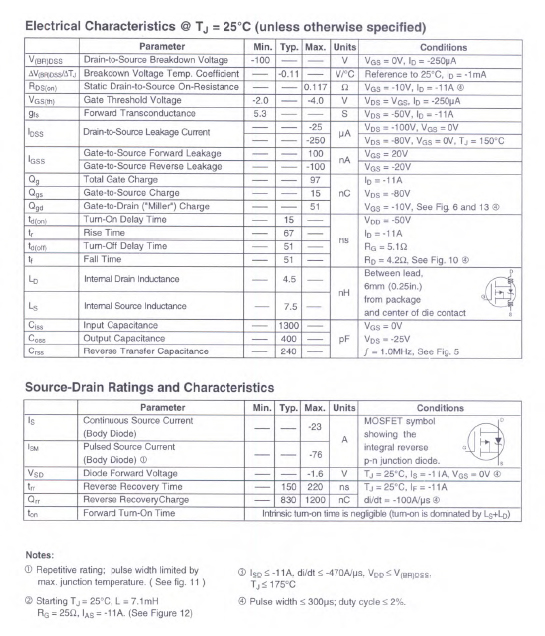

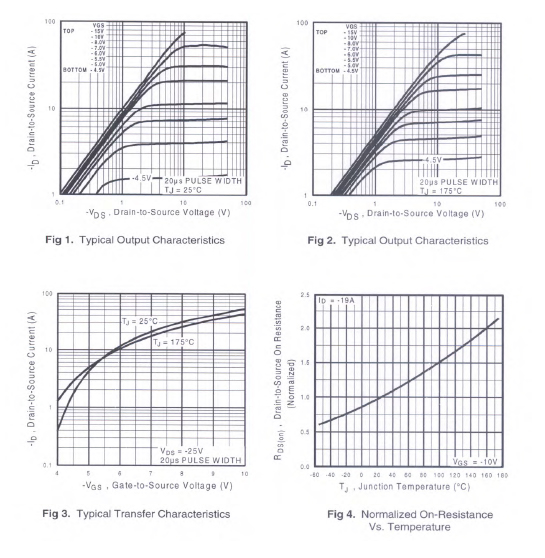

Product datasheet
