Product Details
Overcurrent protection
Leaded disks, uncoated, 380 V to 1000 V
Features
■ Lead-free terminals
■ Marking: Type, manufacturers logo, reference temperature in °C and date code YYWW
■ UL approval to UL 1434 with Vmax = 420 V and VR = 380 V (file number E69802), except B758
■ VDE approval for selected types (licence number 104843 E)
■ RoHS-compatible
Applications
■ Overcurrent protection
■ Short circuit protection
Product Description
|
Type |
Description |
|---|---|
|
Category |
Circuit Protection PTC Resettable Fuses |
|
Manufacturer |
/ |
|
Series |
B59751 |
|
Packaging |
Bulk |
|
Part Status |
Active |
|
Type |
Ceramic |
|
Voltage - Max |
440V |
|
Current - Hold (Ih) (Max) |
87 mA |
|
Current - Trip (It) |
173 mA |
|
Current - Max |
4 A |
|
Resistance - 25°C (Typ) |
50 Ohms |
|
Operating Temperature |
-40°C ~ 125°C |
|
Grade |
Automotive |
|
Qualification |
AEC-Q200 |
|
Ratings |
- |
|
Mounting Type |
Through Hole |
|
Package / Case |
Radial, Disc |
|
Size / Dimension |
0.512" Dia x 0.295" T (13.00mm x 7.50mm) |
|
Height - Seated (Max) |
0.709" (18.00mm) |
|
Thickness (Max) |
- |
|
Lead Spacing |
0.197" (5.00mm) |
|
Approval Agency |
UR, VDE |

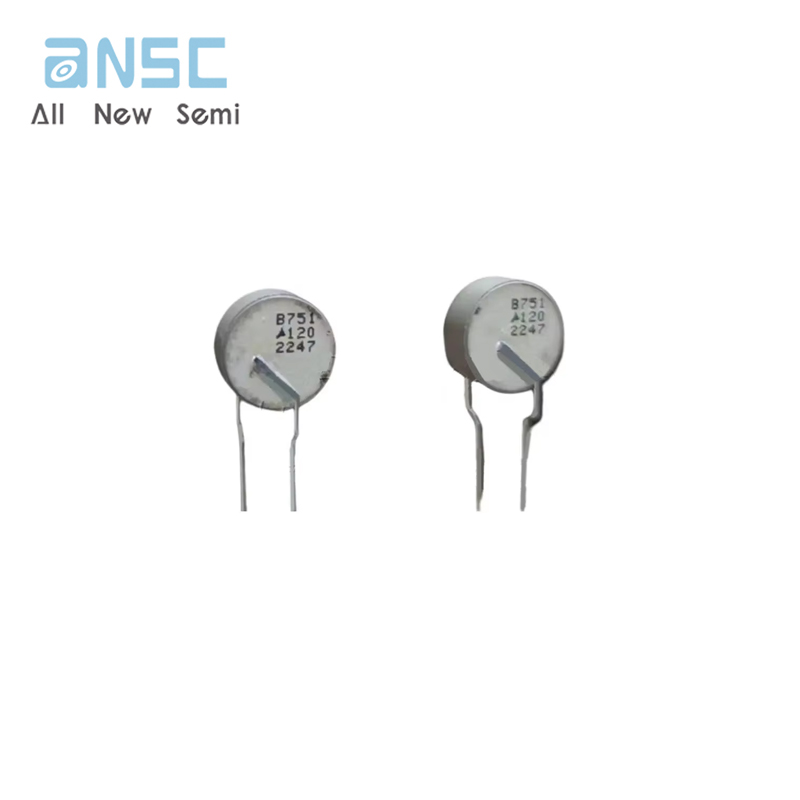

Actual image of the product

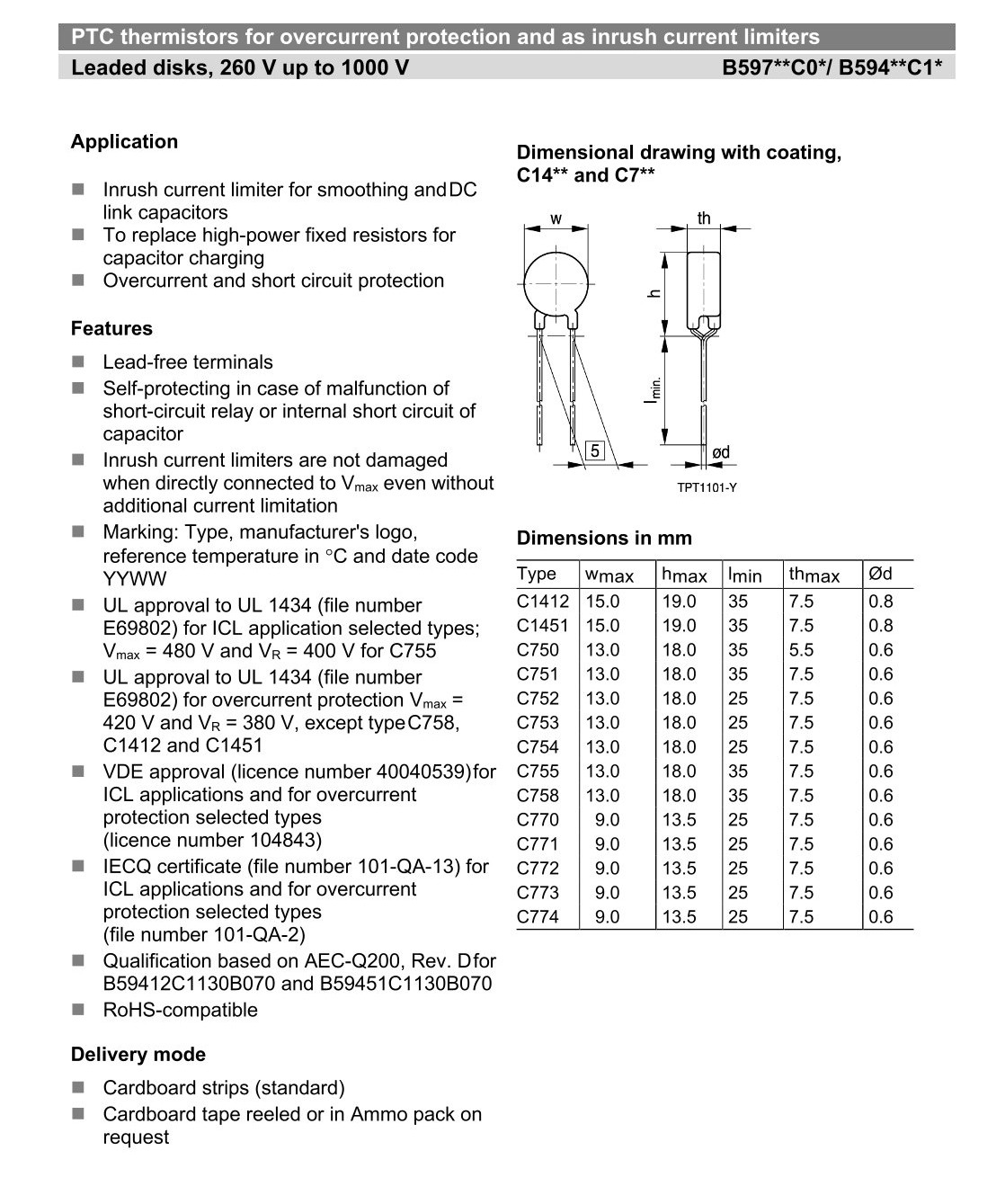

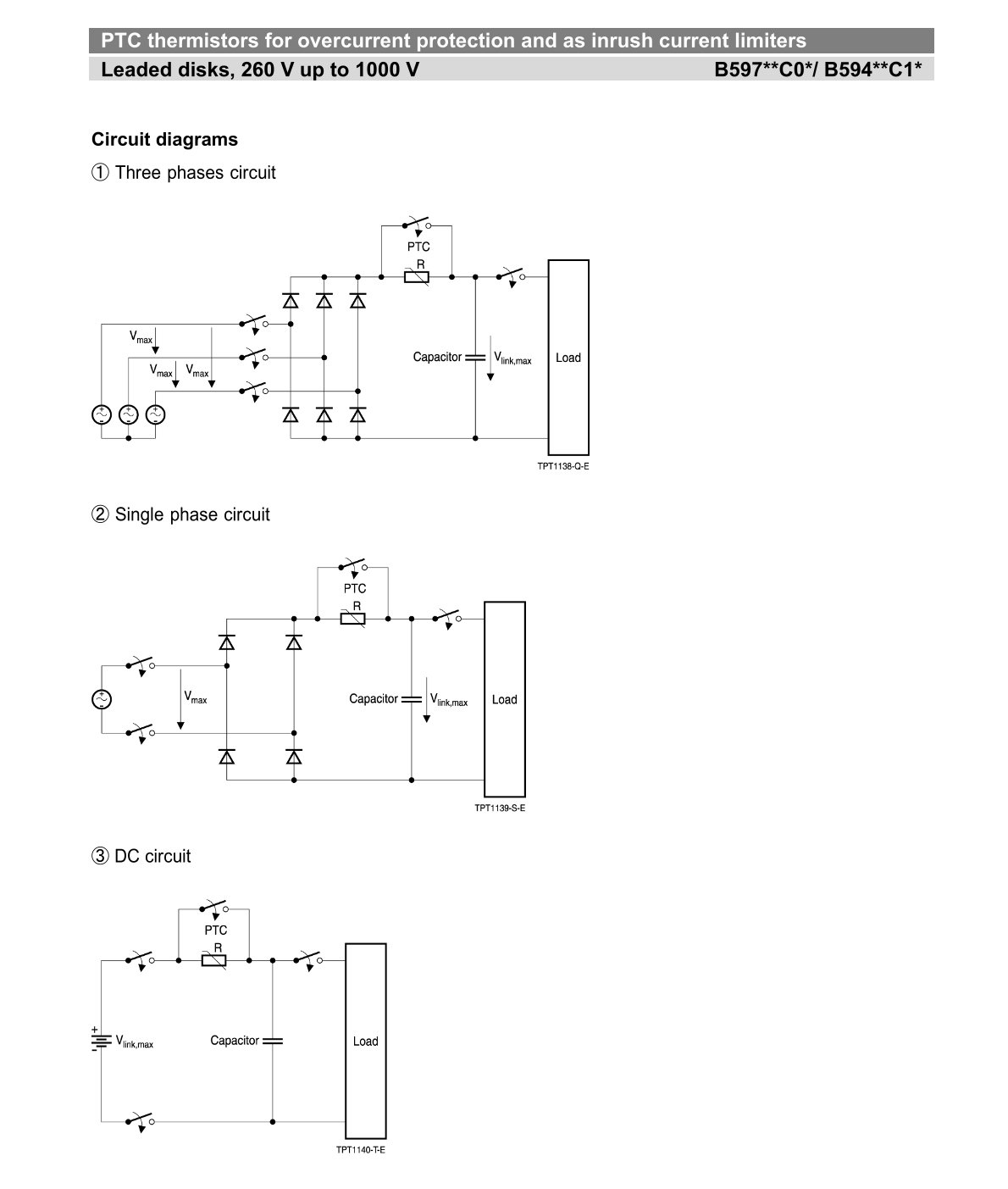

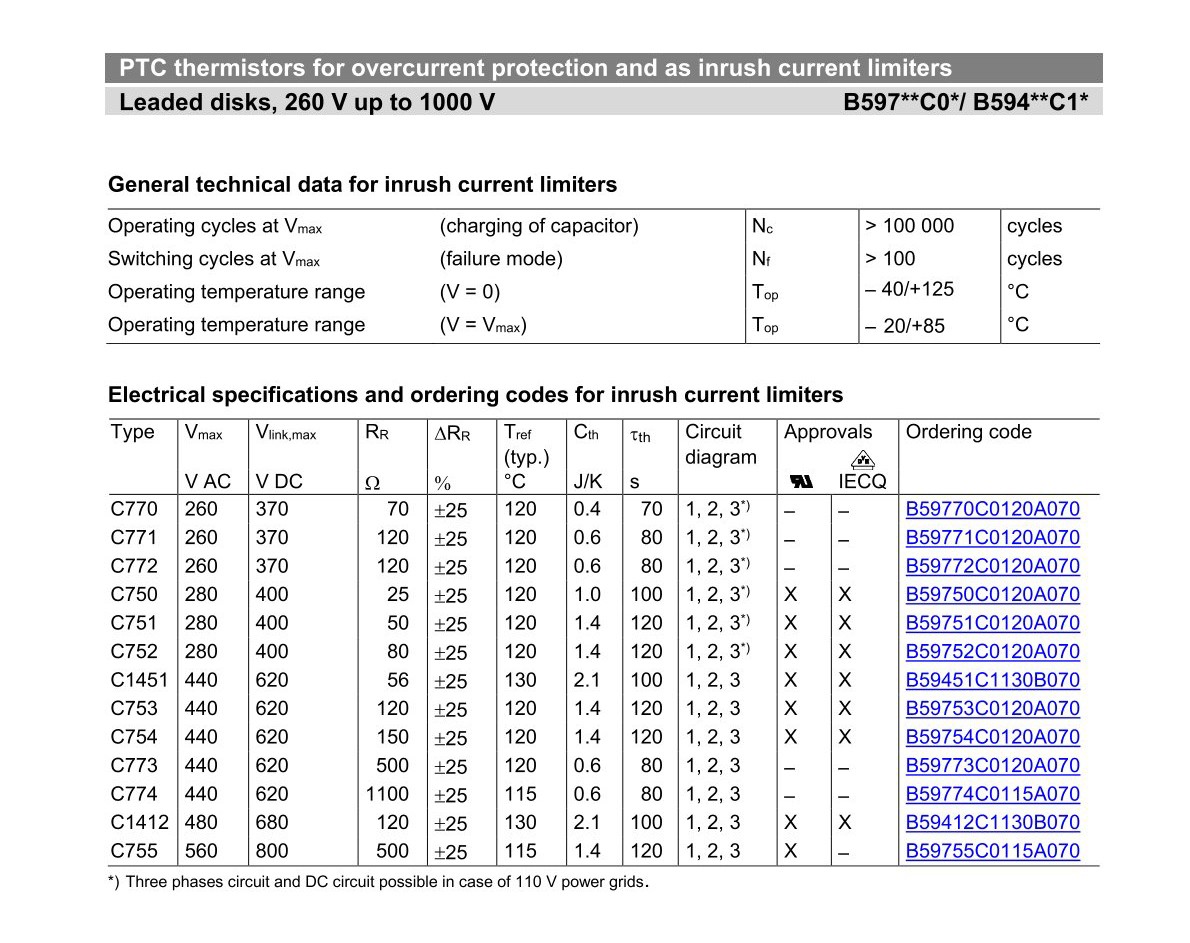

Product datasheet
For more information, please download
