Product Description
| Basic parameters | |
| Type | Background suppression |
| Sensing distance Tw | 20 … 350 mm |
| Sensing range Tb (Tw max) | 20 … 350 mm |
| Sensing range Tb (Tw min) | 5 … 20 mm |
| Repeat accuracy | < 0,2 mm (at laser focus) |
| Power-on indicator | Green LED |
| Indicator | Yellow LED |
| Sensing distance adjustment | Mechanical, 9 turns |
| Focal length | 115 mm |
| Light source | |
| Light source | Pulsed red laser diode |
| Laser level | 2 |
| Wavelength | 650 nm |
| Electrical parameters | |
| Response time / release time | < 0,5 ms |
| Power supply voltage range +Vs | 10 … 30 VDC |
| Maximum current consumption (no load) | 35 mA |
| Typical current consumption | 25 mA |
| Voltage drop Vd | <2,2 VDC |
| Output function | Light On/Dark On |
| Output circuit | NPN |
| Output current | 100 mA |
| Short circuit protection | Yes |
| Reverse polarity protection | Yes |
| Mechanical parameters | |
| Width / diameter | 14,8 mm |
| Height / length | 43 mm |
| Depth | 31 mm |
| Type | Rectangular |
| Housing material | Plastic (ASA, MABS) |
| Front-end optical element | PMMA |
| Connection method | M8 connector, 4-pin |
| Environmental conditions | |
| Protection level | IP 67 |
| Operating temperature | -10 … +50 °C |
Actual image of the product

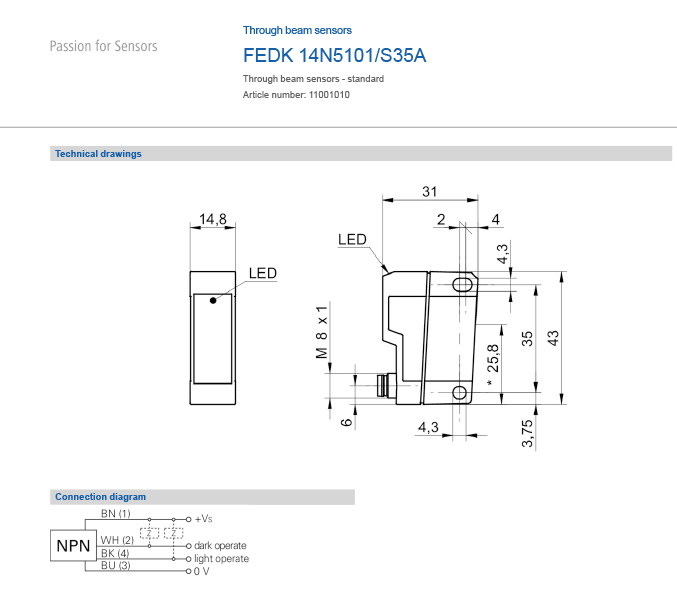

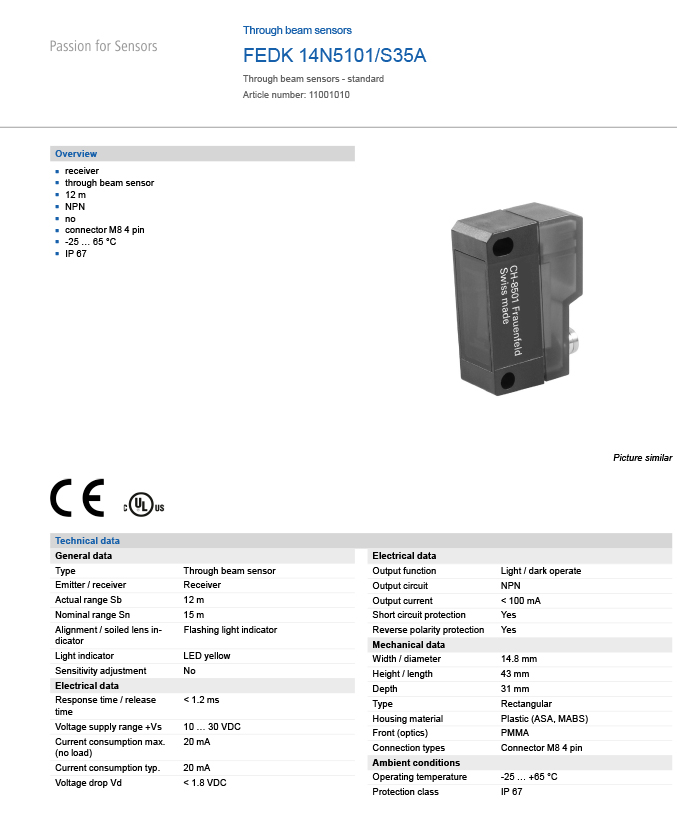

Product datasheet
