Product Details
ABO-20 IP55 waterproof infrared beam sensor single photoelectric detector active infrared alarm host 20m infrared detector
This single infrared beam alarm can be installed on gates, automatic doors, sliding doors or switch-sensitive doors, or installed at home for anti-theft, and has a wide range of applications. Come on, give it a try, it won't let you down.
IP55 waterproof rating, can also be used outdoors or in humid areas, rain will not affect normal use
Then install on both sides of doors and windows, and the host is installed indoors. When someone turns off the infrared beam, the host will sound an alarm
The detection distance can reach 20m, and the long detection distance can meet the use of most automatic doors or sliding doors and windows.
Wide application: The tool can be installed on the gate system, automatic door, sliding door or switch induction door, and can also be installed at home for anti-theft
Small size, easy to install, no need for too much professional skills
Product Specifications
Material: ABS
Power supply: DC 12~24V
Detection distance: ≤20m
Input current:
Transmitter: 30mA
Receiver: 15mA
Wavelength: 940 nm
Frequency: 1.92KHz
Maximum load: A1 36V
Relay output: NC/NO switch adjustable
Product size: 76 * 49.2 * 21.6mm / 3.0 * 1.9 * 0.9in
Note: The host is not included, you need to purchase the host yourself.
Product Description
| Part# | ABO-20 |
| Operating voltage | 12 (V) |
| Alarm current | 50 (mA) |
| Detection angle | 180 |
| Quiet current | 50 (uA) |
| Operating temperature | 0~50 (℃) |
| Detection distance | 20 (m) |
| Transmission frequency | 0 (MHZ) |
| Applicable range | Garage door |
| Type | Infrared alarm detector |
| Installation method | Mount type |
| Transmission distance | 20 (m) |
| Action distance | 0 (mm) |
| Communication method | Wired |
| Weight | 300 (g) |
| Alarm method | Wired normally open normally closed |

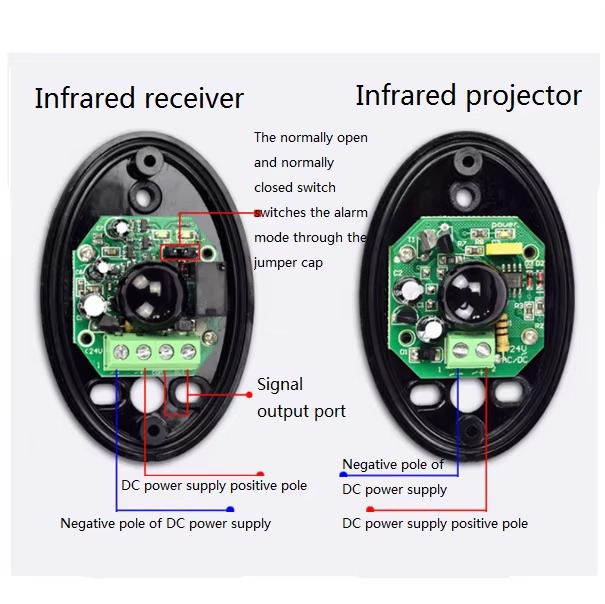

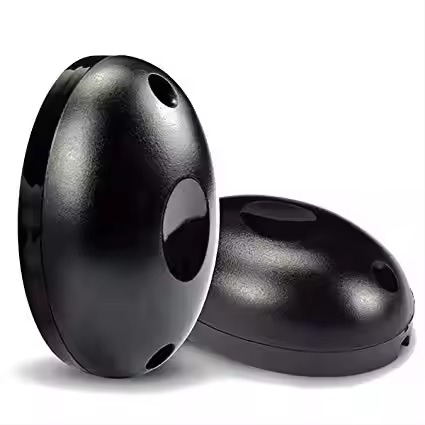

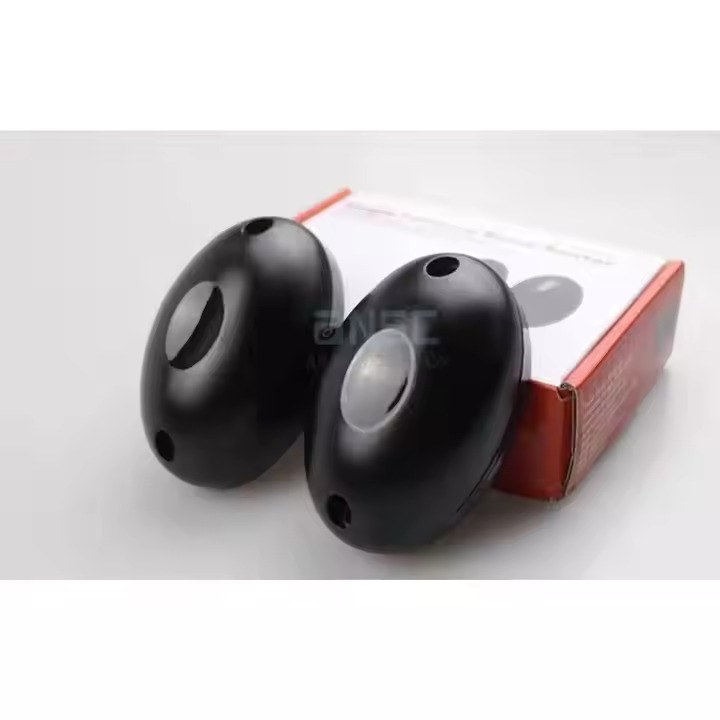

Actual image of the product
