SSR-100DD DC controlled DC 60A80DD25DD40DD25DD contactless relay Solid state relay

SSR-10DD

Model:SSR-10DD

Manufacturer:Original

Package:Standard

Buy nowContact us
Detail


Product Display


SSR-10DD 4

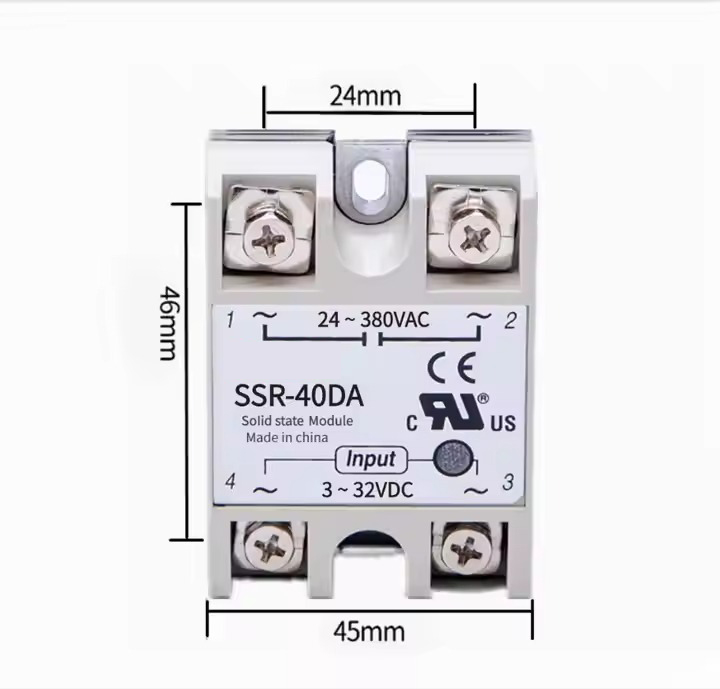

model:

SSR-10DA SSR-25DA SSR-40DA SSR-60DA SSR-80DA SSR-100DA

Load current:

10A 25A 40A 60A 80A 100A

Control voltage:

3-32VDC

Load voltage range:

24-380VAC

Cooling conditions:

10-25A with radiator    40-100A with radiator

Load current:

Resistive load 3 times Inductive load 7 times

Switching off voltage:

<1.5vDC

Control current:

<25mA

Starting current:

5mA

Insulation voltage:

>2500mA

Weight:

90g

Work instructions:

LED

Fixing method:

Bolt fixation

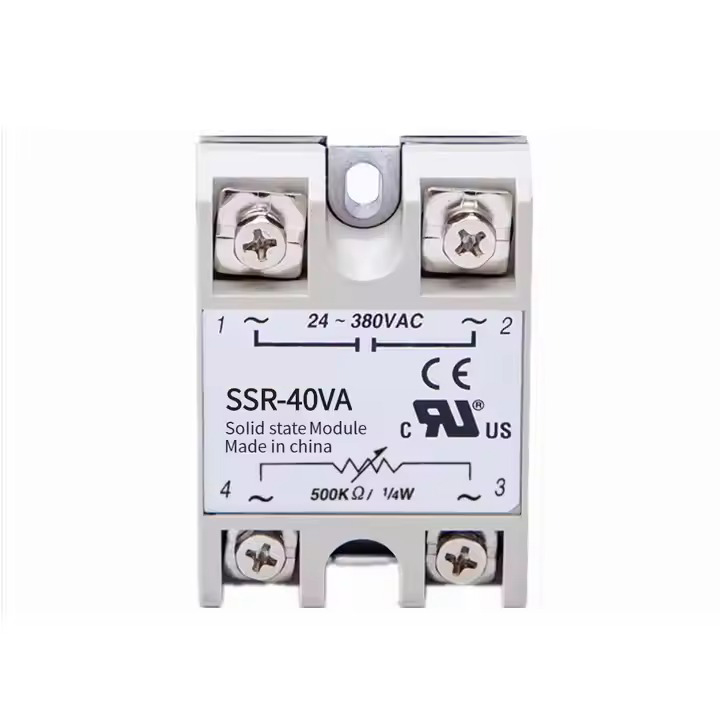

SSR-10DD

model:

SSR-10VA SSR-25VA SSR-40VA SSR-60VA SSR-80VA SSR-100VA

Load current:

10A 25A 40A 60A 80A 100A

Control voltage:

24-380VDC

Voltage regulation method：

500KΩ/1 || 4W

Cooling conditions:

10-25A with radiator    40-100A with radiator

Load current:

Resistive load 3 times Inductive load 7 times

Switching off voltage:

≤1.5vDC

Control current:

<25mA

Starting current:

5mA

Insulation voltage:

≥2500mA

Weight:

90g

Work instructions:

LED

Fixing method:

Bolt fixation


SSR-10DD 2

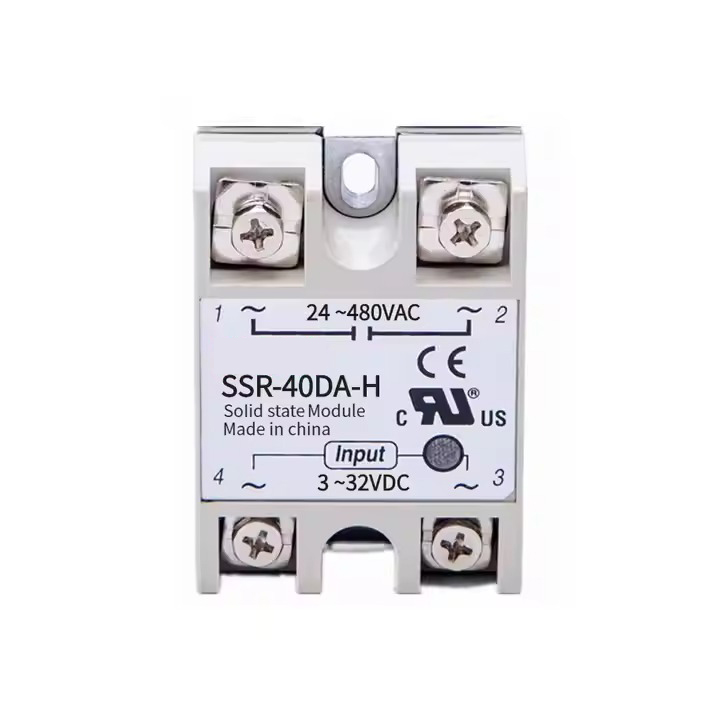

model:

SSR-10DA-H SSR-25DA-H SSR-40DA-H SSR-60DA-H SSR-80DA-H SSR-100DA-H

Load current:

10A 25A 40A 60A 80A 100A

Control voltage:

3-32VDC

Load voltage range:

24-480VAC

Cooling conditions:

10-25A with radiator    40-100A with radiator

Load current:

Resistive load 3 times Inductive load 7 times

Switching off voltage:

≤1.5vDC

Control current:

<25mA

Starting current:

5mA

Insulation voltage:

≥2500mA

Weight:

90g

Work instructions:

LED

Fixing method:

Bolt fixation

SSR-10DD 5

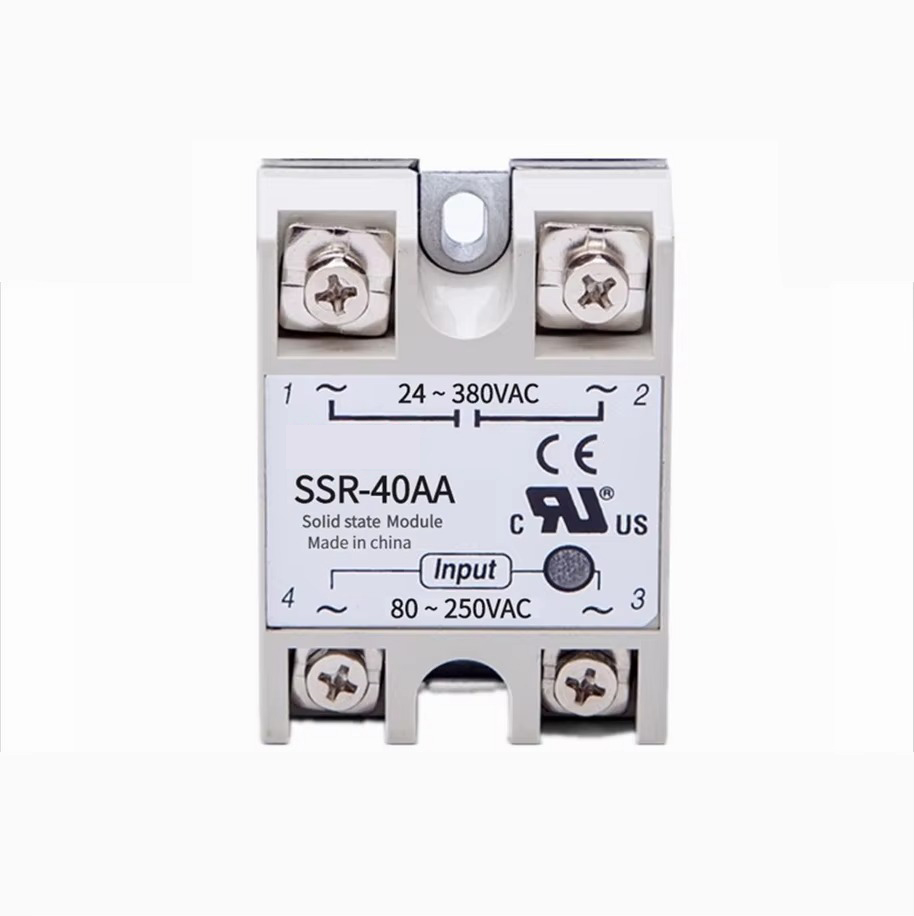

model:

SSR-10AA SSR-25AA SSR-40AA SSR-60AA SSR-80AA SSR-100AA

Load current:

10A 25A 40A 60A 80A 100A

Control voltage:

80-250VDC

Load voltage range:

24-480VAC

Cooling conditions:

10-25A with radiator    40-100A with radiator

Load current:

Resistive load 3 times Inductive load 7 times

Switching off voltage:

≤1.5vDC

Control current:

<25mA

Starting current:

5mA

Insulation voltage:

≥2500mA

Weight:

90g

Work instructions:

LED

Fixing method:

Bolt fixation


SSR-10DD 6

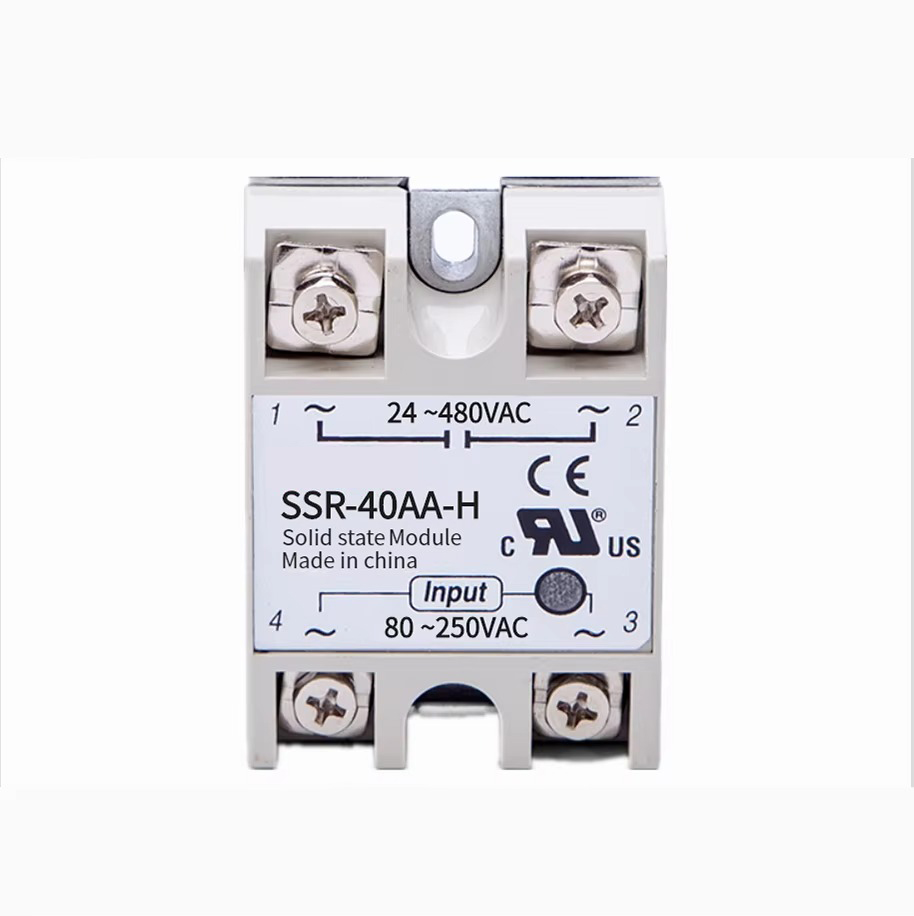

model:

SSR-10AA-H SSR-25AA-H SSR-40AA-H SSR-60AA-H SSR-80AA-H SSR-100AA-H

Load current:

10A 25A 40A 60A 80A 100A

Control voltage:

80-250VDC

Load voltage range:

24-480VAC

Cooling conditions:

10-25A with radiator    40-100A with radiator

Load current:

Resistive load 3 times Inductive load 7 times

Switching off voltage:

≤1.5vDC

Control current:

<25mA

Starting current:

5mA

Insulation voltage:

≥2500mA

Weight:

90g

Work instructions:

LED

Fixing method:

Bolt fixation


SSR-10DD 3

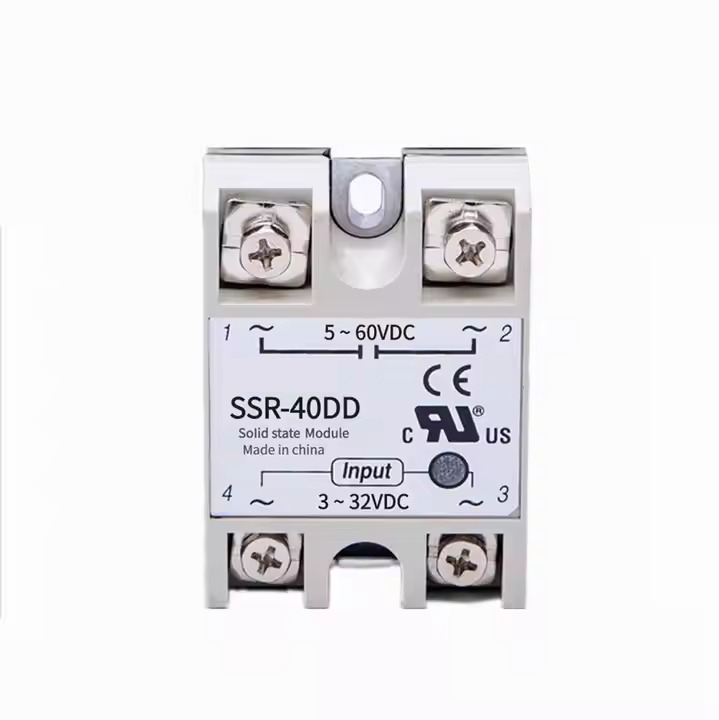

model:

SSR-10DD SSR-25DD SSR-40DD SSR-60DD SSR-80DD SSR-100DD

Load current:

10A 25A 40A 60A 80A 100A

Control voltage:

3-32VDC

Load voltage range:

5-60VAC

Cooling conditions:

10-25A with radiator    40-100A with radiator

Load current:

Resistive load 3 times Inductive load 7 times

Switching off voltage:

≤1.5vDC

Control current:

<25mA

Starting current:

5mA

Insulation voltage:

≥2500mA

Weight:

90g

Work instructions:

LED

Fixing method:

Bolt fixation
