Product Details
Power/Signal Relay SPST Momentary 0.033A (Coil) 12VDC (Coil) 400mW (Coil) 16A (Contact) 300VDC (Contact) DC Input AC/DC Output Through Hole-Straight Mount
Product Description
| Type# | Description |
| ANSC PART# | ANSC- HF115FD/012-1H3AF |
| Manufacturer | Original |
| Body Breadth | 12.7 mm |
| Body Height | 15.7 mm |
| Body Length or Diameter | 29 mm |
| Coil Current(DC)-Max | 0.033 A |
| Coil Operate Voltage(DC) | 8.4 V |
| Coil Power | 400 mW |
| Coil Release Voltage(DC) | 1.2 V |
| Coil Resistance | 360 Ω |
| Coil Voltage(DC)-Max | 12 V |
| Coil/Input Supply Type | DC |
| Contact (AC) Max Rating R Load | 16A@440VAC |
| Contact Current(AC)-Max | 16 A |
| Contact Current(DC)-Max | 16 A |
| Contact (DC) Max Rating R Load | 16A@300VDC |
| Contact Voltage(AC)-Max | 440 V |
| Contact Voltage(DC)-Max | 300 V |
| Contact/Output Supply Type | AC/DC |
| Electrical Life | 100000 Cycle(s) |
| Mounting Feature | THROUGH HOLE-STRAIGHT |
| Operate Time | 15 ms |
| Operating Temperature-Max | 85 °C |
| Operating Temperature-Min | -40 °C |
| Physical Dimension | 29mm x 12.7mm x 15.7mm |
| Reference Standard | CUL; UL; VDE |
| Relay Action | MOMENTARY |
| Relay Function | SPST |
| Relay Type | POWER/SIGNAL RELAY |
| Release Time | 8 ms |
| Surface Mount | NO |
| Termination Type | SOLDER |

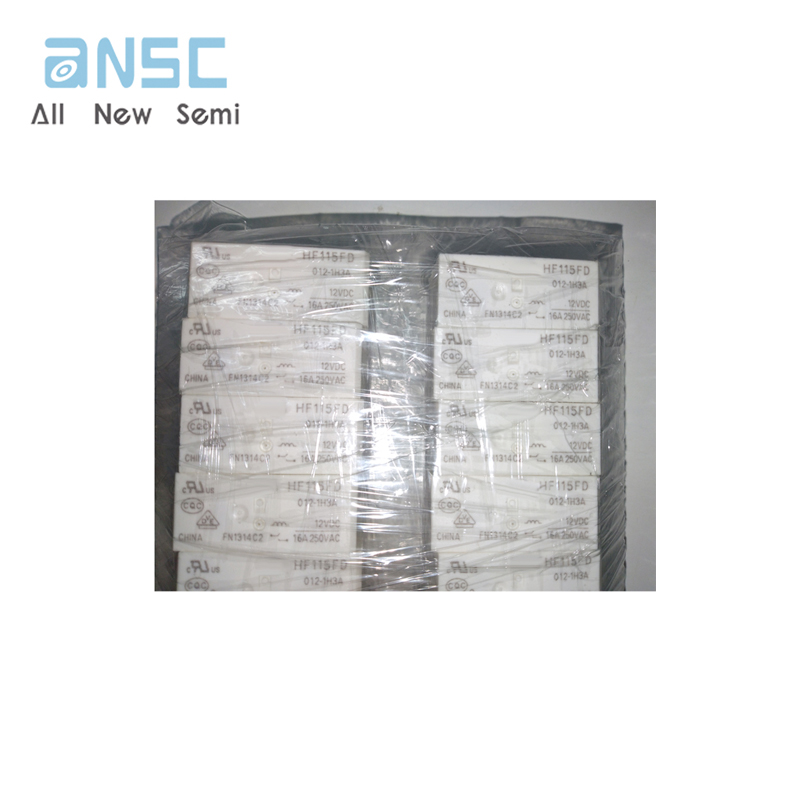

Actual image of the product

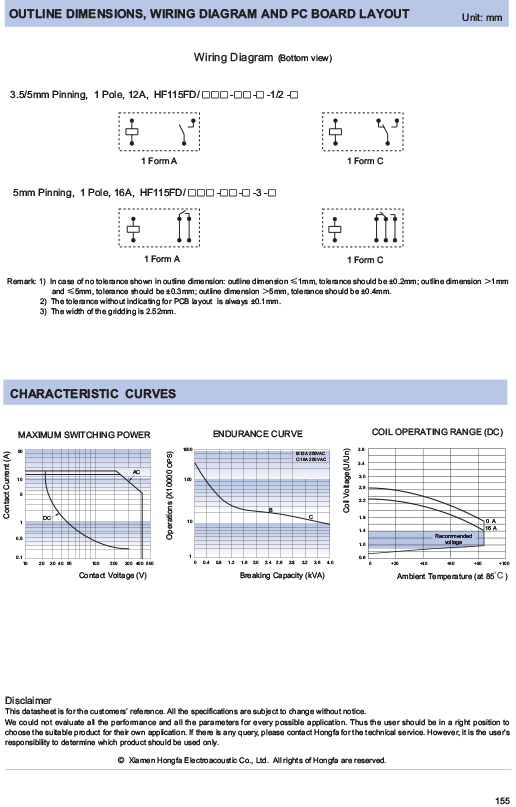

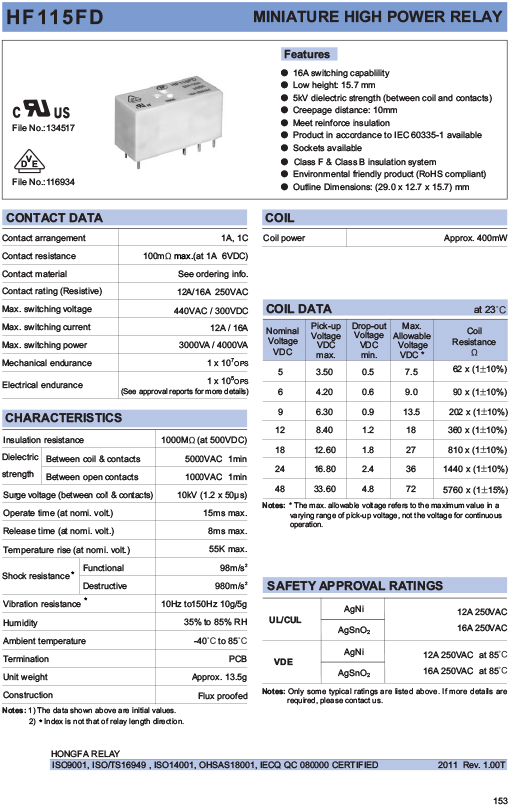

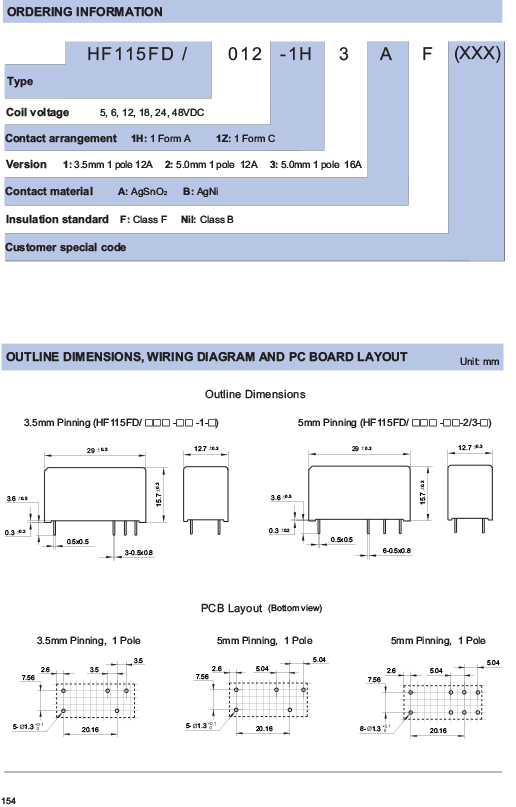

Product datasheet
For more information, please download
