Product Details

Product Description:

The 3362P-1-502LF is a high-quality, lead-free, and RoHS3 compliant trimpot with a vertical actuator orientation and screw actuator type. This trimmer potentiometer features a top adjustment mechanism, making it easy to adjust the resistance value. The device has a rectangular shape with dimensions of 0.275 x 0.260 Face x 0.185 H (6.99mm x 6.60mm x 4.70mm) and a weight of approximately 566.99mg.

Features:

• High-reliability ceramic trimmer potentiometer with a linear taper

• Rated power dissipation of 500mW and maximum operating temperature of 125°C

• Minimum operating temperature of -55°C

• Resistance value of 5kOhm with a tolerance of ±10%

• Voltage rating of 300V AC and DC

• Lead-free and RoHS3 compliant

• Available in a tube packaging with a factory lead time of 7 weeks

Applications:

• Primary applications: Audio and audio/video equipment, medical devices, and industrial control systems

• Secondary applications: Automotive electronics, consumer electronics, and telecommunications equipment

Product Description

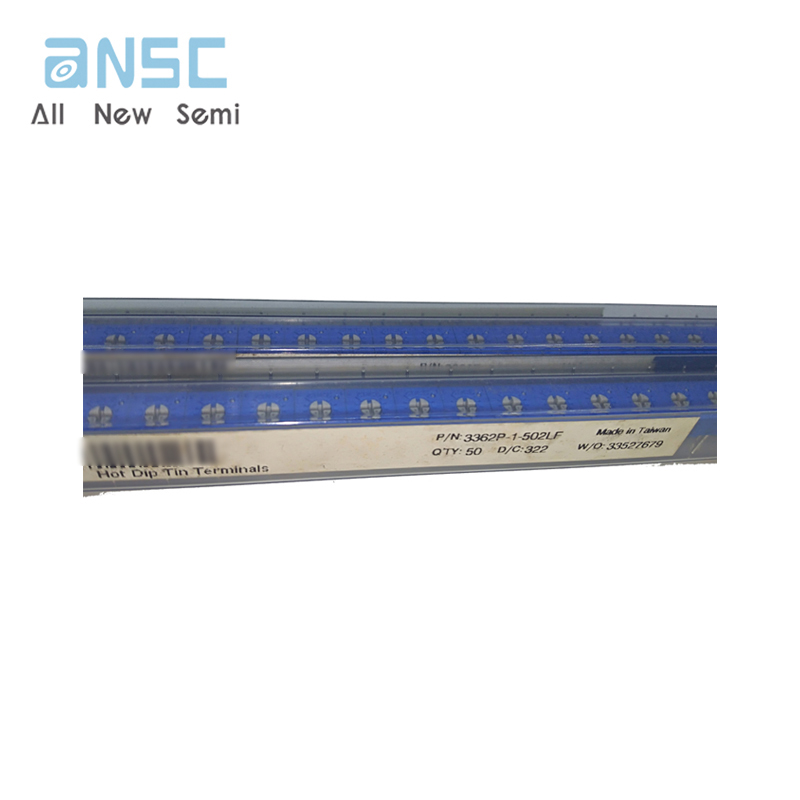

Actual image of the product

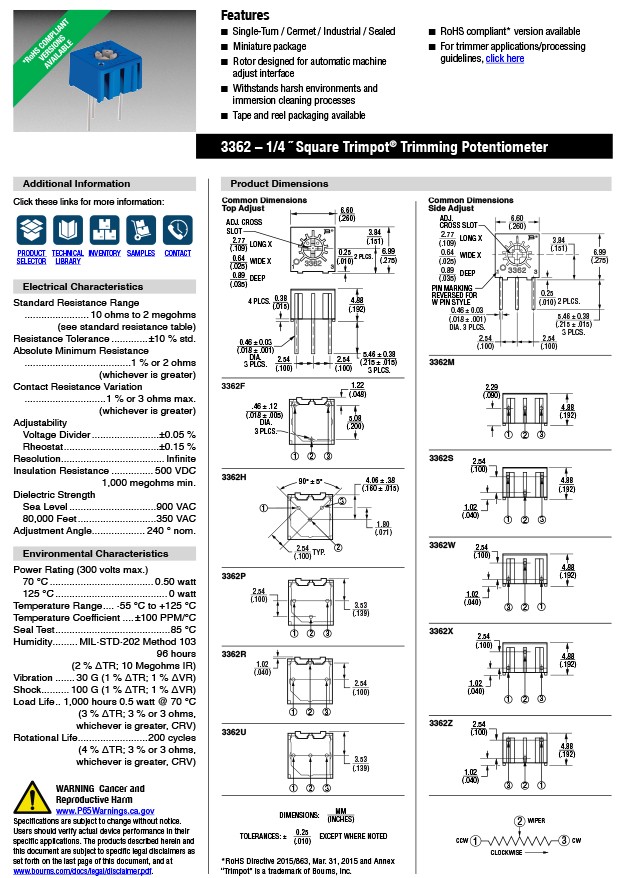

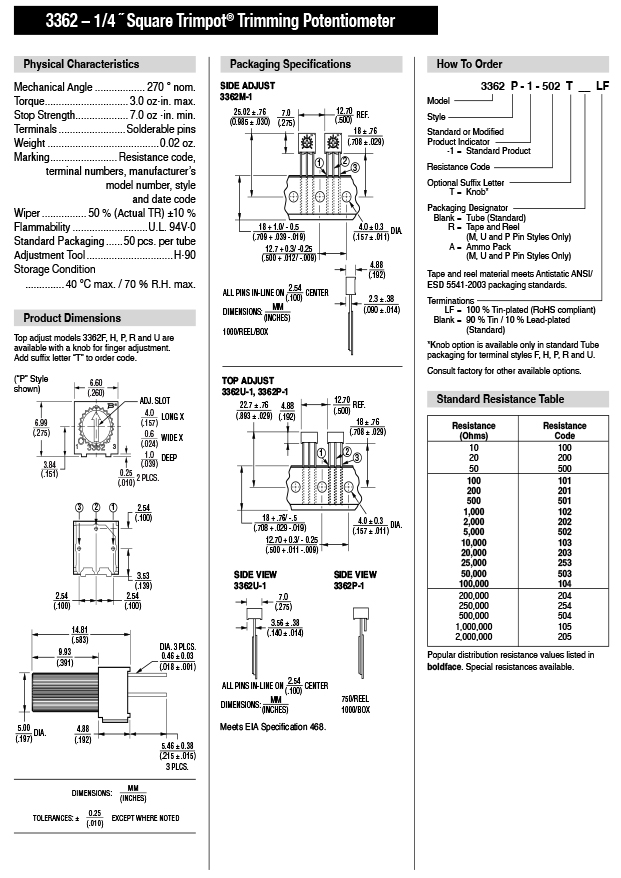

Product datasheet

For more information, please download
