Product Construction
-
Radial leads
-
Charge-discharge proof, polar
-
Aluminum case with insulating sleeve
-
Minus pole marking on the insulating sleeve
-
Case with safety vent from diameter 6.3 mm
Product Delivery mode
Terminal configurations and packing:
-
Bulk
-
Taped, Ammo pack
-
Cut
-
Kinked
-
PAPR (protection against polarity reversal):
crimped leads, J leads,
bent leads Refer to chapter "Single-ended capacitors Taping, packing and lead configurations" for further details.
Product Features
-
Compact dimensions
-
High CV product, i.e. very compact
-
RoHS-compatible
Product Applications
-
General-purpose applications in the entertainment industry
-
Semi-professional to professional application range
-
For filtering, coupling and pulse circuits
-
Switch-mode power supplies
Specifications
| Part# | B41851A5476M000 |
| Category | Capacitors |
| Aluminum Electrolytic Capacitors | |
| Mfr | / |
| Series | B41851 |
| Package | Bulk |
| Product Status | Obsolete |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 5.6Ohm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | - |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 83 mA @ 120 Hz |
| Lead Spacing | 0.079" (2.00mm) |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.472" (12.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case |
Radial, Can |

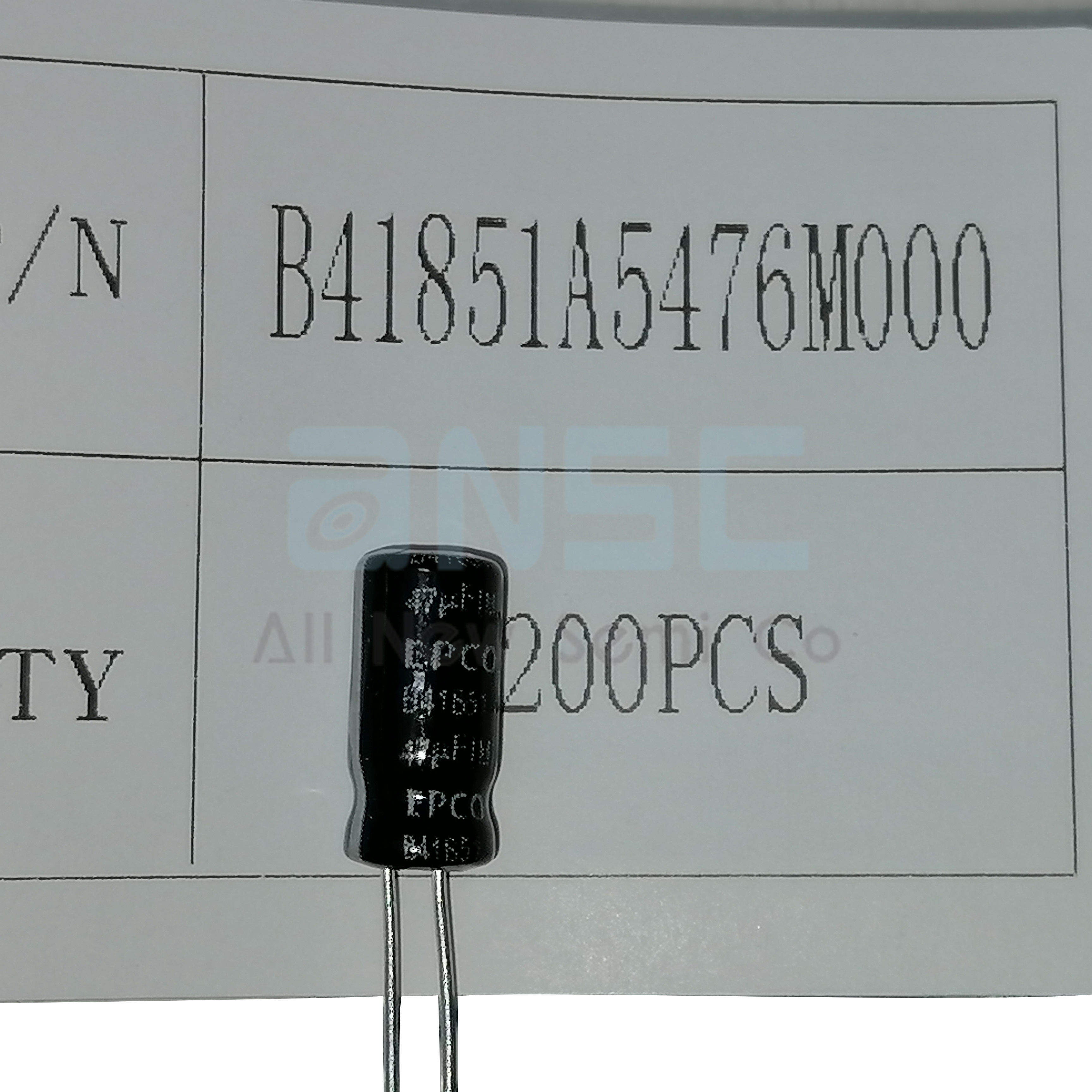

Actual product photos
