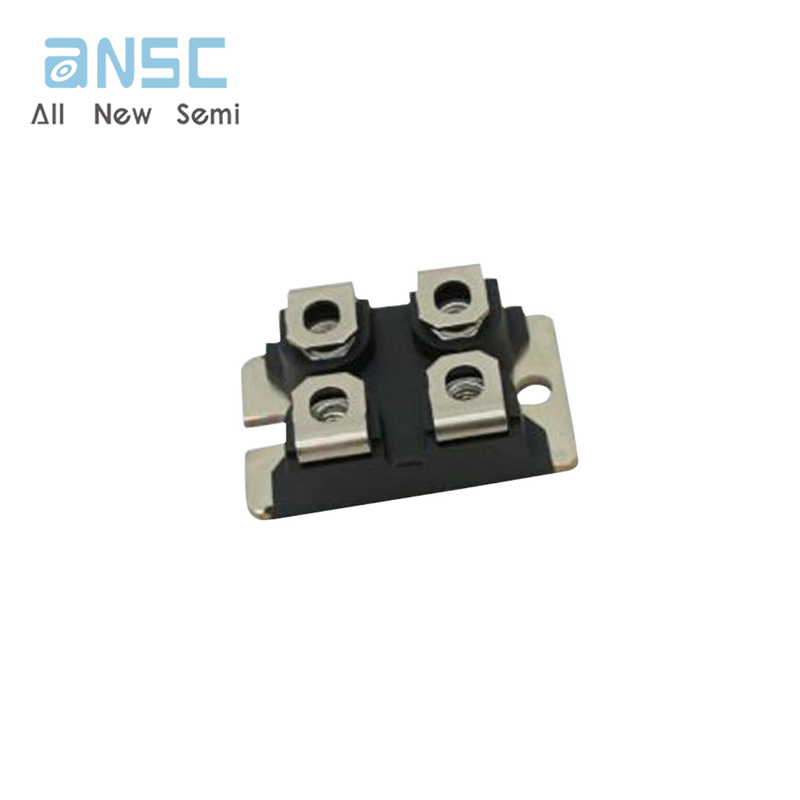

Hot sale Original APT10043JVR MOSFET N-CH 1000V 22A ISOTOP N-Channel 1000 V 22A (Tj) Chassis Mount ISOTOP®_Electronic components & Bom

Product details

Brief Description:

The APT10043JVR is a high-power N-Channel MOSFET from Microsemi Corporation,

designed for high-voltage and high-current applications.

It features a continuous drain current of 22A and a drain-to-source voltage of 1000V.

Product Features

High-power N-Channel MOSFET

Continuous drain current: 22A

Drain-to-source voltage: 1000V

High voltage and high current capability

Low on-resistance: 430mOhm

Fast switching times: 10ns rise time, 11ns fall time

High power dissipation: 500W

Chassis mount package: SOT-227-4, miniBLOC

Lead-free and RoHS compliant

Application Grade: The APT10043JVR is designed for high-power,

high-voltage applications such as:

Power supplies

Motor drives

Power conversion

High-voltage switching

Product Applications

High-power switching applications

High-voltage power supplies

Motor drives and control

Power conversion and inversion

High-voltage switching and isolation

Product Description

Type	Description
ANSC PART#	ANSC - APT10043JVR
Category	Discrete Semiconductor Products Transistors FETs, MOSFETs Single FETs, MOSFETs
Mfr	-
Series	-
Packaging	Tube
Part Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	1000 V
Current - Continuous Drain (Id) @ 25°C	22A (Tj)
Rds On (Max) @ Id, Vgs	430mOhm @ 500mA, 10V
Vgs(th) (Max) @ Id	4V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	480 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds	9000 pF @ 25 V
FET Feature	-
Grade	-
Qualification	-
Mounting Type	Chassis Mount
Supplier Device Package	ISOTOP®
Package / Case	SOT-227-4, miniBLOC

APT10043JVR
