Product Applications
VS-E5TH3012S2LHM3 applications of single-phase diode rectifier.
DC motor control and drives
Battery chargers
Welders
Power converters
Reverse Polarity Protection
Ultra High-Speed Switching
Freewheeling
Polarity Protection Diode
Recirculating Diode
Switching Diode
Product Description
Type | Description |
|---|---|
ANSC PART# | ANSC - VS-E5TH3012S2LHM3 |
Category | Discrete Semiconductor Products Diodes Rectifiers Single Diodes |
Mfr | - |
Series | - |
Packaging | Tape & Reel (TR) Cut Tape (CT) |
Part Status | Active |
Technology | Standard |
Voltage - DC Reverse (Vr) (Max) | 1200 V |
Current - Average Rectified (Io) | 30A |
Voltage - Forward (Vf) (Max) @ If | 2.5 V @ 30 A |
Speed | Fast Recovery =< 500ns, > 200mA (Io) |
Reverse Recovery Time (trr) | 113 ns |
Current - Reverse Leakage @ Vr | 50 µA @ 1200 V |
Capacitance @ Vr, F | - |
Grade | Automotive |
Qualification | AEC-Q101 |
Mounting Type | Surface Mount |
Package / Case | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB |
Supplier Device Package | TO-263AB (D2PAK) |
Operating Temperature - Junction | -55°C ~ 175°C |
Actual image of the product

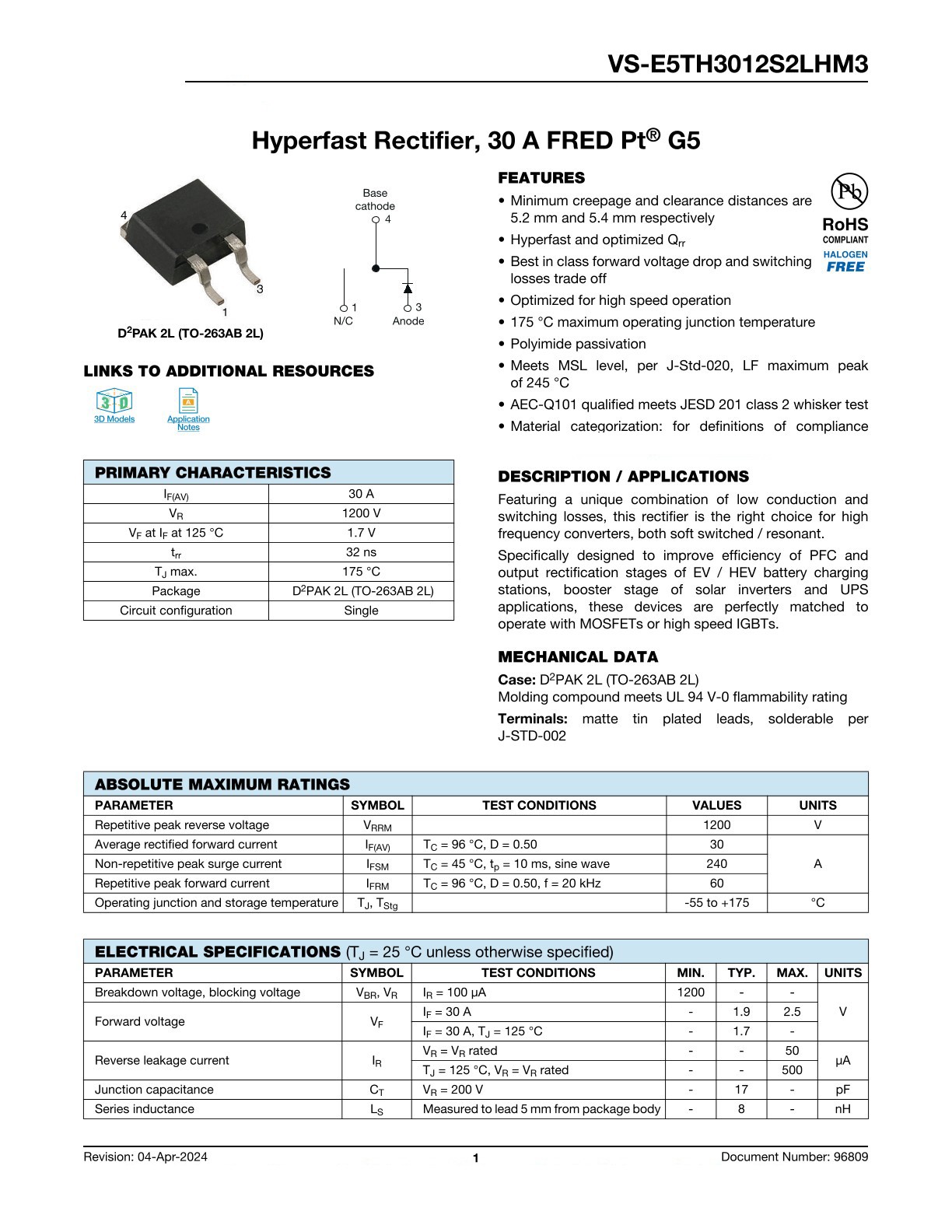

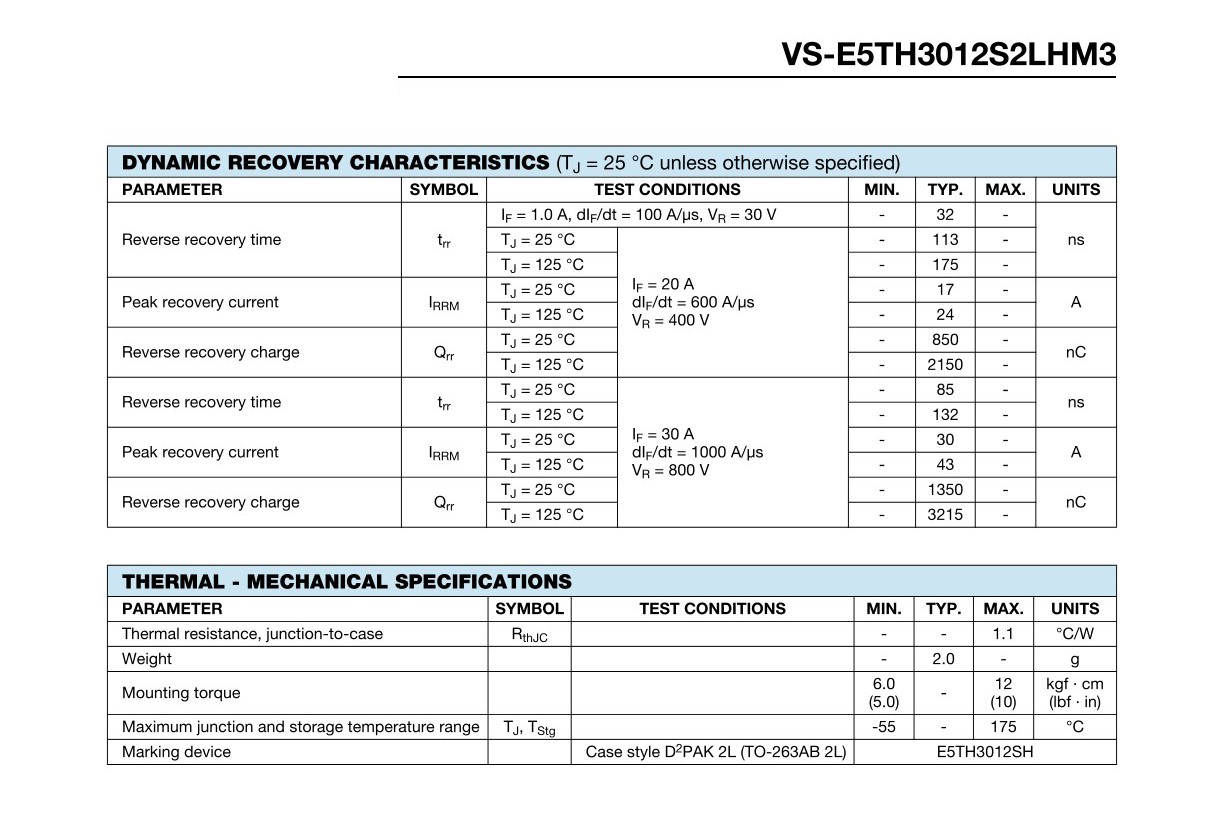

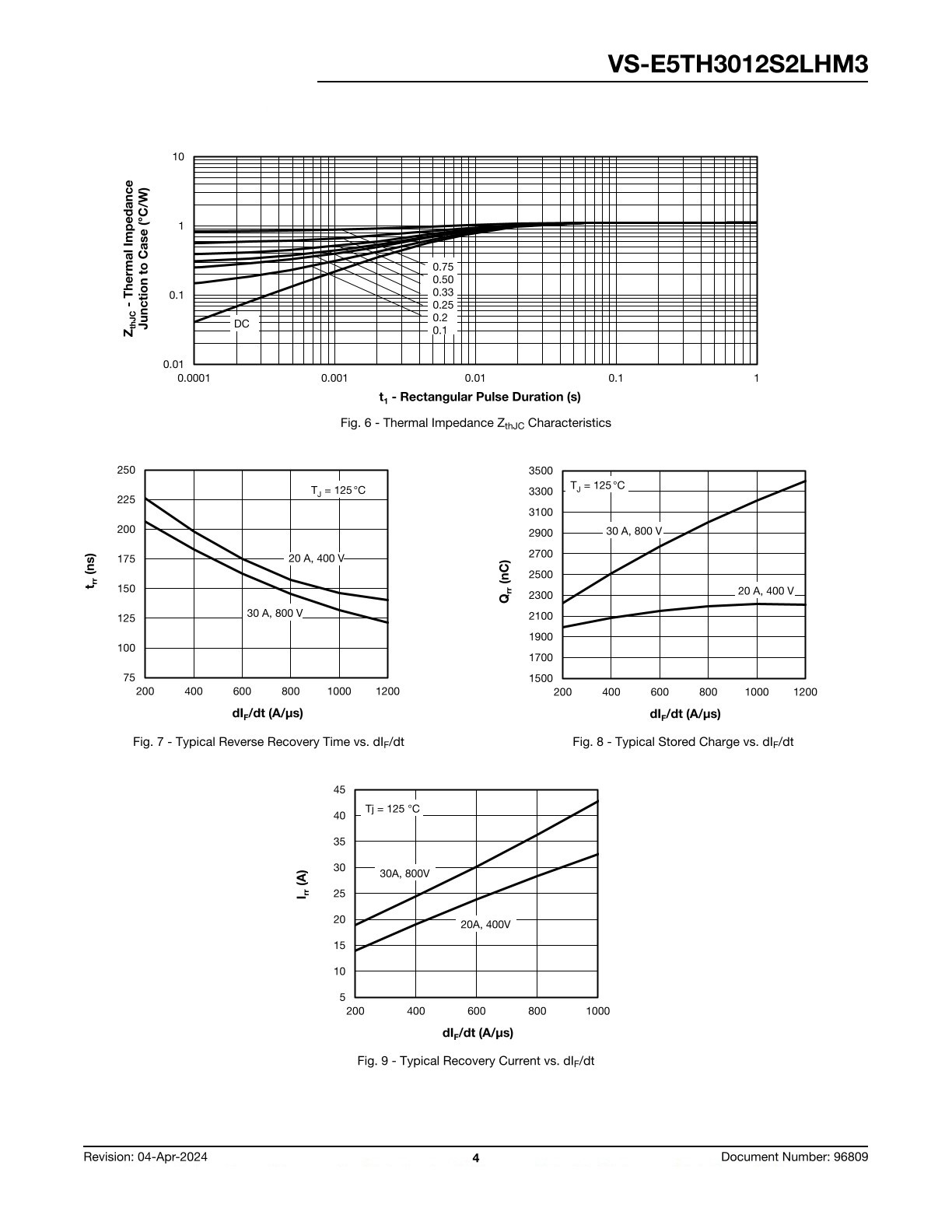

Product datasheet
For more information, please download
