Product Description
The 7443330220 is a high-performance, shielded, wirewound fixed inductor designed for surface-mount applications. This inductor features a ferrite core and is RoHS3 compliant, making it an excellent choice for a wide range of electronic designs.
Product Features
High current rating: 16.5A
Low DC resistance: 4.8mOhm max
High frequency self-resonant frequency: 80MHz
Compact size: 0.429L x 0.394W (10.90mm x 10.00mm)
Operating temperature range: -40°C to 125°C
Tolerance: ±20%
Shielded design for improved noise rejection
Product Applications
Primary applications: Power supplies, motor control circuits, and audio equipment
Secondary applications:
Telecommunications, medical devices, and industrial control systems
Embedded Modules:
This inductor is used in various embedded modules, including:
Power supply modules
Motor control modules
Audio processing modules
Product Description
Type | Description |
|---|---|
ANSC PART# | ANSC - 7443330220 |
Category | Inductors, Coils, Chokes Fixed Inductors |
Mfr | Würth Elektronik |
Series | WE-HCC |
Packaging | Tape & Reel (TR) Cut Tape (CT) |
Part Status | Active |
Type | Drum Core, Wirewound |
Material - Core | Ferrite |
Inductance | 2.2 µH |
Tolerance | ±20% |
Current Rating (Amps) | 16.5 A |
Current - Saturation (Isat) | 22A |
Shielding | Shielded |
DC Resistance (DCR) | 4.8mOhm Max |
Q @ Freq | - |
Frequency - Self Resonant | 80MHz |
Ratings | - |
Operating Temperature | -40°C ~ 125°C |
Inductance Frequency - Test | 100 kHz |
Mounting Type | Surface Mount |
Package / Case | Nonstandard |
Supplier Device Package | - |
Size / Dimension | 0.429" L x 0.394" W (10.90mm x 10.00mm) |
Height - Seated (Max) | 0.382" (9.70mm) |

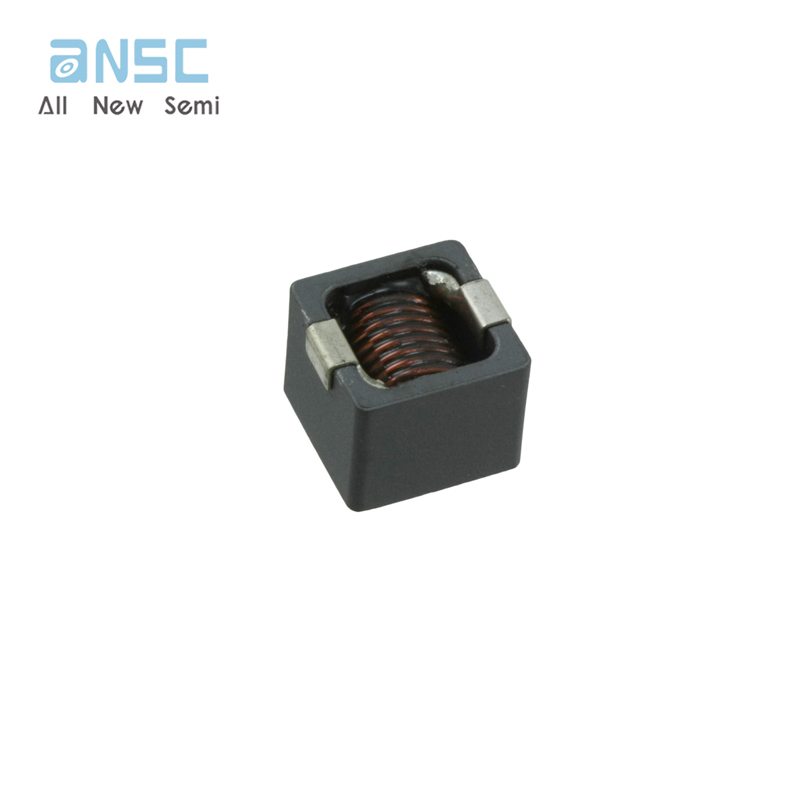

Actual image of the product

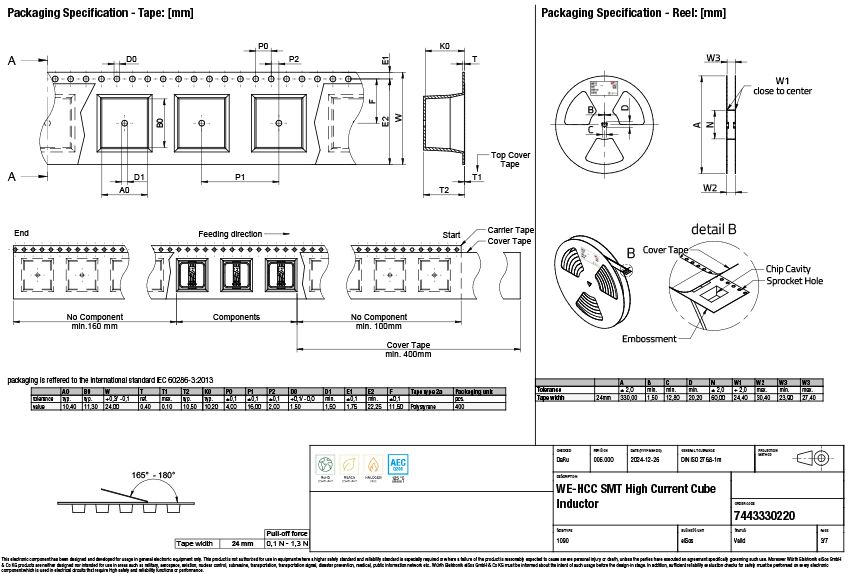

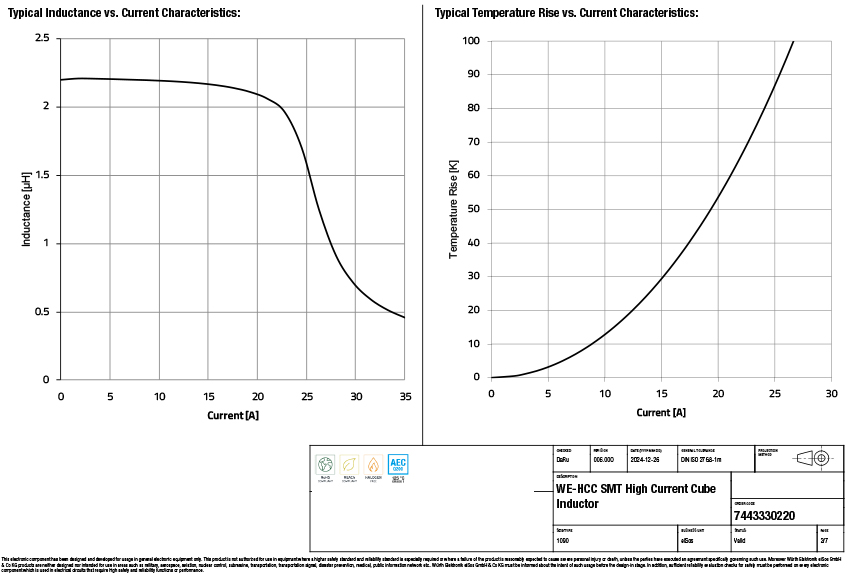

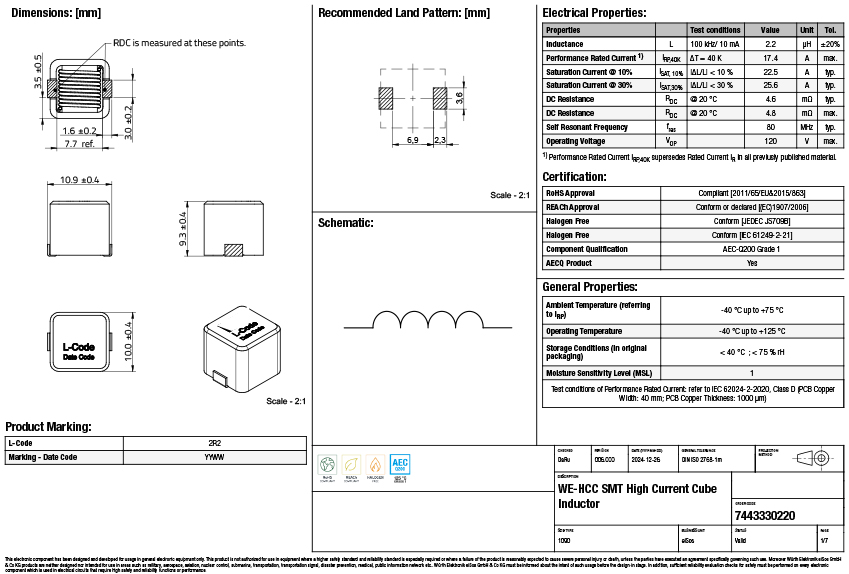

Product datasheet
For more information, please download
​
