Product Description: ADUM6132ARWZ Gate Driver Isolator

The ADUM6132ARWZ is a high-performance, general-purpose gate driver isolator designed by Analog Devices Inc. It is part of the IsoPower and iCoupler series, known for their robust isolation capabilities and high reliability. This device is specifically engineered to drive high-side gate drivers in various applications, ensuring efficient and reliable operation across a wide range of temperatures.

Product Features

High-Isolation Voltage: The ADUM6132ARWZ offers an impressive voltage isolation of up to 3750Vrms, making it suitable for demanding industrial and automotive applications.

High-Speed Operation: With a propagation delay of 60 ns and rise/fall times of 15 ns, this isolator ensures fast switching times, critical in high-frequency applications.

High-Side Driver Capability: Designed to drive high-side gate drivers, it supports voltages up to 17V, making it versatile for various power management systems.

Low Power Dissipation: The device has a maximum power dissipation of 275mW, ensuring efficient operation without overheating.

Wide Operating Temperature Range: Operating between -40°C and 85°C, this isolator can handle extreme temperature conditions commonly found in industrial environments.

Product Applications

Primary Applications:

Industrial Automation: The ADUM6132ARWZ is ideal for use in industrial automation systems where high isolation and fast switching times are crucial.

Automotive Systems: Its robust design and high voltage isolation make it suitable for automotive applications such as power management systems.

Medical Devices: The device's reliability and low power dissipation make it a good fit for medical devices requiring precise control.

Secondary Applications:

Telecommunications: Used in telecommunications equipment where high-speed data transfer and reliable operation are essential.

Renewable Energy Systems: The isolator's ability to handle high voltages makes it suitable for renewable energy systems like solar inverters.

Embedded Modules

The ADUM6132ARWZ can be integrated into various embedded systems including: - Industrial Control Systems: Integrated into PLCs (Programmable Logic Controllers) for controlling machinery. - Automotive Control Units: Used in automotive control units such as engine control modules (ECMs). - Medical Device Controllers: Embedded into medical device controllers for precise control over medical equipment.

In summary, the ADUM6132ARWZ is a reliable and efficient gate driver isolator designed to meet the demands of high-performance applications across multiple industries. Its robust isolation capabilities, fast switching times, and wide operating temperature range make it an excellent choice for various embedded systems requiring precise control and high reliability.

Product Description

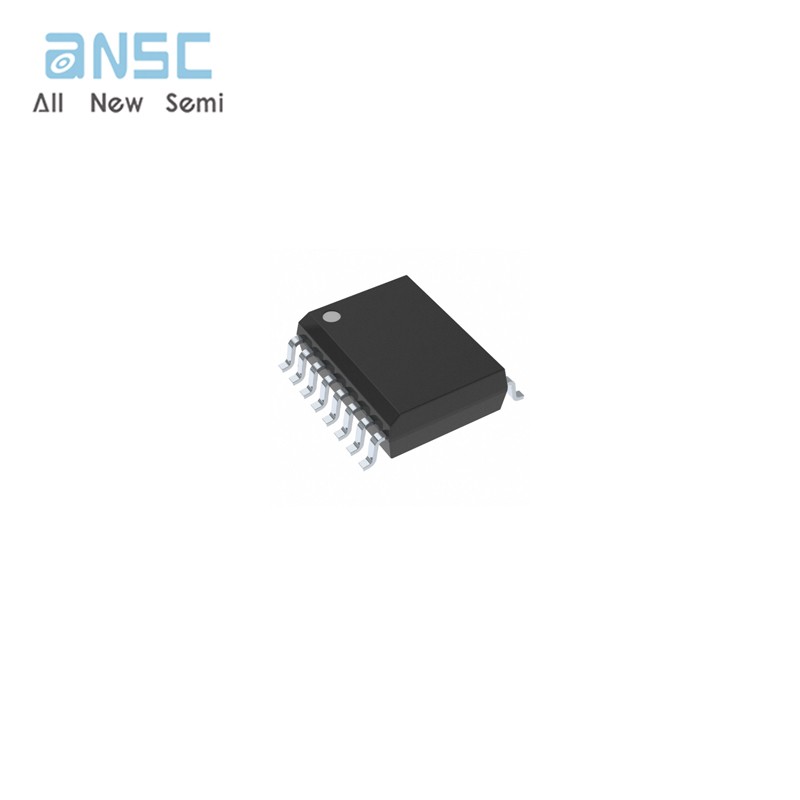

Actual image of the product

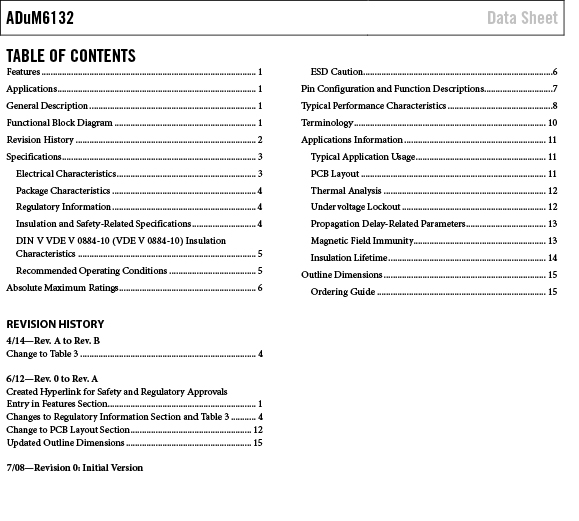

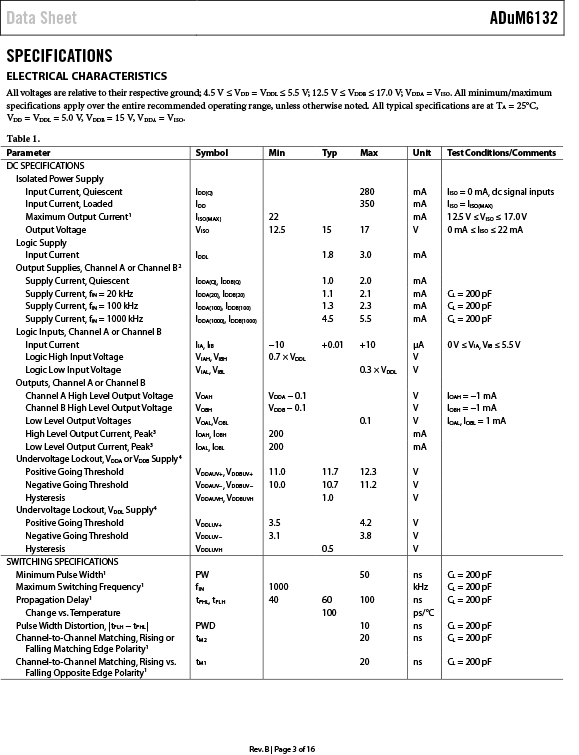

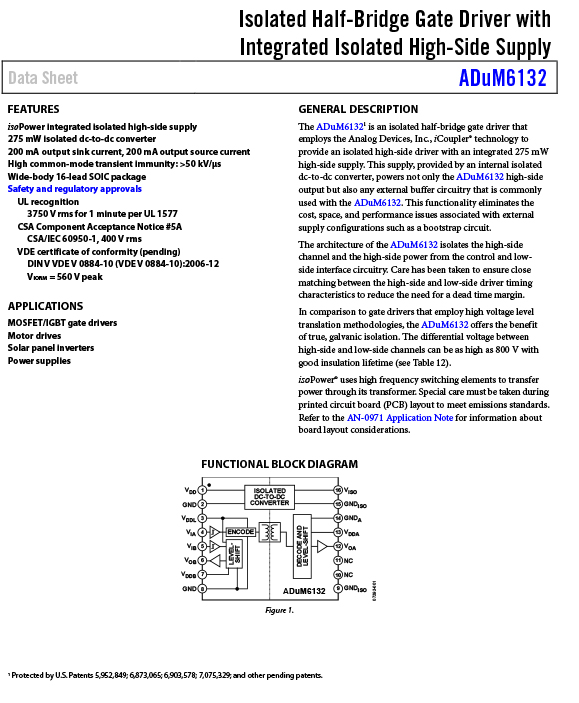

Product datasheet
