Product Description
The KTA1505S-Y-RTK/P is a high-performance, RoHS-compliant PNP transistor, designed for various electronic applications. This SOT-23-3 packaged transistor operates at a maximum voltage of 30V and can handle a maximum power of 150mW. With a maximum collector current of 500mA, it is suitable for a wide range of applications requiring high current and low power consumption.
Product Features
· High-voltage PNP transistor with a maximum voltage of 30V
· Low-power consumption with a maximum power of 150mW
· High-current capability with a maximum collector current of 500mA
· RoHS-compliant, ensuring environmental sustainability
· SOT-23-3 package for easy integration into various applications
Product Applications
· Primary applications:
· Switching and amplification in low-power circuits
· Driver circuits for small motors and relays
· Power supply and voltage regulation
· Secondary applications:
· Audio amplifiers and filters
· Power management and control circuits
· Industrial automation and control systems
Embedded Modules:
· This transistor is commonly used in various embedded modules, including:
· Motor driver modules
· Power supply modules
· Audio amplifier modules
Product Description
| Attribute | Attribute value |
| ANSC PART# | ANSC - KTA1505S-Y-RTK/P |
| Category | Triode/MOS Tube/Transistor/Bipolar Transistors |
| Collector Cut-Off Current (Icbo) | 100nA |
| Collector-Emitter Breakdown Voltage (Vceo) | 30V |
| Power Dissipation (Pd) | 150mW |
| DC Current Gain (hFE@Ic,Vce) | 70@100mA,1V |
| Collector Current (Ic) | 500mA |
| Transition Frequency (fT) | 200MHz |
| Collector-Emitter Saturation Voltage (VCE(sat)@Ic,Ib) | 100mV@100mA,10mA |
| Transistor Type | - |
| Operating Temperature | +150℃@(Tj) |
| Package / Case | SOT-23 |
| Package | Tape & Reel (TR) |

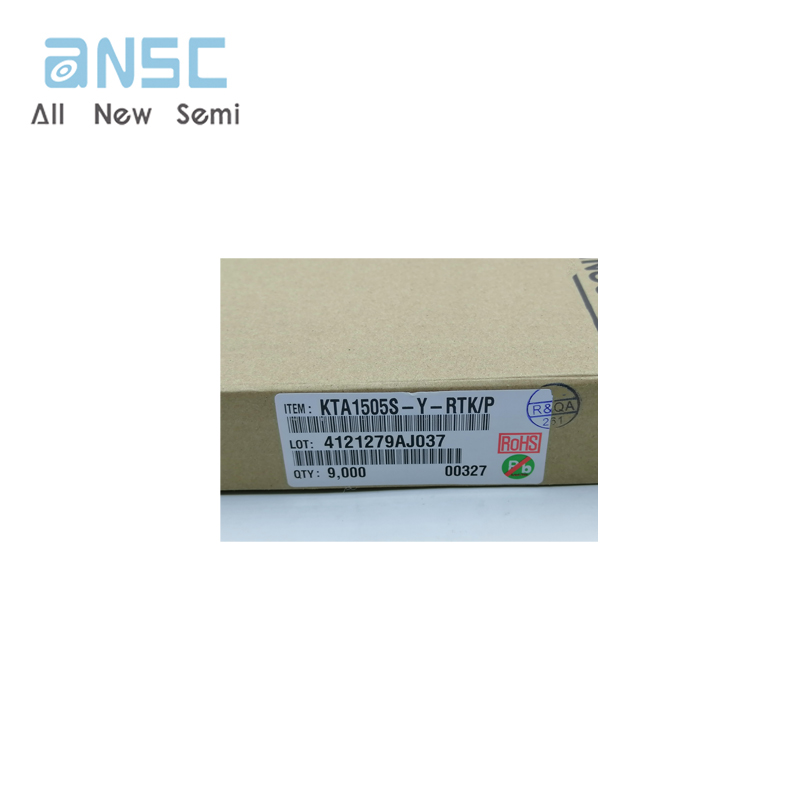

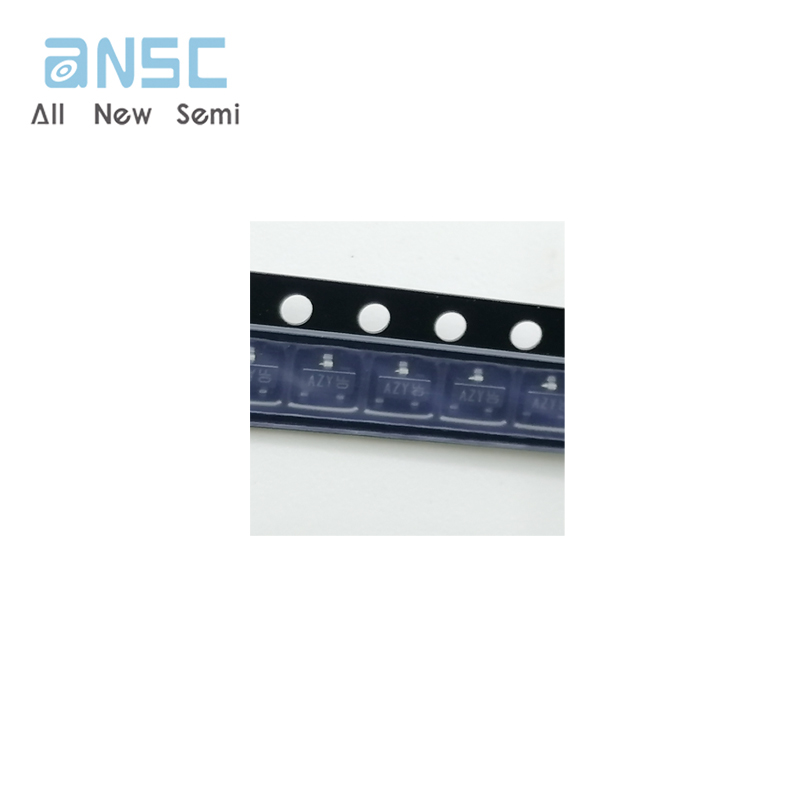

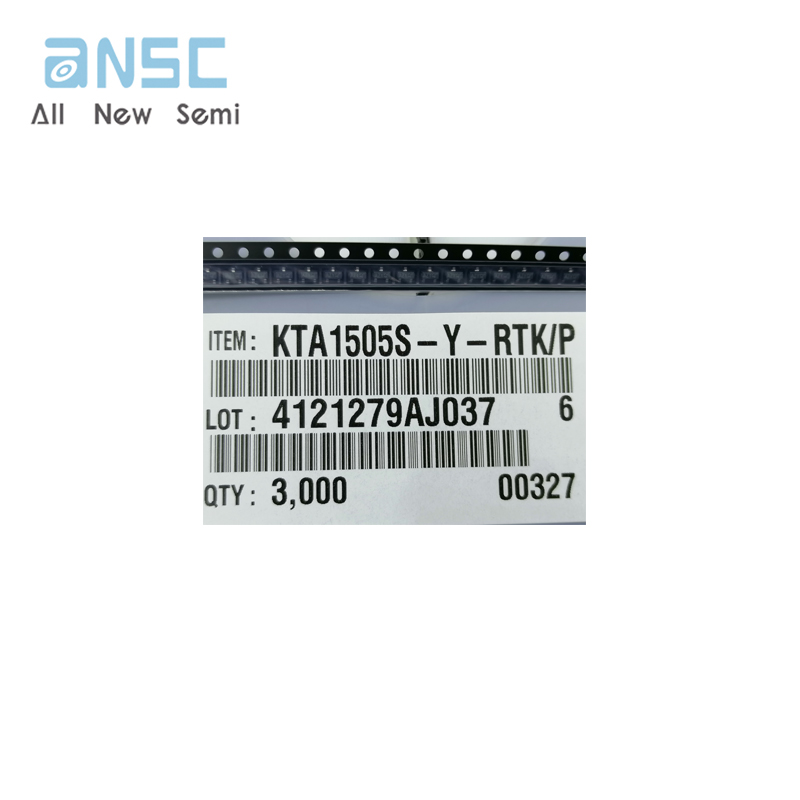

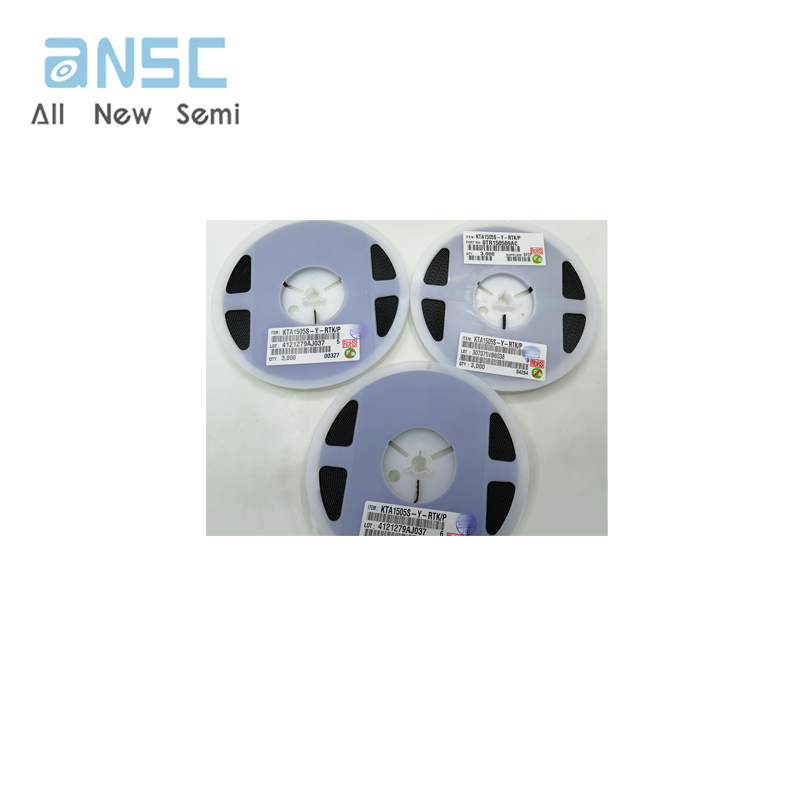

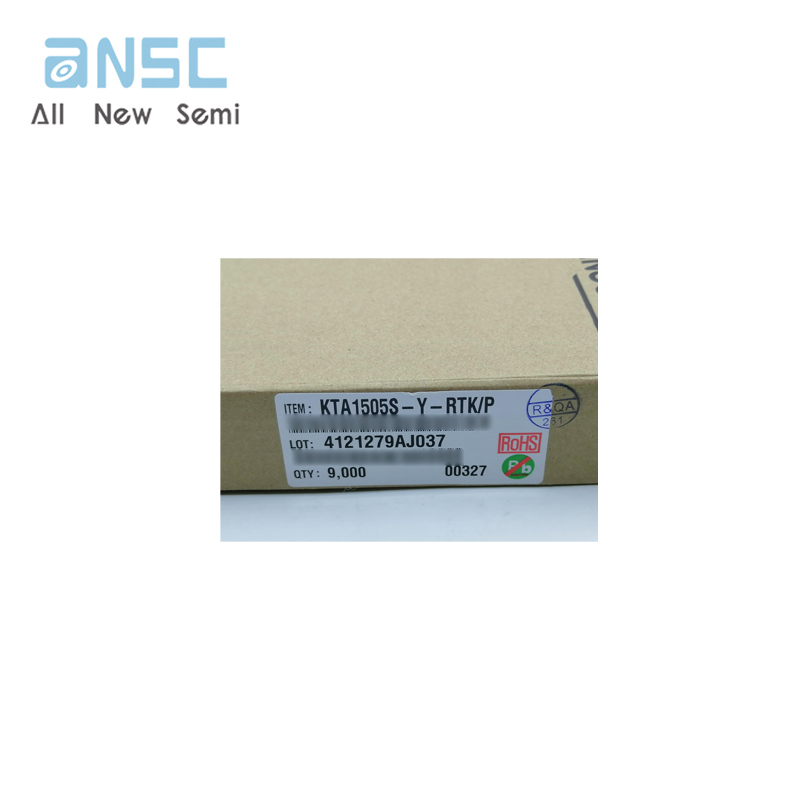

Actual image of the product

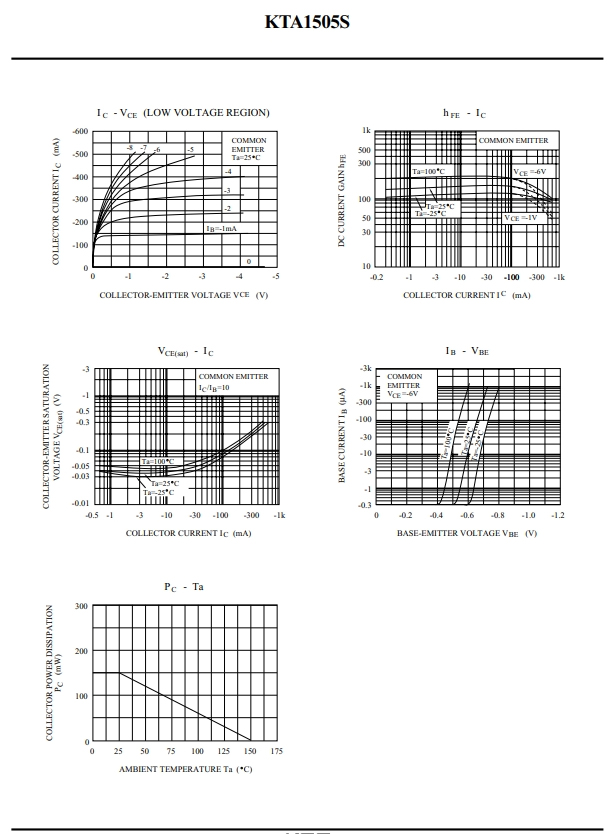

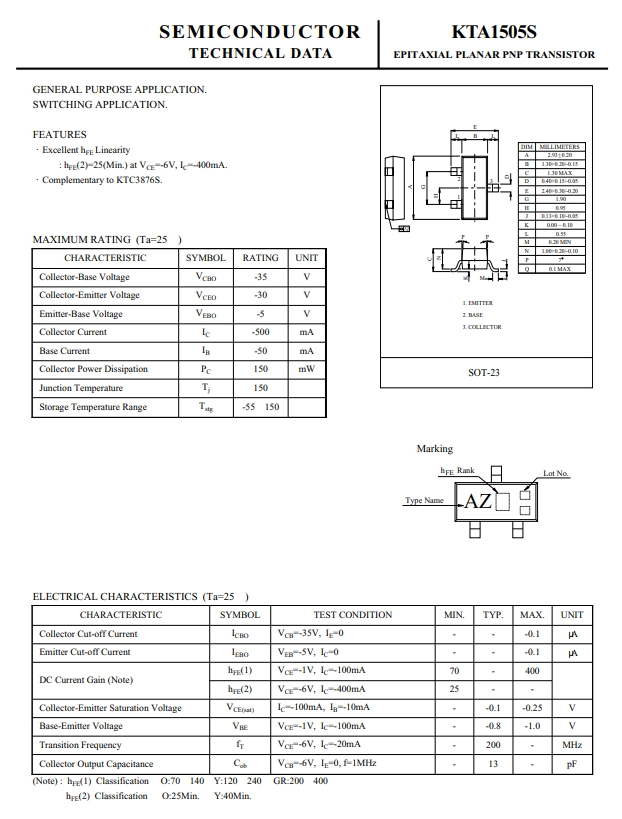

Product datasheet
For more information, please download
