Product Details
| GENERAL DESCRIPTION The ADT7301 is a complete temperature monitoring system available in SOT-23 and MSOP packages. It contains a band gap temperature sensor and a 13-bit ADC to monitor and digitize the temperature reading to a resolution of 0.03125°C. 13-bit temperature-to-digital converter −40°C to +150°C operating temperature range ±0.5°C typical accuracy 0.03125°C temperature resolution Shutdown current of 1 μA Power dissipation of 0.631 mW at VDD = 3.3 V SPI- and DSP-compatible serial interface Shutdown mode Space-saving SOT-23 and MSOP packages Compatible with AD7814 Medical equipment Automotive Environmental controls Oil temperature Hydraulic systems Cellular phones Hard disk drives Personal computers Electronic test equipment Office equipment Domestic appliances Process control |
Product Description
Type | Description |
|---|---|
ANSC PART# | ANSC - ADT7301ARTZ-500RL7 |
Category | Sensors, Transducers Temperature Sensors Analog and Digital Output |
Manufacturer | - |
Series | - |
Packaging | Tape & Reel (TR) Cut Tape (CT) |
Part Status | Active |
Sensor Type | Digital, Local |
Sensing Temperature - Local | -40°C ~ 150°C |
Sensing Temperature - Remote | - |
Output Type | SPI |
Voltage - Supply | 2.7V ~ 5.25V |
Resolution | 13 b |
Features | Shutdown Mode, Standby Mode |
Accuracy - Highest (Lowest) | ±1°C (±4°C) |
Test Condition | 0°C ~ 70°C (-40°C ~ 150°C) |
Operating Temperature | -40°C ~ 150°C |
Mounting Type | Surface Mount |
Package / Case | SOT-23-6 |
Supplier Device Package | SOT-23-6 |
Base Product Number | ADT7301 |

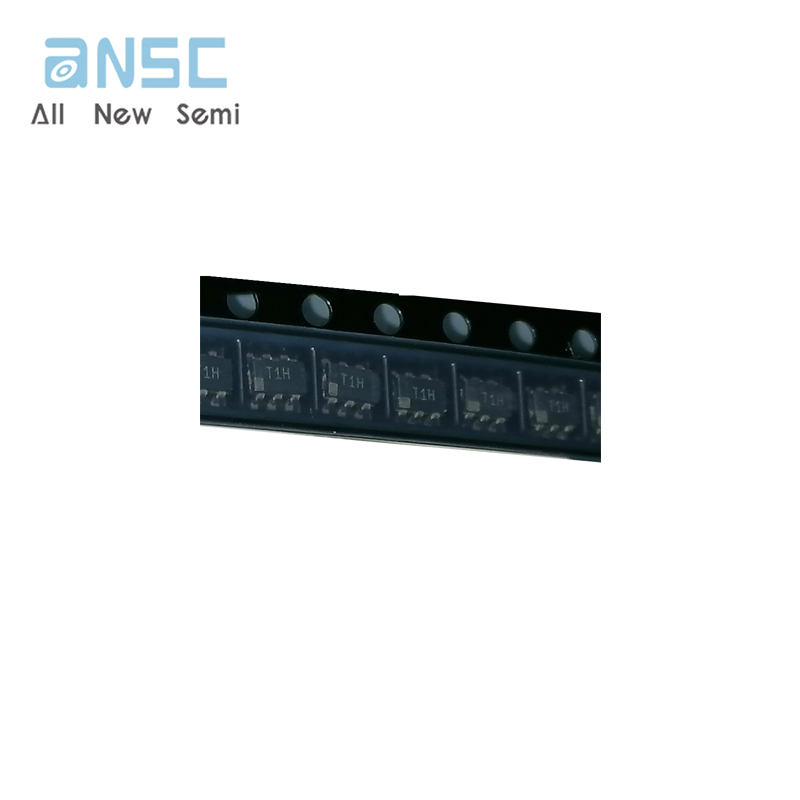

Product Photos

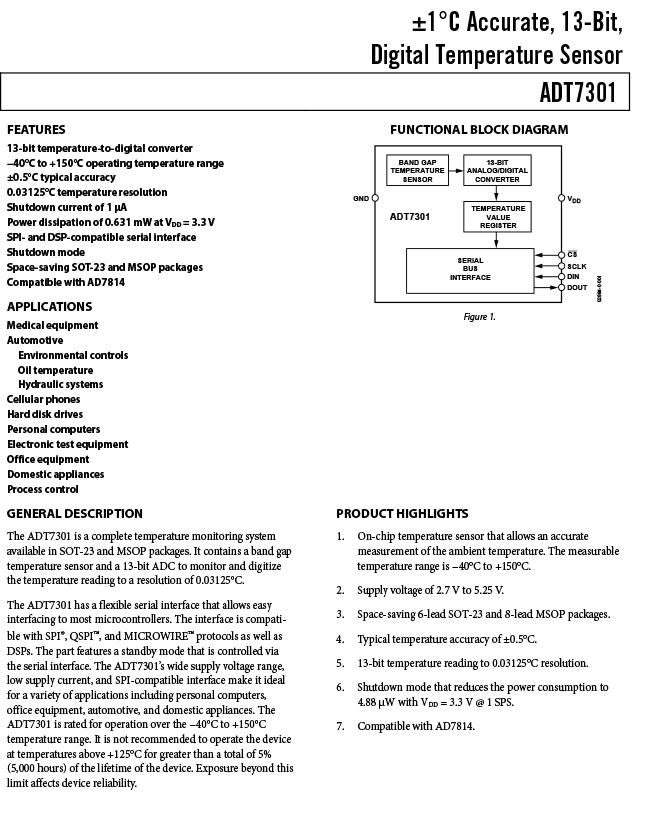

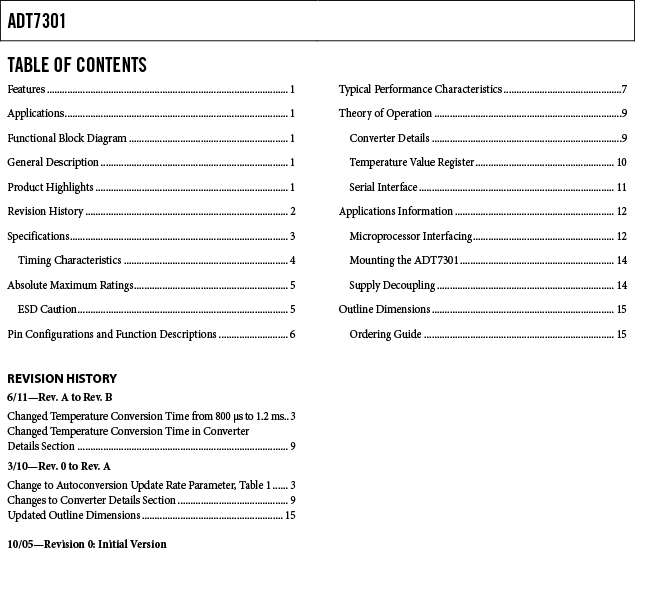

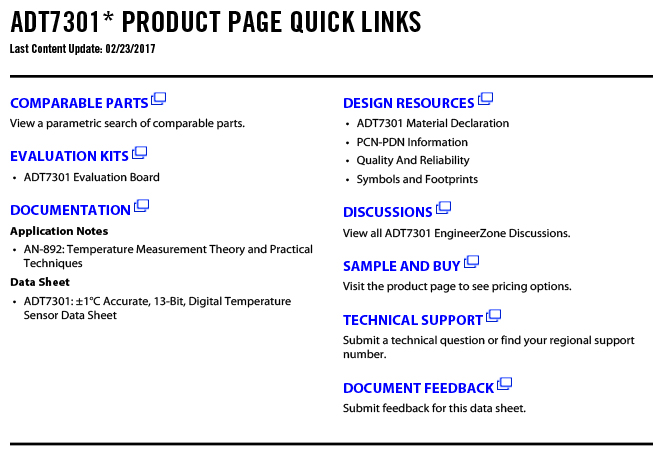

Product datasheet
For more information, please download
