Product Overview
As a result, this device has a rectified current of 500mA volts on average.A device like this produces no heat as a secondary effect of its primary operation.Phase diode rectifier is permissible for forward current to reach 500mA.330mW heat is lost most efficiently by electronic or electrical devices.Fuse elements have an indefinite life expectancy of 500mA, which is the maximum current that the fuse can carry for an indefinite period of time.Phase diode rectifier is possible for a capacPhase diode rectifierance-based device to output a value of 20pF.Based on the data charts in the datasheets, the peak reverse is 40μA.
Product Features
an average rectified current of 500mA volts
the least amount of 330mW heat (energy loss)
a current rating of 500mA
the peak reverse is 40μA
Product Applications
ZHCS500TA applications of single-phase diode rectifier.
-
DC motor control and drives
-
Battery chargers
-
Welders
-
Power converters
-
Reverse Polarity Protection
-
Ultra High-Speed Switching
-
Freewheeling
-
Polarity Protection Diode
-
Recirculating Diode
-
Switching Diode
Product Description
|
Type |
Description |
|---|---|
| ANSC PART# | ANSC - ZHCS500TA |
|
Category |
Discrete Semiconductor Products Diodes Rectifiers Single Diodes |
|
Mfr |
- |
|
Series |
- |
|
Packaging |
Tape & Reel (TR) Cut Tape (CT) |
|
Part Status |
Active |
|
Technology |
Schottky |
|
Voltage - DC Reverse (Vr) (Max) |
40 V |
|
Current - Average Rectified (Io) |
500mA |
|
Voltage - Forward (Vf) (Max) @ If |
550 mV @ 500 mA |
|
Speed |
Fast Recovery =< 500ns, > 200mA (Io) |
|
Reverse Recovery Time (trr) |
10 ns |
|
Current - Reverse Leakage @ Vr |
40 µA @ 30 V |
|
Capacitance @ Vr, F |
20pF @ 25V, 1MHz |
|
Mounting Type |
Surface Mount |
|
Package / Case |
TO-236-3, SC-59, SOT-23-3 |
|
Supplier Device Package |
SOT-23-3 |
|
Operating Temperature - Junction |
125°C (Max) |
|
Base Product Number |
ZHCS500 |

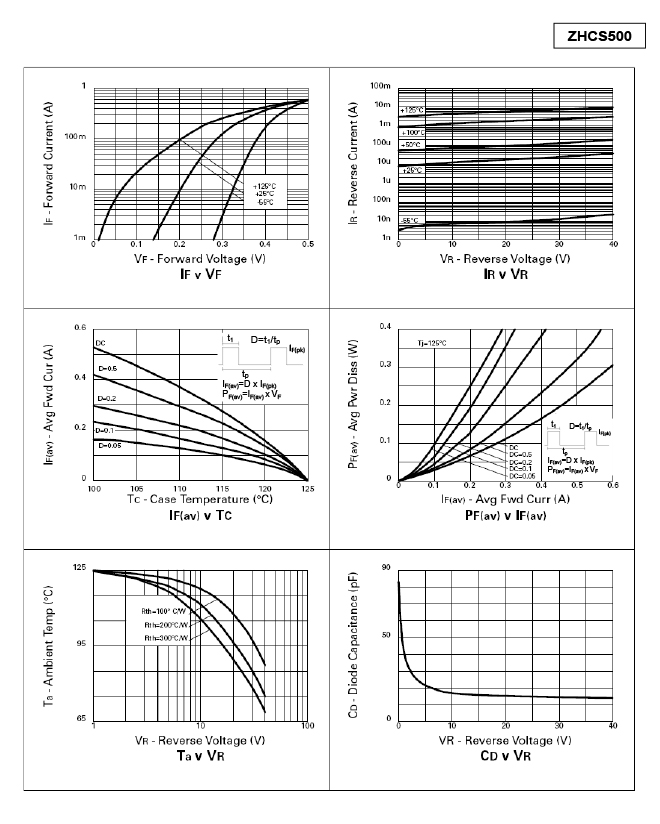

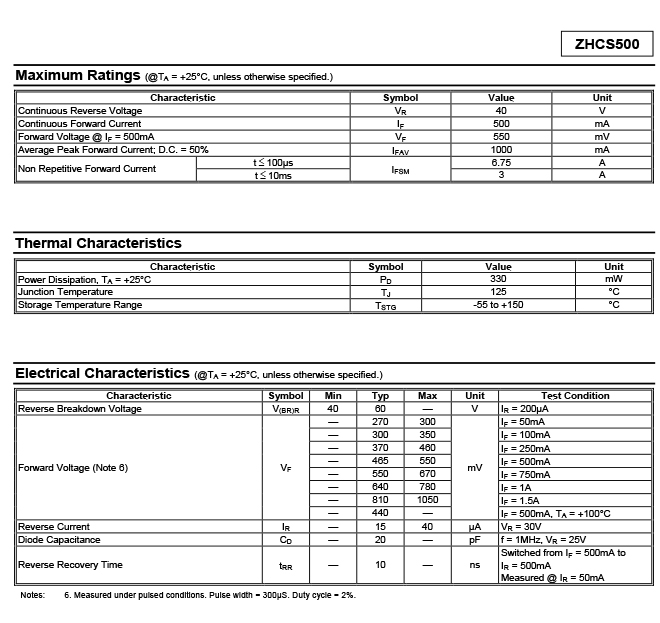

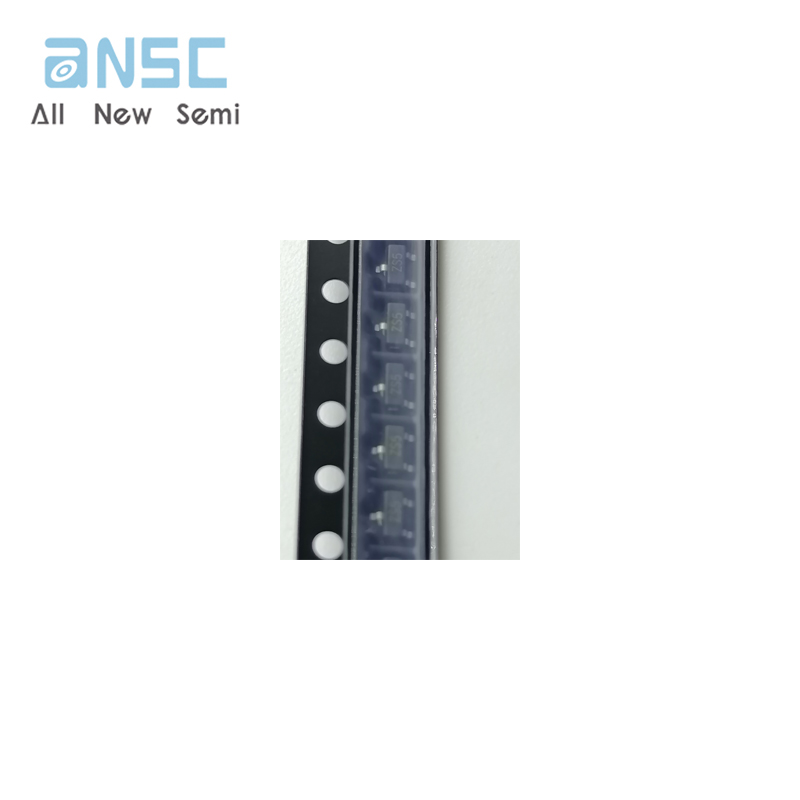

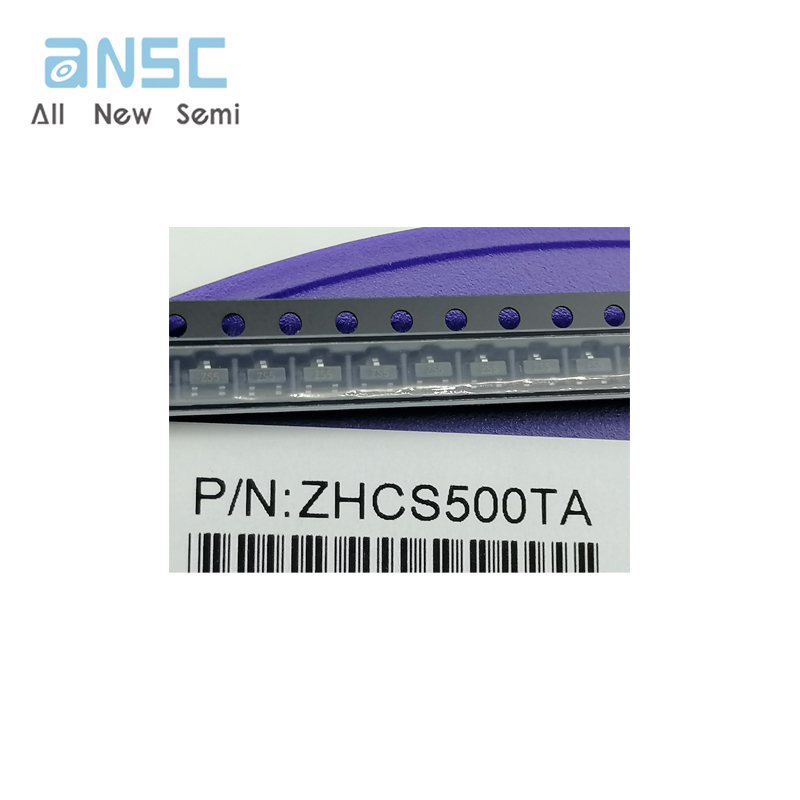

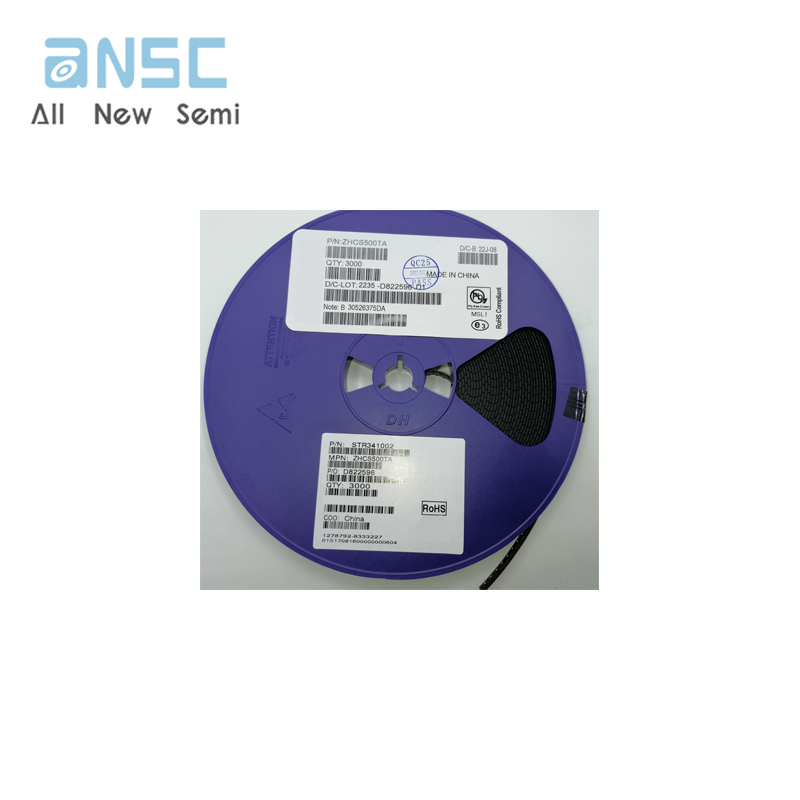

Actual image of the product

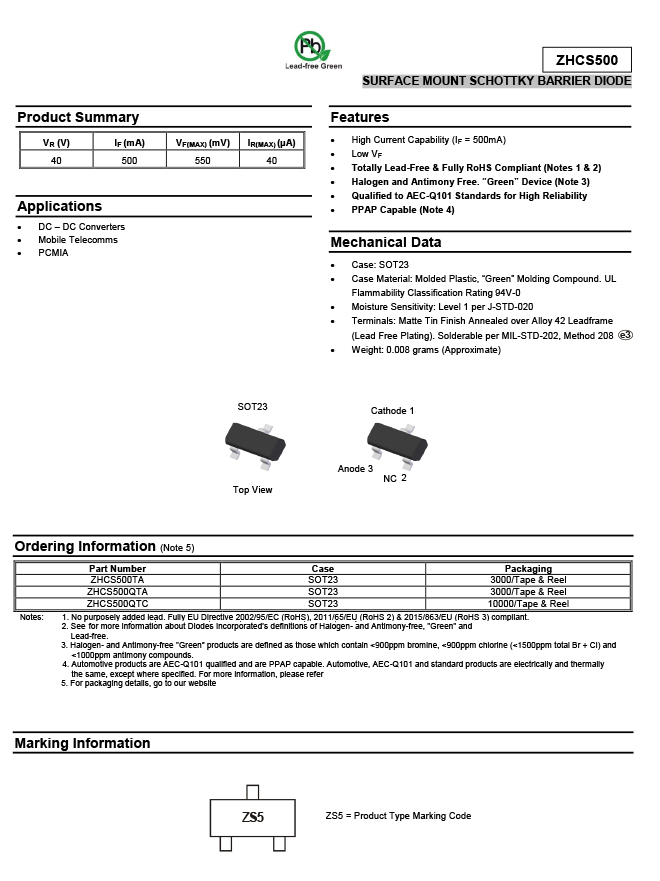

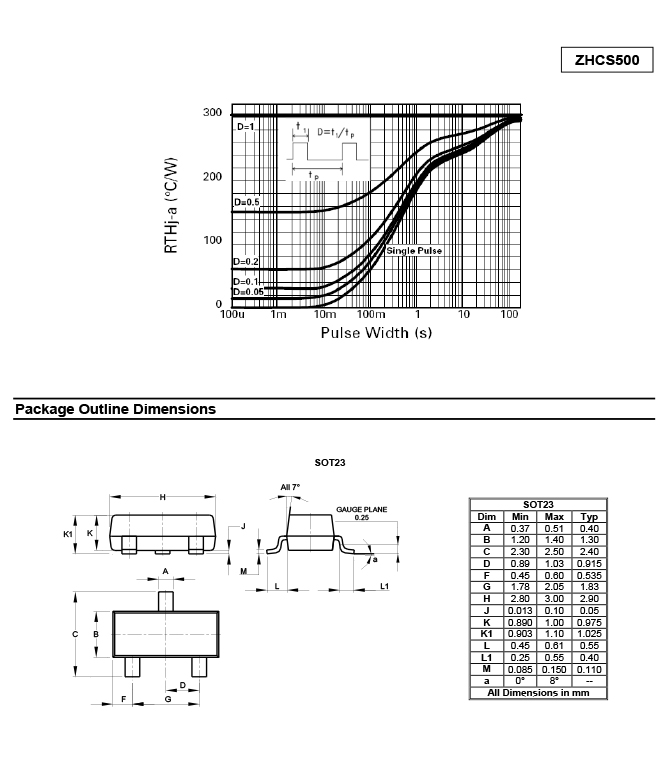

Product datasheet
For more information, please download
