Product Details
Features
■ Compatible with automatic insertion equipment
■ Superior package integrity
■ Marking on contrasting background for permanent identification
Product Description
|
Type |
Description |
|---|---|
|
Category |
Resistors Resistor Networks, Arrays |
|
Manufacturer |
- |
|
Series |
4100R |
|
Packaging |
Tube |
|
Part Status |
Active |
|
Circuit Type |
Isolated |
|
Resistance (Ohms) |
1k |
|
Tolerance |
±2% |
|
Number of Resistors |
8 |
|
Resistor Matching Ratio |
- |
|
Resistor-Ratio-Drift |
50ppm/°C |
|
Number of Pins |
16 |
|
Power Per Element |
250mW |
|
Temperature Coefficient |
±100ppm/°C |
|
Operating Temperature |
-55°C ~ 125°C |
|
Grade |
- |
|
Qualification |
- |
|
Applications |
- |
|
Mounting Type |
Through Hole |
|
Package / Case |
16-DIP (0.300", 7.62mm) |
|
Supplier Device Package |
16-DIP |
|
Size / Dimension |
0.865" L x 0.300" W (21.97mm x 7.62mm) |
|
Height - Seated (Max) |
0.185" (4.69mm) |
|
Base Product Number |
4116R |

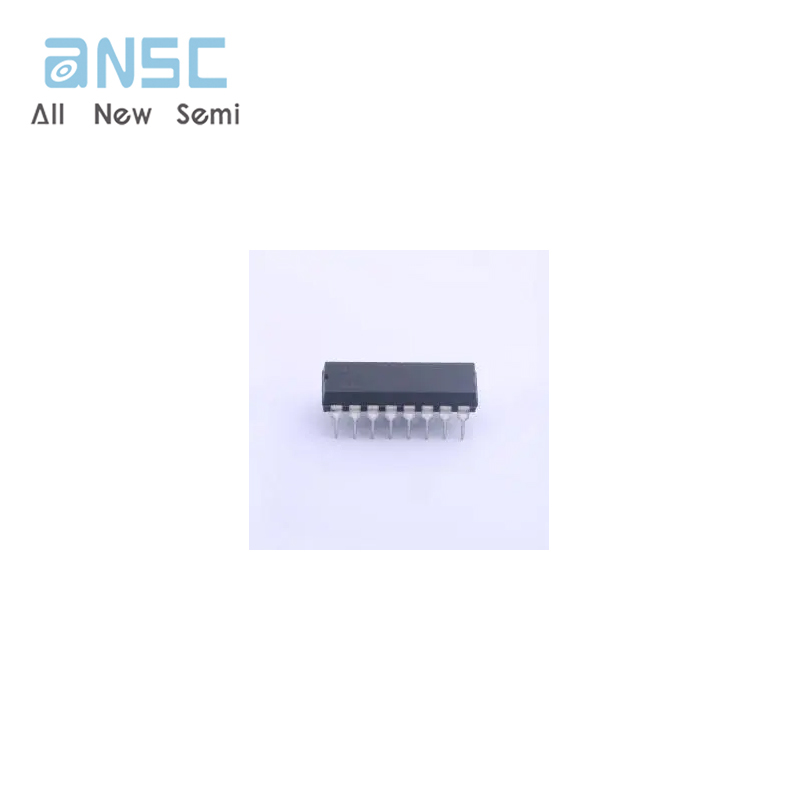

Actual image of the product
